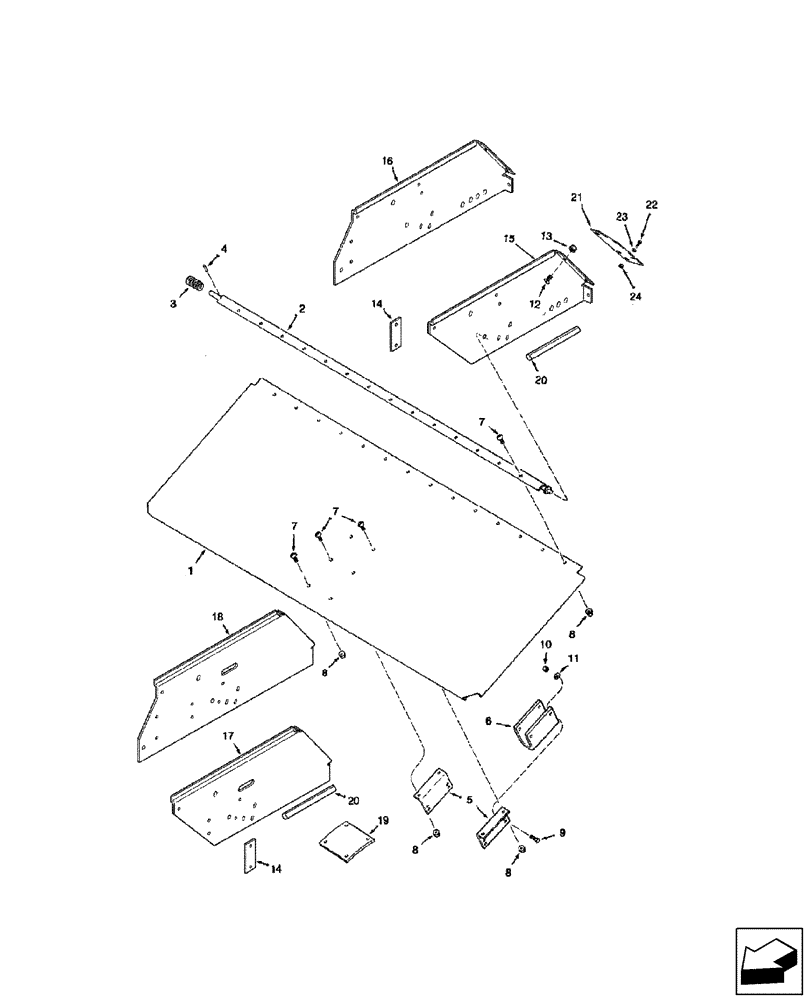

Запчасти Case IH 2577 (90.114.09) - AXLE, STEERING - SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

1325597C2

SHIELD

Steering Axle

1шт.

With Straw Spreader

1шт.

1a

87485973

DOOR

Steering Axle (Not Shown)

1шт.

With Straw and Chaff Spreader

1шт.

2

188176C1

SUPPORT

1шт.

3

203942C1

SPRING

1шт.

4

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1шт.

5

183093C1

BRACKET

2шт.

6

183094C1

CUSHION

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

232-4115

LOCK NUT,5/16"-18, GC

4шт.

11

495-11034

WASHER,5/16", SAE

4шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

1325376C1

PLATE

Hood Extension

2шт.

15

428291A1

PLATE

Hood Extension, RH

1шт.

With Straw Spreader

1шт.

16

87307501

PLATE

Hood Extension, RH

1шт.

With Straw and Chaff Spreader

1шт.

17

1322478C6

PLATE

Hood Extension, LH

1шт.

With Straw Spreader

1шт.

18

87705901

PLATE

Hood Extension, LH

1шт.

With Straw and Chaff Spreader

1шт.

19

1345126C1

CUSHION

1шт.

20

1968976C1

SEALING STRIP

2шт.

21

316715A1

SEAL

Rubber, Hood Extension

2шт.

Used with 1322478C6

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

23

495-21044

WASHER,3/8"

2шт.

24

231-4146

NUT,3/8"-16, GB

2шт.
