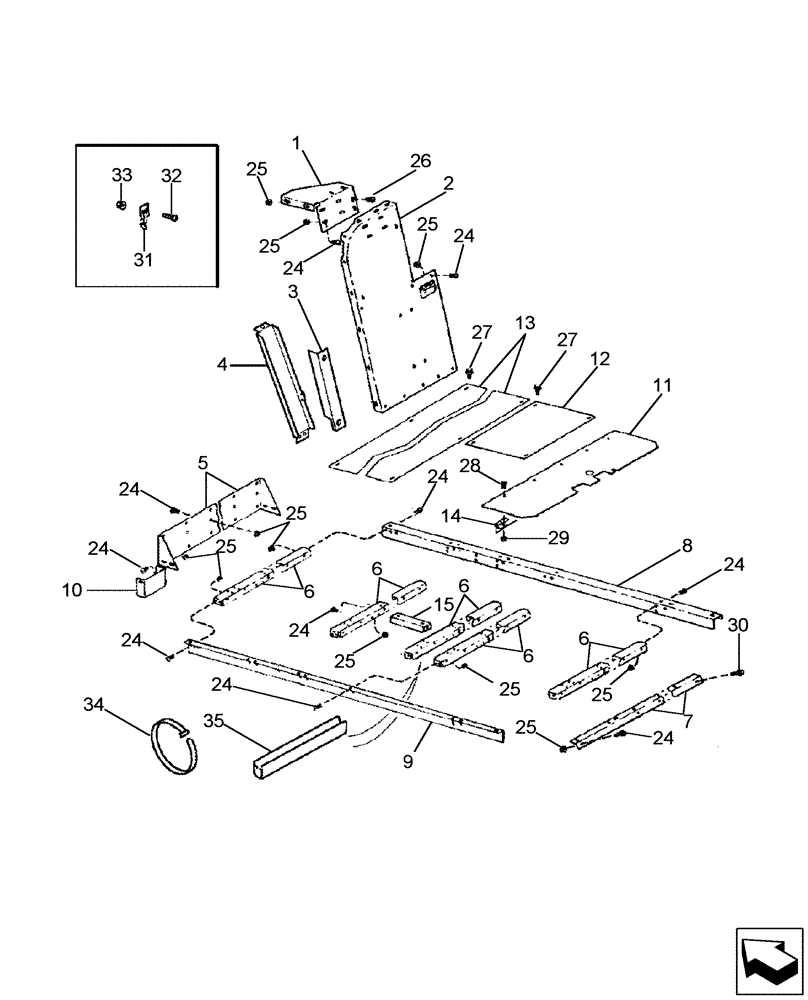

Запчасти Case IH 2577 (90.102.02) - ENGINE SHIELDS AND SERVICE DECK SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

1330481C2

SUPPORT

LH Rear

1шт.

2

1330482C3

SUPPORT

LH Rear

1шт.

3

237716A1

BRACKET

1шт.

4

237714A1

SUPPORT

Rear

1шт.

5

193435C3

SUPPORT

1шт.

6

192959C6

SUPPORT

5шт.

7

304310A1

SUPPORT

Rear

1шт.

8

192961C7

SUPPORT

RH

1шт.

9

304309A2

SUPPORT

LH

1шт.

10

186105C1

CHANNEL

Upper LH Rear

1шт.

11

1977155C3

DOOR

3шт.

12

1979827C2

PLATE

1шт.

13

1979828C2

PLATE

Front

1шт.

14

186695C1

HINGE

3шт.

15

1979830C1

SUPPORT

1шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

26

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

27

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

10шт.

28

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

30шт.

28

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

32шт.

30

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

31

167800C1

CLIP

4шт.

32

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

33

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

34

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

35

1327979C1

MOLDING

152 mm (6"), Cut from 1330108CX

1шт.
