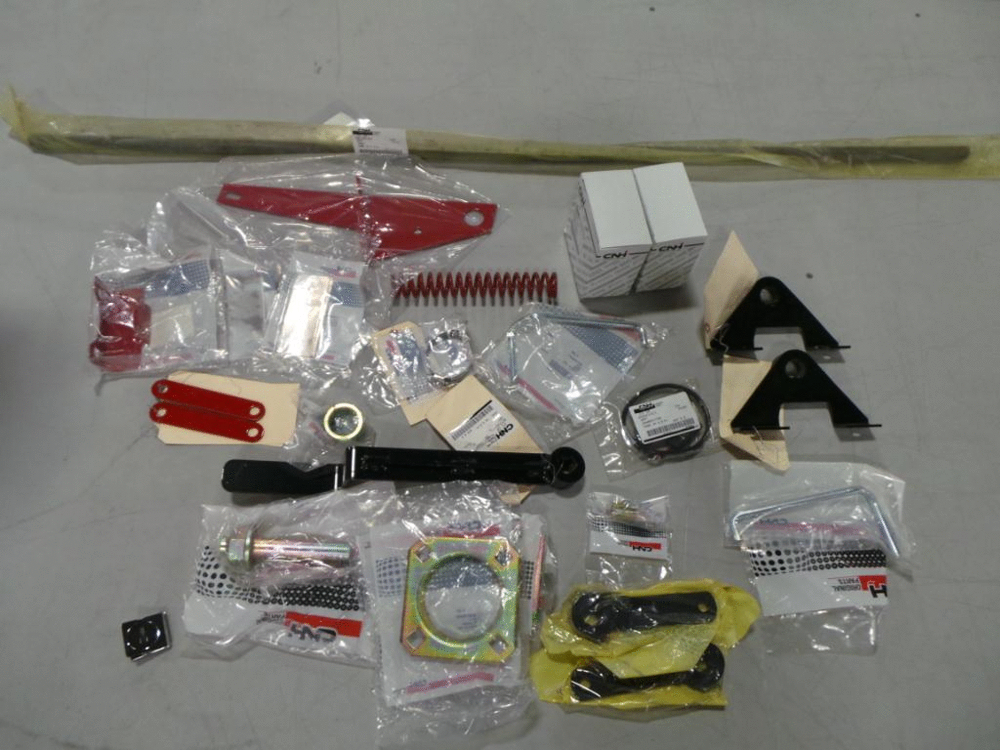

Запчасти Case IH 2577 (88.230.02[01]) - 47818084 47818084 47818084 KIT CHOPPER PARTS (88) - ACCESSORIES

1

47818084

KIT

Incl 2 - 19

1шт.

2

87614520

SPACER

Straw Chopper Rotor Shaft RH

1шт.

3

47624986

BALL BEARING

2шт.

4

86979948

FLANGE

4шт.

5

245410C1

TRANSMITTER

Monitor Chopper Shaft

1шт.

6

178799C1

CLAMP,44.45mm - 63.5mm

1шт.

7

1302709C1

SHIM,50.8mm OD x 0.66mm Thk

Chopper Drive Shim

2шт.

8

87036416

SPACER,13.51mm ID x 19.05mm OD x 26.97mm L

1шт.

9

1315260C1

BOLT

Tension Rod

1шт.

10

1315247C1

SPRING

1шт.

11

144706A4

SUPPORT

Sensor

1шт.

12

391218A1

STRAP

Chopper Adjustment

2шт.

13

391221A1

SHAFT

Chopper Adjustment

1шт.

14

391222A1

ROD

Chopper Adjustment

1шт.

15

87379134

SUPPORT ASSY.

Chopper Adjustment

1шт.

16

391230A1

PIVOT

Chopper Adjustment

2шт.

17

395513A1

ROD

Chopper Adjustment RH

1шт.

18

396337A1

PLATE

Chopper Adjustment Dent.

1шт.

19

47818074

HANDLE

Control Shaft Assy Chopper Dent.

1шт.
