Запчасти Case IH 2577 (80.180.10) - UNLOADER - UPPER GEAR HOUSING (80) - CROP STORAGE/UNLOADING

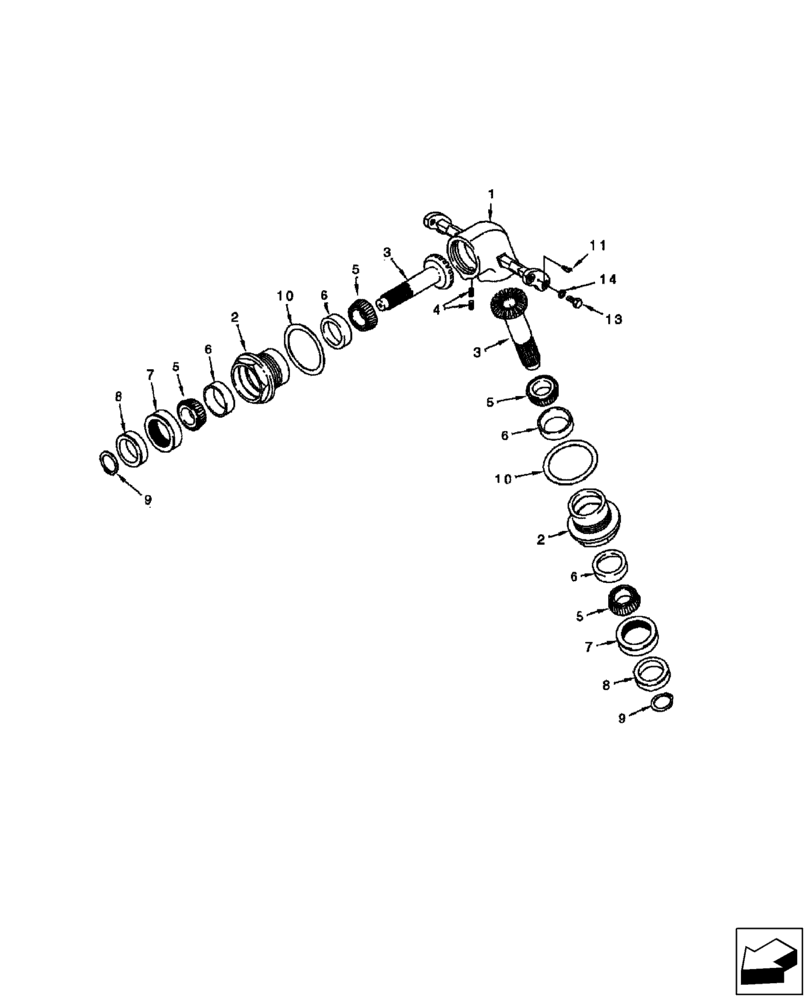

Схема запчастей Case IH 2577 - (80.180.10) - UNLOADER - UPPER GEAR HOUSING (80) - CROP STORAGE/UNLOADING
9
5
1
7
3
5
5
11
14
2
10
5
8
6
2
9
13
4
6
7
8
3
10
6
6

Артикул

Название

Примечание

Количество

1347351C2

GEARBOX,Bearing, Upper Unloading Assembly

Incl 1 - 10

1шт.

1347351C2R

REMAN-GEARBOX

2577 AXIAL-FLOW COMBINE ASN HAJ0300001 (10/06-)

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, Upper Gears

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, Gear Bearing

2шт.

3

1347260C1

PINION

18 T

2шт.

4

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

4шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

4шт.

6

651817R1

BEARING CUP

4шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

7

1347339C1

SEAL,44.45mm ID x 62.1mm OD x 6.35mm Thk

2шт.

8

1347312C1

RETAINER

2шт.

9

100-16125

SNAP RING,#125, Ext

2шт.

10

1347338C1

SHIM,76.45mm ID x 96mm OD x 0.1mm Thk

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 17
