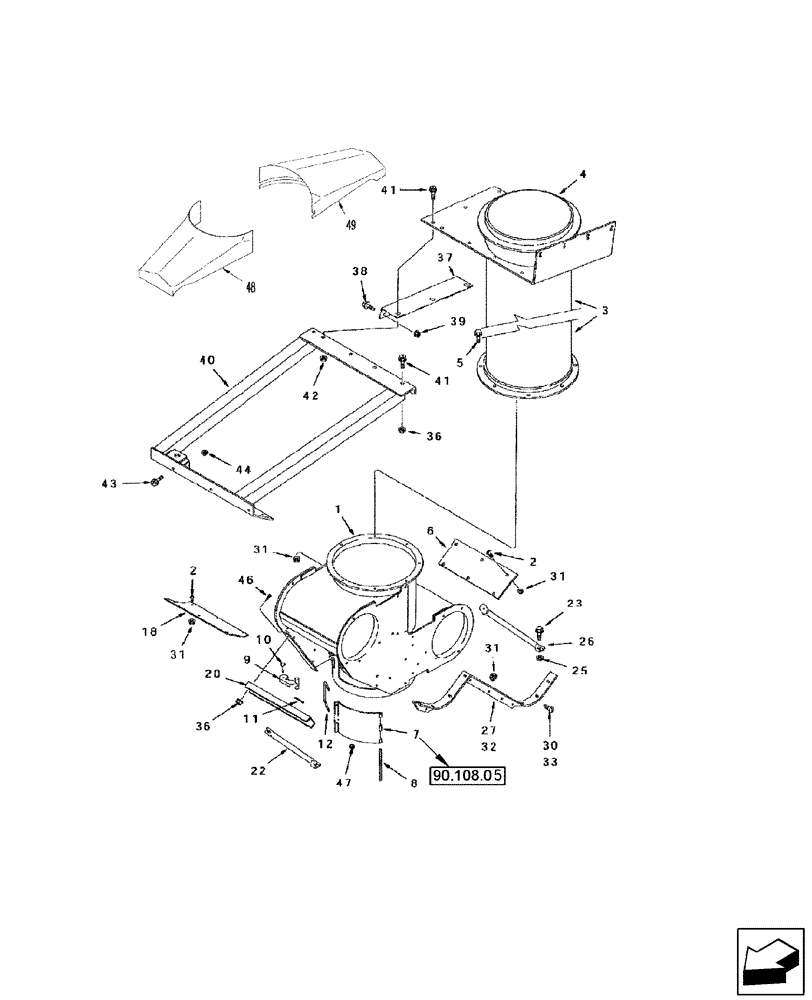

Запчасти Case IH 2577 (80.180.01) - UNLOADER HOUSING - GRAIN TANK, LOWER (80) - CROP STORAGE/UNLOADING

1

192475C3

HOUSING

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

28шт.

3

87593313

TUBE,647.7 mm L

Incl 4, 4A

1шт.

4

87608683

ELBOW-CONNECTION

ELBOW-CONECTION

1шт.

4a

49-516

RIVET,Tr Hd, 5/16" x 1"

(Not Shown)

23шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

6

191087C1

PLATE

Front

1шт.

7

189284A1

DOOR

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

1шт.

9

155909C1

LATCH

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT "U"

1шт.

18

191110C1

COVER

Rear

1шт.

20

192834C1

CHANNEL

1шт.

22

191112C2

ROD

1шт.

23

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

191111C3

ROD

1шт.

27

192828C1

SUPPORT

LH

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

20шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

58шт.

32

192829C1

SUPPORT

RH

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

36

231-5146

FLANGE NUT,3/8"-16

9шт.

37

1338393C2

ANGLE

1шт.

38

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

87525898

SUPPORT

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

42

231-5146

FLANGE NUT,3/8"-16

10шт.

43

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

6шт.

43

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

1шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

47

231-1444

NUT,1/4"-20, GB

2шт.

48

434785A1

INSERT

Unloader Sump, Front

1шт.

49

434786A1

INSERT

Unloader Sump, Rear

1шт.

50

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

Seal, 500 mm (19-3/4") (Not Shown)

2шт.
