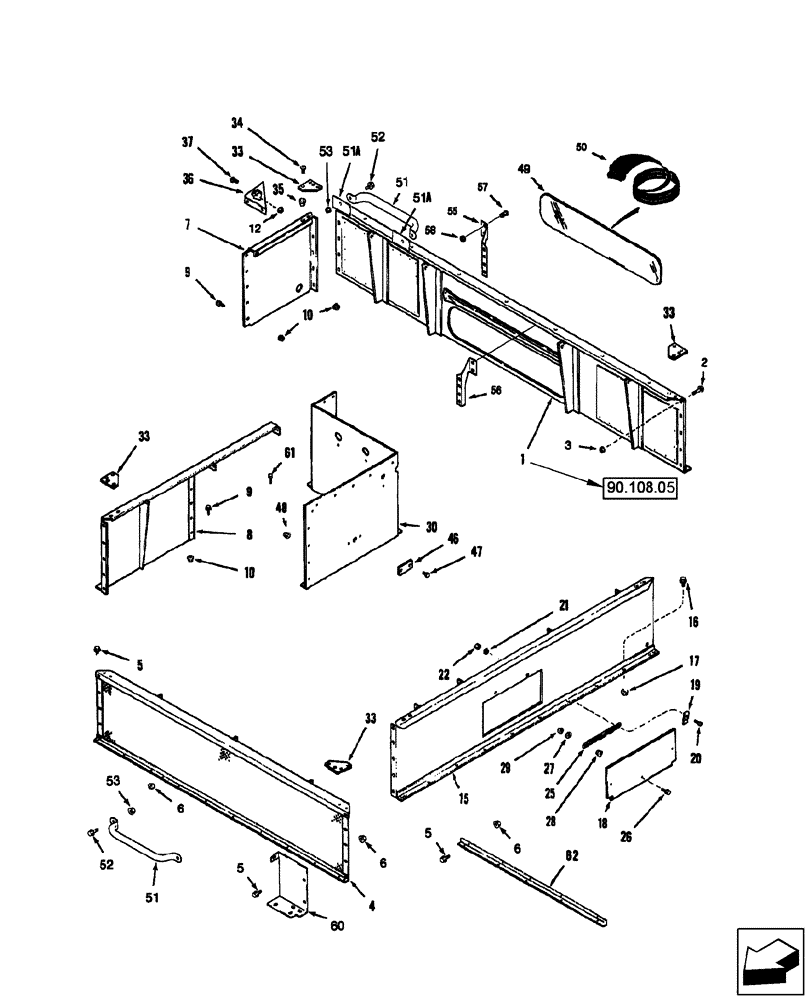

Запчасти Case IH 2577 (80.154.01) - GRAIN TANK EXTENSIONS (80) - CROP STORAGE/UNLOADING

1

189452A2

EXTENSION

Front

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

25шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

25шт.

4

442743A3

EXTENSION

Rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

26шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

26шт.

7

1321775C3

EXTENSION

LH, Front

1шт.

8

1321771C1

EXTENSION

LH, Rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

29шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

15

1327640C2

RISER

RH

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

1327644C2

PLATE

1шт.

19

167800C1

CLIP

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

21

492-11010

LOCK WASHER,#10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

2шт.

30

1317635C2

SHEET

LH

1шт.

33

1321757C1

PLATE

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

36

1327510C1

SUPPORT

1шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

46

1317645C2

PLATE

1шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

49

184957A1

GLASS

1шт.

50

188214A1

SEAL, GLASS

1шт.

51

256952A2

HANDRAIL

1-2шт.

51a

275731A1

PLATE

2-4шт.

52

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2-4шт.

53

231-5346

FLANGE NUT,Flg, 3/8"-16

2-4шт.

54

198820C1

GROMMET

(Not Shown)

1шт.

55

241682A1

SUPPORT

LH, Grain Tank Level Sensor

1шт.

56

241683A1

SUPPORT

RH, Grain tank Level Sensor

1шт.

57

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

58

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

59

258728A1

SEALING STRIP

(Not Shown)

3шт.

60

232064A4

SUPPORT

1шт.

61

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

62

444672A2

SUPPORT

Rotor Service Cover

1шт.
