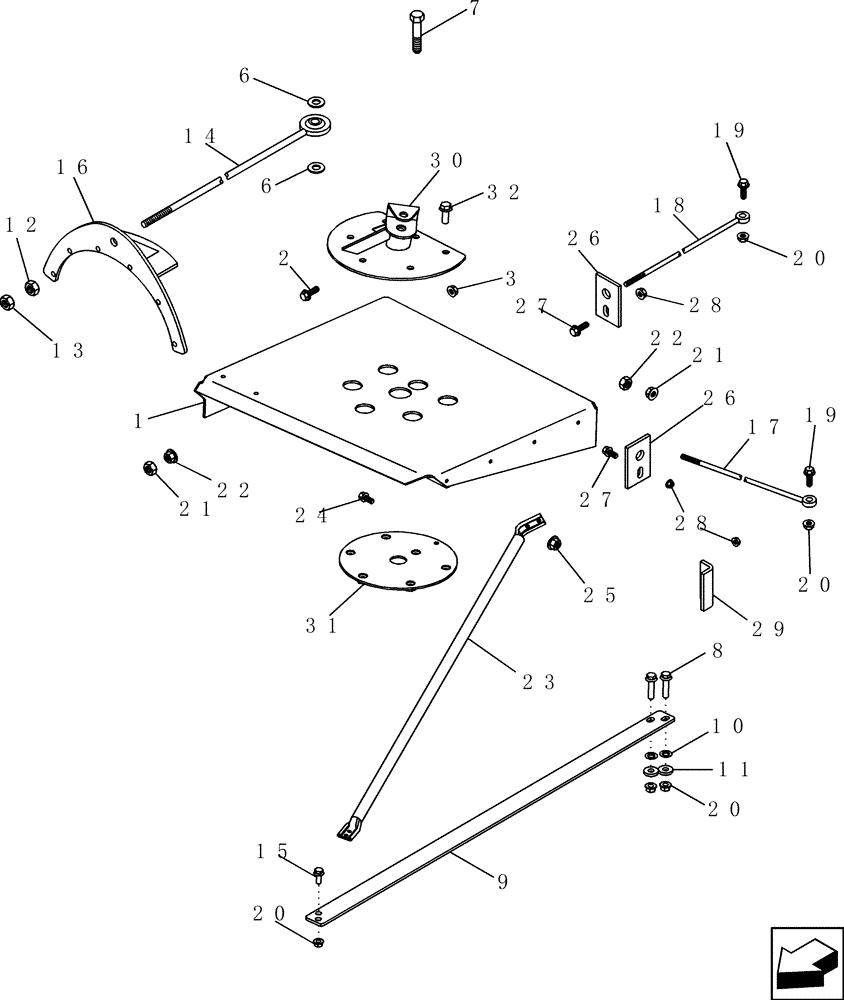

Запчасти Case IH 2577 (80.150.14) - UNLOADER - SUPPORTS (80) - CROP STORAGE/UNLOADING

1

87548040

SUPPORT

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

3

231-5146

FLANGE NUT,3/8"-16

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

495-81175

WASHER,21/32" x 1" x .120"

2шт.

7

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

8

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

9

87597306

STRAP

Rear RH Unloader Tie Rod Anchor

1шт.

10

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

2шт.

11

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

2шт.

12

554480R1

WHEEL NUT

5/8" NF

1шт.

13

425-1110

NUT,5/8"-18, G5

1шт.

14

87557240

ROD ASSY.

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

16

87580899

SUPPORT

1шт.

17

193625C1

ROD

2шт.

18

1979494C1

ROD

1шт.

19

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

20

231-5146

FLANGE NUT,3/8"-16

7шт.

21

425-108

NUT,1/2" - 13, Gr 5

3шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

23

1338378C1

ROD

1шт.

24

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

186691C1

PLATE

3шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

29

186690C1

BRACKET

1шт.

30

87580904

SUPPORT ASSY.

Tensioner

1шт.

31

87529528

PLATE ASSY.

Tensioner Bolting Ring

1шт.

32

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

6шт.
