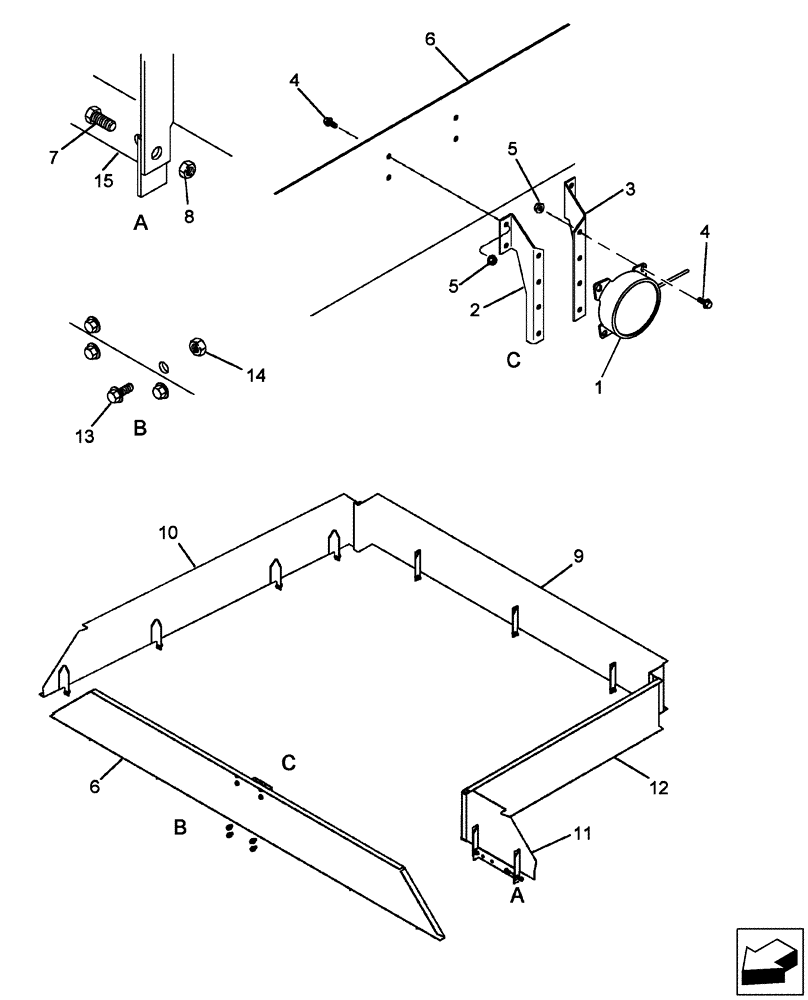

Запчасти Case IH 2577 (80.150.13) - GRAIN TANK UPPER EXTENSIONS, LOW HP (80) - CROP STORAGE/UNLOADING

1

87346939

SENSOR

Grain Tank Level, Serial Range: -HAJ300402

1шт.

1

87701176

SENSOR

Grain Tank Level, Start Serial: HAJ300402

1шт.

2

87578635

BRACKET

Grain Tank Level Sensor, LH

1шт.

3

87578636

BRACKET

Grain Tank Level Sensor, RH

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

6

87551543

EXTENSION

Front Flip-up

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

8

231-1445

NUT,5/16"-18, GB

16шт.

9

87551547

EXTENSION

Rear Flip-up

1шт.

10

87551545

EXTENSION

RH, Flip-up

1шт.

11

87551551

EXTENSION

LH, Front Flip-up

1шт.

12

87551549

EXTENSION

LH, Rear Flip-up

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

1321802C1

CHANNEL

LH, Front Flip-up

1шт.
