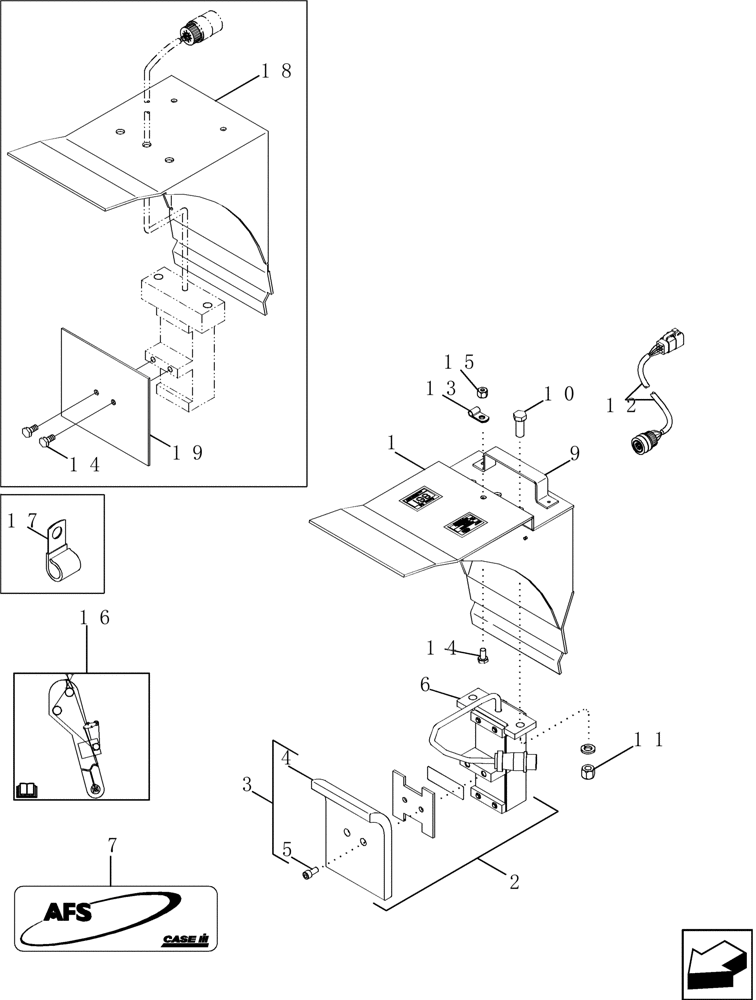

Запчасти Case IH 2577 (80.101.30) - GRAIN ELEVATOR HEAD, INCLINED - AFS FLOW SENSOR (80) - CROP STORAGE/UNLOADING

1

87342539

SENSOR

Cover Assy, Flow Sensor, Incl 2 - 11, 13 - 17

1шт.

2

224597A3

SENSOR

Assy, Flow, Incl 3 - 7

1шт.

3

87301202

KIT

Impact Plate - Yield Monitor, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE, Impact

1шт.

5

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

6

NSS

NOT SOLD SEPARAT

FLOW SENSOR

1шт.

7

239258A1

DECAL

AFS Logo

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

10

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.

12

318575A1

WIRE HARNESS

1шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

2шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

15

231-1444

NUT,1/4"-20, GB

1шт.

16

239313A1

DECAL

Inclined Delivery GPS/AFS

1шт.

17

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

18

87324189

SENSOR

Low Flow

1шт.

19

87324188

PLATE

Impact, Low Flow

1шт.
