Запчасти Case IH 2577 (80.101.16) - GRAIN AUGER TROUGH (80) - CROP STORAGE/UNLOADING

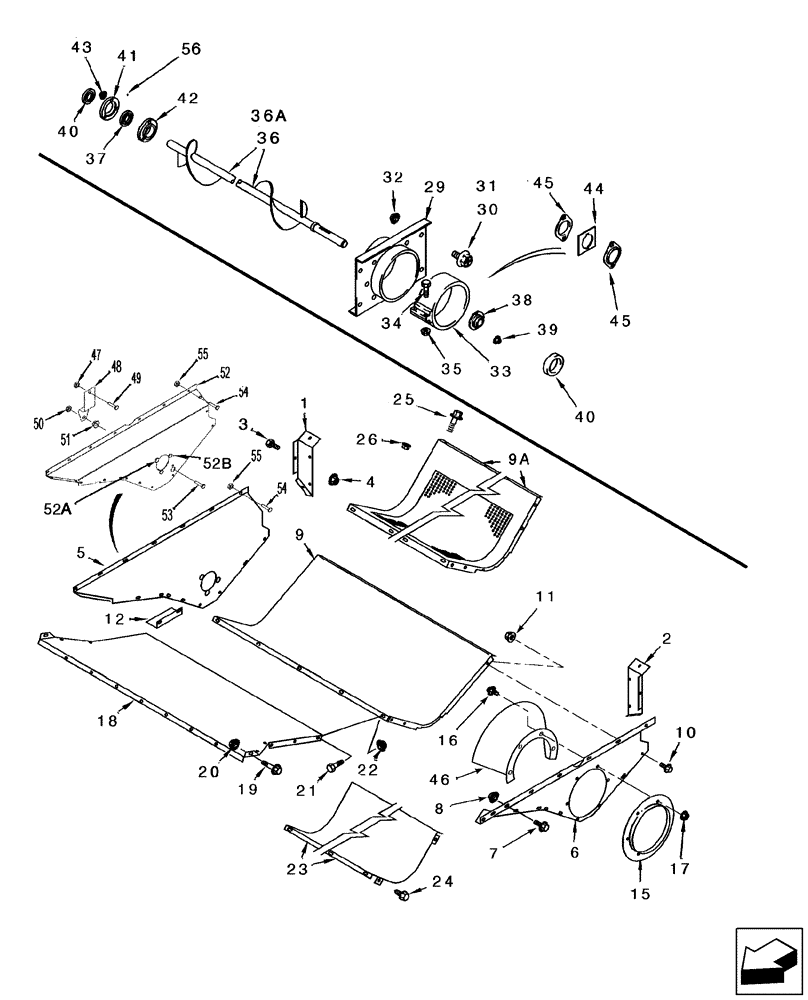

Схема запчастей Case IH 2577 - (80.101.16) - GRAIN AUGER TROUGH (80) - CROP STORAGE/UNLOADING
48
52a
12
30
52
33
8
55
38
1
41
44
39
26
16
18
25
7
45
2
24
37
43
49
42
55
45
51
50
53
36
36a
20
9
47
11
22
52b
35
34
29
40
46
23
32
19
40
5
17
15
4
3
21
31
54
6
56
10
9a

Артикул

Название

Примечание

Количество

1

1541928C1

SUPPORT

LH

1шт.

2

1541929C1

SUPPORT

RH

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

5

143955A2

SUPPORT

LH

1шт.

6

1541541C2

SUPPORT

RH

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

14шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

9

1989374C1

TROUGH

Non-perforated, Clean Grain

1шт.

9a

1541800C1

TROUGH

Perforated, Clean Grain

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

11

231-5345

FLANGE NUT,Flg, 5/16"-18

12шт.

12

1317407C3

BRACKET

1шт.

15

1317401C1

RETAINER

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

18

191984C3

SUPPORT

Extension

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

19шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

23

1541802C1

COVER

1шт.

24

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

4шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

14шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

29

1317398C1

SUPPORT

1шт.

30

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2" x 1"

9шт.

31

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

1/2" x 1-1/4"

1шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

33

1317442C1

CLAMP

1шт.

34

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

2шт.

35

231-4115

NUT,5/16"-18, GB

2шт.

36

249279A1

AUGER

Clean Grain

1шт.

37

473093R92

BEARING ASSY,34.92mm ID x 72mm OD x 19mm W

LH

1шт.

38

473093R92

BEARING ASSY,34.92mm ID x 72mm OD x 19mm W

RH

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

87431215

COLLAR

Locking, With Set Screw

2шт.

41

86620418

FLANGE,Bearing

LH, Incl. Grease Port

1шт.

42

86620026

FLANGED BEARING

Grooved, LH

1шт.

43

231-5146

FLANGE NUT,3/8"-16

3шт.

44

176111A1

SPACER

1шт.

45

599382R1

FLANGED BEARING

RH

2шт.

46

197620A1

CONE

1шт.

47

86625057

NUT,#10-24, GB

1шт.

48

431114A1

BRACKET

1шт.

49

440-11024

SCREW,Cross Pan Hd, #10-24 x 1 1/2"

1шт.

50

231-4145

NUT,5/16"-18, GB

1шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

52

430035A1

SUPPORT

Incl 52A, 52B

1шт.

52a

51-13832

BOLT

Stud, 3/8" x 2"

1шт.

52b

51-13816

STUD

3/8" x 1"

2шт.

53

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

54

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

56

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

57

86984222

PAD

(Not Shown)

1шт.

Выбрано товаров: 56
