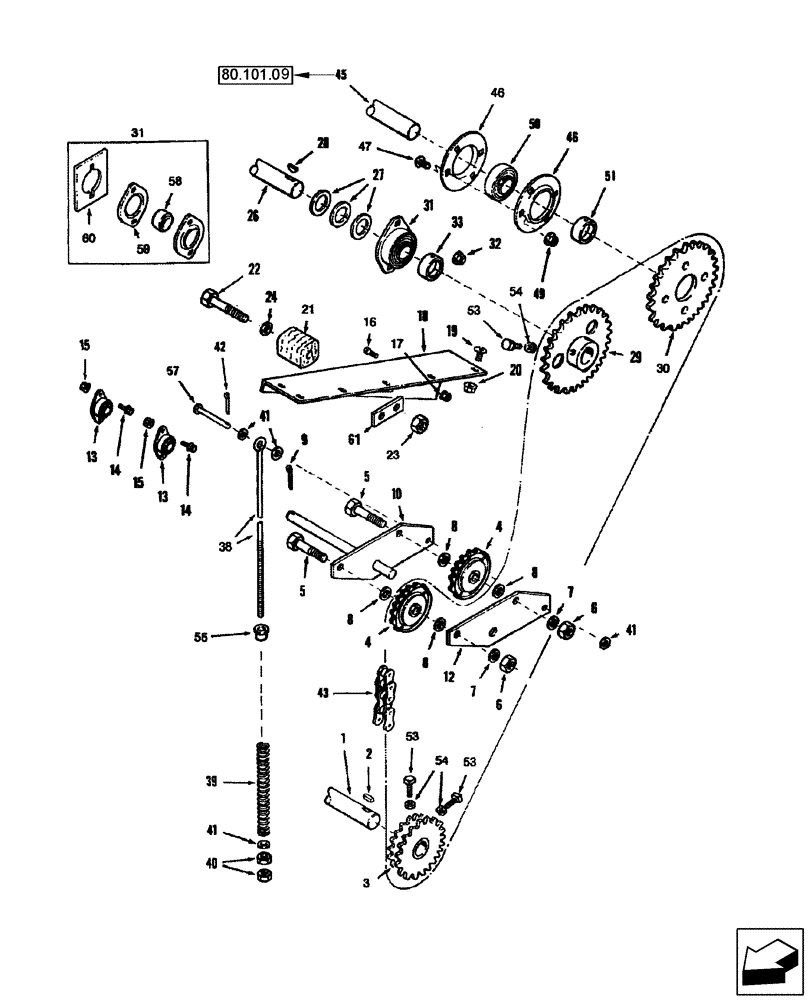

Запчасти Case IH 2577 (80.101.02) - GRAIN ELEVATOR DRIVE (80) - CROP STORAGE/UNLOADING

1

1319247C1

SHAFT

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

296023A1

SPROCKET

27T, 32T, Drive

1шт.

3

348324A1

SPROCKET

20T, 27T, Drive, Edible Bean

1шт.

4

103244

SPROCKET

Idler, 17T

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

10

1345065C1

SUPPORT

1шт.

12

1345066C1

PLATE

1шт.

13

87364072

BEARING

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

18

1317476C4

SUPPORT

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

21

582018R1

BLOCK

2шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

232-41110

NUT,5/8"-11, GC

2шт.

24

495-81030

WASHER,21/32" x 2" x .179"

2шт.

26

1317470C1

SHAFT

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

32T, Driven

1шт.

30

1321039C1

SPROCKET

29T, Driven

1шт.

31

156010C92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

87431216

COLLAR,31.77mm ID x 44.45mm OD x 15.9mm W

1шт.

38

1345005C1

BOLT,3/8" - 16 x 815mm

BOLT, EYE

1шт.

39

523677R1

SPRING

1шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

495-81143

WASHER,13/32" x 1 1/2" x .120"

4шт.

42

432-612

COTTER PIN,3/32" x 3/4"

1шт.

43

1327534C92

CHAIN

Order 1791D (255), 241-1315 (3), 241-1115 (3), Inclined Delivery Auger Elevator

1шт.

45

87347842

AUGER

Inclined Delivery Auger Elevator

1шт.

46

87430518

FLANGE

2шт.

47

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

49

231-5146

FLANGE NUT,3/8"-16

4шт.

50

611583R91

BALL BEARING

1шт.

51

87431215

COLLAR

1шт.

53

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

55

S113843

BUSHING,9.65mm ID x 15.75mm OD x 15.75mm L

1шт.

57

427-6240

CLEVIS PIN,9.53mm OD x 61.11mm L

1шт.

58

156010C92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

59

87106572

FLANGE

2шт.

60

1979642C1

SPACER

1шт.

61

87422237

PLATE

Strap, Elevator Idler

1шт.
