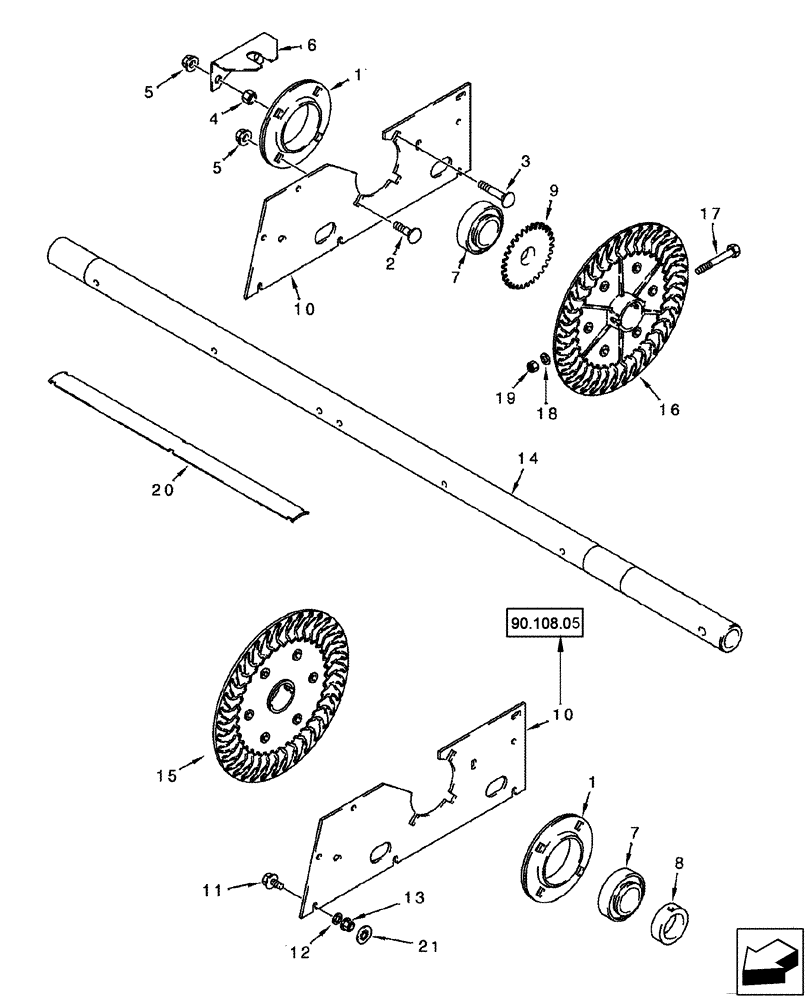

Запчасти Case IH 2577 (74.130.04) - CLEANING FAN - SHAFT AND SUPPORTS (74) - CLEANING

1

86979948

FLANGE

4шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

6шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

6

1541554C1

SUPPORT

1шт.

7

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

2шт.

8

86999734

COLLAR,44.48mm ID x 63.5mm OD x 18.3mm W

1шт.

9

1541555C1

SPROCKET

1шт.

10

120870A1

SUPPORT

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

495-81143

WASHER,13/32" x 1 1/2" x .120"

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

1541936C3

FAN

Incl 14 - 20

1шт.

14

1989543C3

SHAFT

1шт.

15

1541560C1

FAN BLADE

RH

3шт.

16

1541570C1

FAN BLADE

LH

3шт.

17

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

20

1347001C1

FAN BLADE

72шт.

21

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.
