Запчасти Case IH 2577 (74.101.21) - TAILINGS - ELEVATOR HEAD (74) - CLEANING

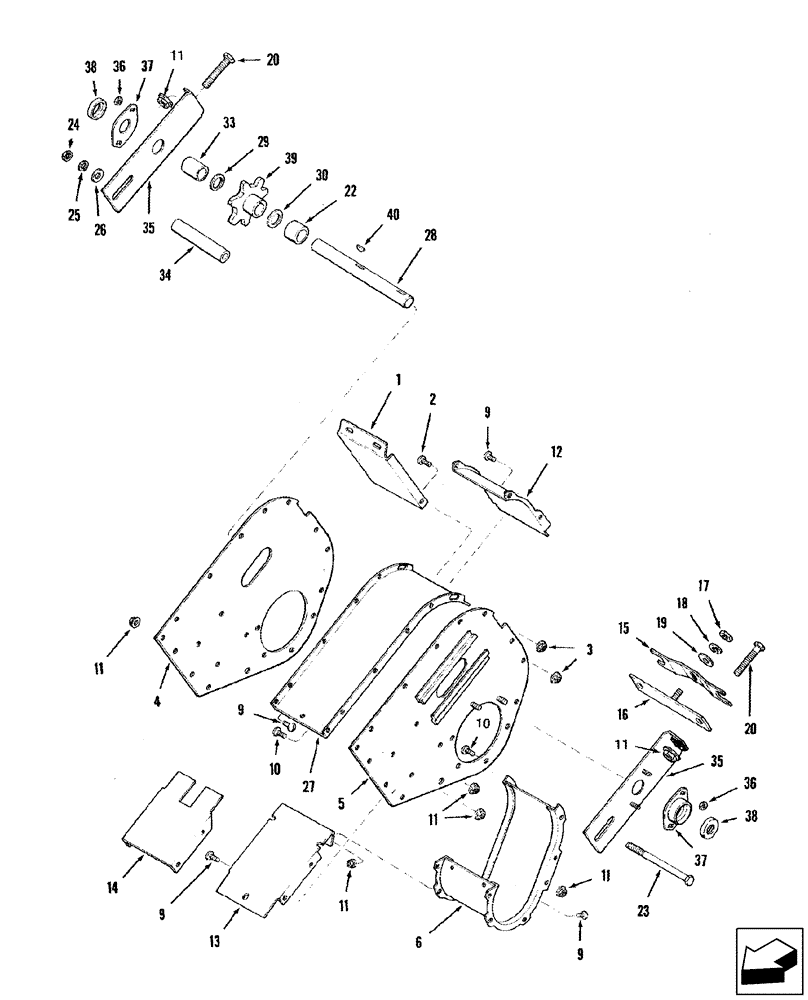

Схема запчастей Case IH 2577 - (74.101.21) - TAILINGS - ELEVATOR HEAD (74) - CLEANING
5
11
15
17
22
23
11
16
36
9
10
27
40
28
9
11
14
9
37
25
35
11
9
30
26
18
10
13
3
2
39
24
33
20
4
36
1
37
29
11
20
34
35
6
19
11
38
12
38

Артикул

Название

Примечание

Количество

1

192426C1

SUPPORT

Upper

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

181366C1

SIDE PLATE

LH

1шт.

5

181367C1

SIDE PLATE

RH

1шт.

6

188119C1

TROUGH

1шт.

9

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

24шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

36шт.

12

191776C1

COVER

1шт.

13

191782C1

SUPPORT

Lower

1шт.

14

181327C1

BOTTOM

Lower

1шт.

15

181376C1

CLAMP

1шт.

16

181375C1

SUPPORT

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

20

667486R1

BOLT

1/2" x 3-1/2"

2шт.

22

87036418

SPACER,26.64mm ID x 33.4mm OD x 39.67mm L

1шт.

23

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

24

425-105

NUT,5/16"-18, G5

1шт.

25

492-11031

LOCK WASHER,5/16"

1шт.

26

495-11034

WASHER,5/16", SAE

2шт.

26

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

3шт.

27

191783C1

TOP COVER

1шт.

28

87515814

SHAFT

1шт.

29

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

2шт.

30

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

2шт.

33

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

1шт.

34

87302565

SPACER,9.2mm ID x 13.7mm OD x 147.6mm L

1/4" x 5-13/16"

2шт.

35

181364C1

SUPPORT

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

214490C91

BALL BEARING,25.4mm ID

2шт.

38

38260

COLLAR

Incl Set Screw

2шт.

39

168683C1

SPROCKET

1шт.

40

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

Выбрано товаров: 36
