Запчасти Case IH 2577 (66.360.04) - VANE - EXTENDED WEAR/STANDARD WEAR (66) - THRESHING

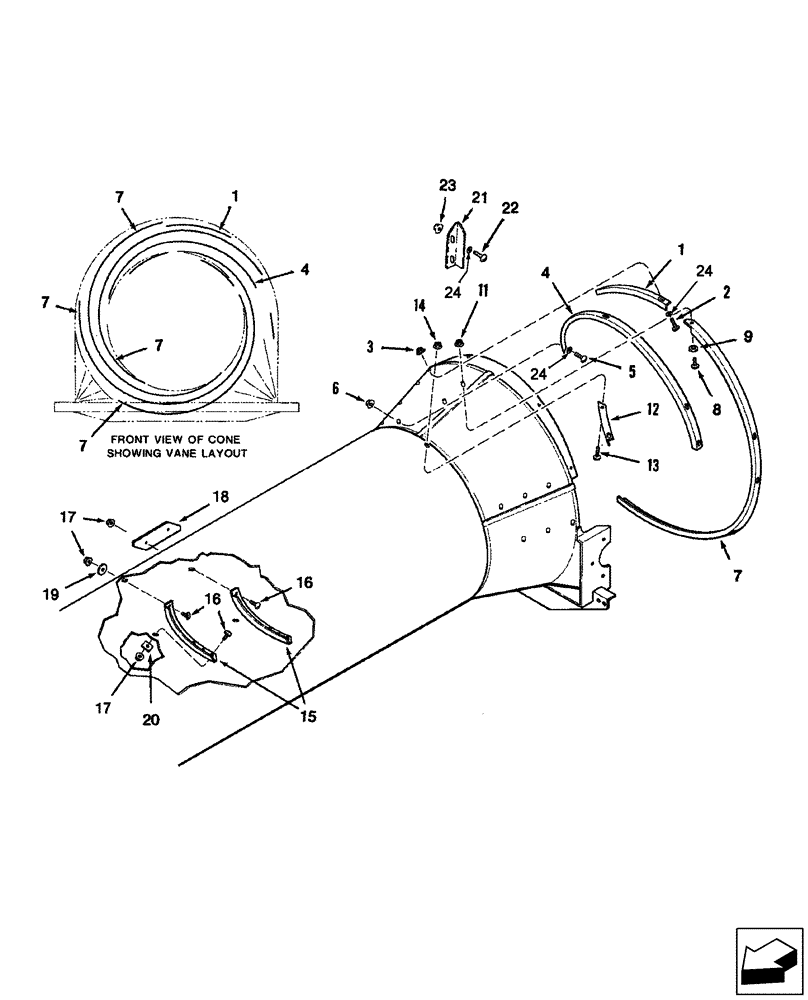

Схема запчастей Case IH 2577 - (66.360.04) - VANE - EXTENDED WEAR/STANDARD WEAR (66) - THRESHING
16
4
14
13
1
4
23
15
7
6
20
1
8
7
7
7
22
17
24
24
17
11
9
24
7
18
2
12
21
16
19
3
5

Артикул

Название

Примечание

Количество

1

347913A1

VANE

VANE, Cone Top Ring

1шт.

Extended Wear

1шт.

1

428281A1

STIFFENER

VANE, Cone Top Ring

1шт.

Standard Wear

1шт.

2

433734A1

BOLT

T-Type

2шт.

Extended Wear

1шт.

2

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

T-Type

2шт.

Standard Wear

1шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

Extended Wear

1шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

Standard Wear

1шт.

4

418655A2

STIFFENER

VANE, Cone Short

1шт.

Extended Wear

1шт.

4

428280A2

STIFFENER

VANE, Cone Short

1шт.

Standard Wear

1шт.

5

433734A1

BOLT

T-Type

8шт.

6

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

7

418654A2

VANE

VANE, Cone Long

4шт.

Extended Wear

1шт.

7

428279A2

STIFFENER

VANE, Cone Long

4шт.

Standard Wear

1шт.

8

433734A1

BOLT

T-Type

40шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

11

86521609

FLANGE NUT,Flg, 3/8"-16

40шт.

12

411518A2

VANE

VANE, Short Front

3шт.

Extended Wear

1шт.

12

411517A2

STIFFENER

VANE, Short Front

3шт.

Standard Wear

1шт.

13

433734A1

BOLT

T-Type

6шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

347917A1

VANE

VANE, Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

T-Type

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32" x 2-1/2" x 5/32"

10шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32" x 1-1/2" x 3/16"

2шт.

21

347918A1

STIFFENER

Vane, Cone Pocket

1шт.

Extended Wear

1шт.

21

433282A1

VANE, Cone Pocket

1шт.

Standard Wear

1шт.

22

433734A1

BOLT

T-Type

2шт.

Extended Wear

1шт.

22

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

T-Type

2шт.

Standard Wear

1шт.

23

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

Extended Wear

1шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

Standard Wear

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

Выбрано товаров: 50
