Запчасти Case IH 2577 (66.330.16[01]) - ROTOR INSTALLATION PARTS - BSN HAJ303001 (66) - THRESHING

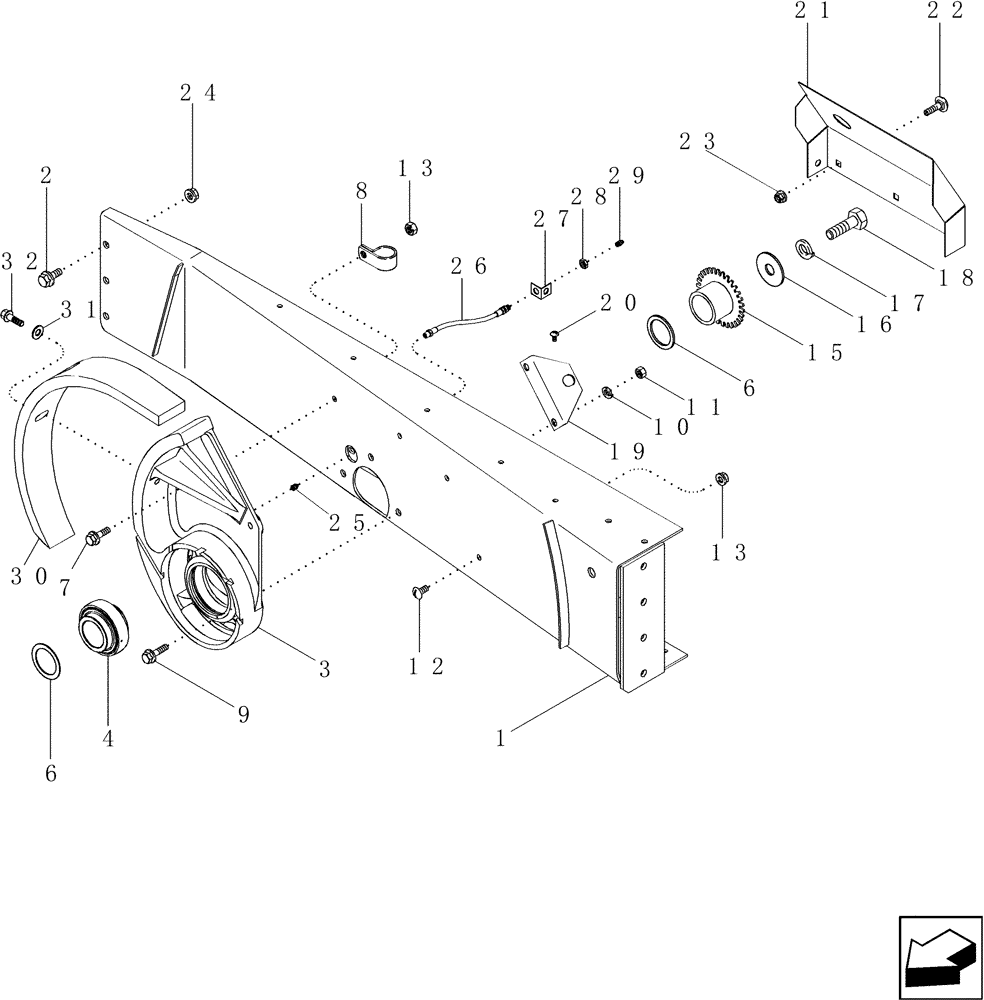

Схема запчастей Case IH 2577 - (66.330.16[01]) - ROTOR INSTALLATION PARTS - BSN HAJ303001 (66) - THRESHING
8
13
6
31
26
9
28
12
1
22
6
11
19
16
3
15
21
10
17
23
32
13
30
18
29
27
25
7
20
2
4
24

Артикул

Название

Примечание

Количество

1

193384C8

SUPPORT

Front Bearing, Standard Wear

1шт.

1

249247A1

SUPPORT

Front Bearing, Extended Wear

1шт.

2

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

3

293431A3

BEARING HOUSING

Assy with Front Bearing, Incl 4

1шт.

4

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

Rotor Front

1шт.

6

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

5 Maximum Shared Between Both Locations

1шт.

7

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

8

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

9

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

3шт.

11

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

3шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

15

1979965C1

ROTOR

Magnetic Speed Pickup

1шт.

16

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

Rotor Front Shaft

1шт.

17

492-11075

LOCK WASHER,3/4"

1шт.

18

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

19

1301239C1

BRACKET

Cylinder Tachometer

1шт.

20

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

2шт.

21

182845C5

SHIELD

RPM Sensor

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

23

131-872

SPRING NUT,Ret, 3/8"-16

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Hose

1шт.

26

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

27

419744A1

BRACKET

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

30

87416663

PLATE

Anti-Wind Extension

1шт.

31

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

32

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

Выбрано товаров: 32
