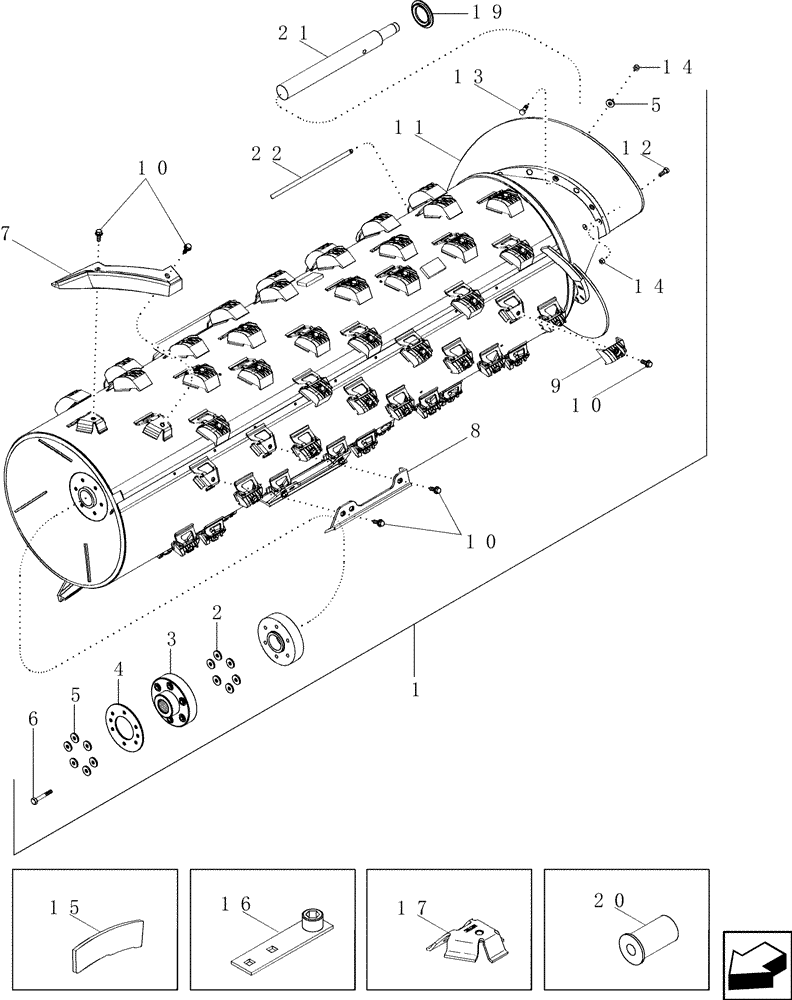

Запчасти Case IH 2577 (66.330.15[01]) - ROTOR ASSY - SPECIALTY AFX - BSN HAJ303001 (66) - THRESHING

87432480

ROTOR

ASSY, AFX Speciality Corn, Standard Wear, Incl 1 - 14

1шт.

87432245

ROTOR

ASSY, AFX Speciality Grain, Extended Wear, Incl 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR Assy, With Supports and Nuts

1шт.

2

195-81030

WASHER

17/32" x 1-1/2" x 3/16"

6шт.

3

87406731

COUPLING

Rotor Drive, (23 Tooth Spline), Incl 3A

1шт.

3a

1345453C1

RUBBER INSULATOR

(Not Shown)

6шт.

4

87363446

PLATE

Rotor Load Ring

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

24шт.

6

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

7

1327676C1

BAR

Helical Kicker, Standard Wear

2шт.

7

86992048

BAR

Helical Kicker, Extended Wear

2шт.

8

1318976C2

BAR,Straight Seperator

Straight Separator, Standard Wear

8шт.

8

86992047

BAR

Straight Separator, Extended Wear

4шт.

9

1309336C2

RASP BAR

Without Rear Spike, Standard Wear

62шт.

9

278821A2

RASP BAR

Without Spike, Extended Wear

70шт.

10

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

82шт.

434525A3

KIT

AFX Rotor Inlet Flight with Extensions, (Standard Wear) Incl 11 (2), 12 (16), 13 (12), 14 - 16, 5 (12), 15 (2)

1шт.

87519251

PACKAGE, REPAIR

AFX Rotor Inlet Flight with Extensions, (Extended Wear) Incl 11 (2), 12 (16), 13 (12), 14 - 16, 5 (12), 15 (2)

1шт.

11

NSS

NOT SOLD SEPARAT

FLIGHT, Inlet

2шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

14

199528A1

NUT

16шт.

15

446451A2

PLATE

Inlet Flight Extension

2шт.

16

87417745

SPECIAL WRENCH

Rasp Bar

1шт.

17

87281664

SUPPORT

Rasp Bar w/Metric Nut, Accepts M12 Bolt, Start Serial: HAJ0292001

1шт.

87357079

KIT

AFX Rotor Front Shaft Stabilizer Ring, Incl 19, 20

1шт.

19

87427000

RING

1шт.

20

87361878

STABILIZER

Tool

1шт.

21

191545C2

SHAFT

Front

1шт.

22

412366A1

PIN,19.05mm OD x 439.8mm L

Rotor Shaft

1шт.
