Запчасти Case IH 2577 (66.260.20) - SEPARATOR - HOOD (66) - THRESHING

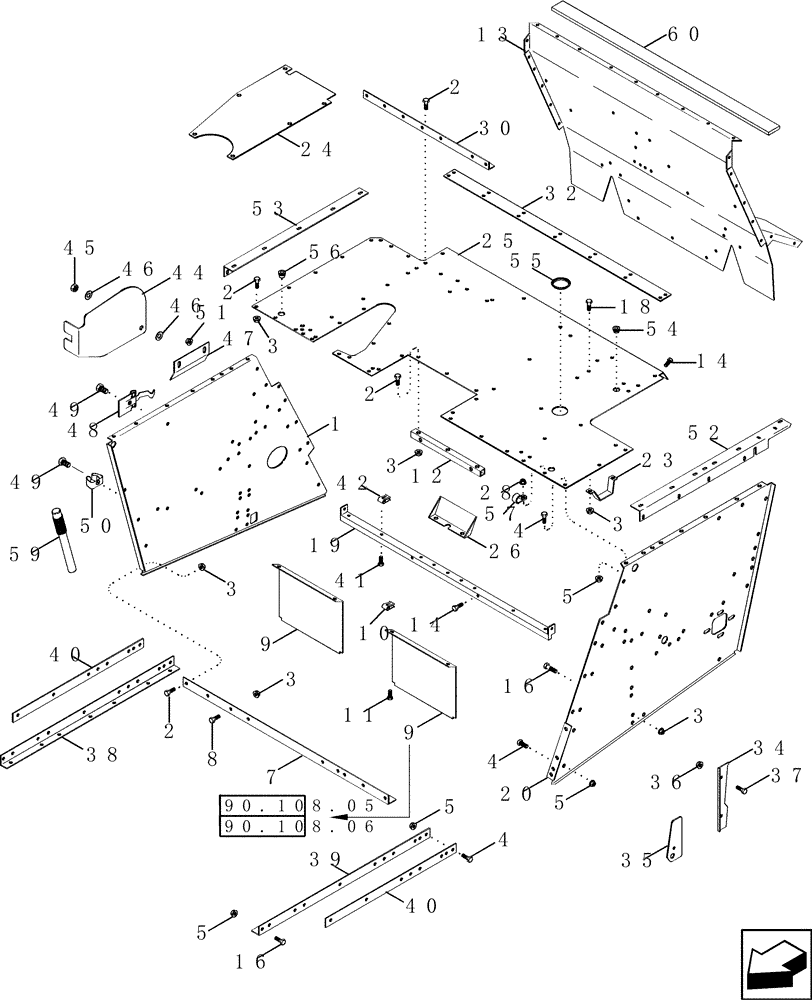

Схема запчастей Case IH 2577 - (66.260.20) - SEPARATOR - HOOD (66) - THRESHING
42
13
25
3
40
20
5
35
46
26
2
7
45
2
3
32
4
36
50
56
38
59
18
48
9
8
47
39
3
37
3
5
49
34
40
4
53
3
55
19
4
90.108.05
9
90.108.06
51
54
30
5
12
23
10
24
28
2
41
16
49
44
60
2
11
52
3
16
14
5
1
46
57
14

Артикул

Название

Примечание

Количество

1

87344263

SHEET

LH, Incl Decals 144388A1 & 179620A2

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

69шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

87шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

13шт.

5

231-5146

FLANGE NUT,3/8"-16

21шт.

7

192304C2

RAIL

Rear

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

441739A1

SUPPORT

Rear

2шт.

10

488837C1

SPRING NUT

5/16"

14шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

12

186971C1

ANGLE

Rear

1шт.

13

364626A3

SUPPORT

Fuel Tank

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

17

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16" x 13/16"

10шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

18

488837C1

SPRING NUT

5/16"

17шт.

19

358622A1

SUPPORT

1шт.

20

87372079

SHEET

RH

1шт.

23

380043A1

STOP

Fuel Tank

2шт.

24

441454A1

COVER

Engine

1шт.

25

87372077

SHEET

Rear Deck

1шт.

26

364781A1

RETAINER

Fuel Tank

1шт.

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

30

279682A1

SUPPORT

Rear Deck

1шт.

32

87412923

SHEET

Rear Deck

1шт.

33

280059A1

SEAL

(Not Shown)

1шт.

34

87374618

SHEET

Seal

1шт.

35

418096A2

SHEET

Seal

1шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

38

412620A1

SUPPORT

Angle, LH Separator Hood

1шт.

39

412622A1

SUPPORT

Angle, RH Separator Hood

1шт.

40

418632A1

STRAP

Spacer

2шт.

41

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

7шт.

42

410009A1

SPRING NUT

U-type

8шт.

43

1302758C1

PLUG

Clean Out Hole (Not Shown)

1шт.

44

87314912

SHIELD

Sieve Lamp

1шт.

45

231-1444

NUT,1/4"-20, GB

1шт.

46

87308449

WASHER

1/4" x 1/2"

2шт.

47

87314913

RETAINER

1шт.

48

167800C1

CLIP

Door Retainer

1шт.

49

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

3шт.

50

106744A1

CLIP

Sieve Handle

2шт.

51

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

52

87415390

SUPPORT

RH, Rear Trim Panel

1шт.

53

183368A2

SUPPORT

LH, Rear Trim

1шт.

54

195806C1

GROMMET

1шт.

55

87000778

PLUG,89mm OD

1шт.

56

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1шт.

57

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

59

106743A1

HANDLE

Extension Assy

1шт.

60

280059A1

SEAL

Foam Tape

1шт.

61

87602943

(Not Shown)

1шт.

Выбрано товаров: 55
