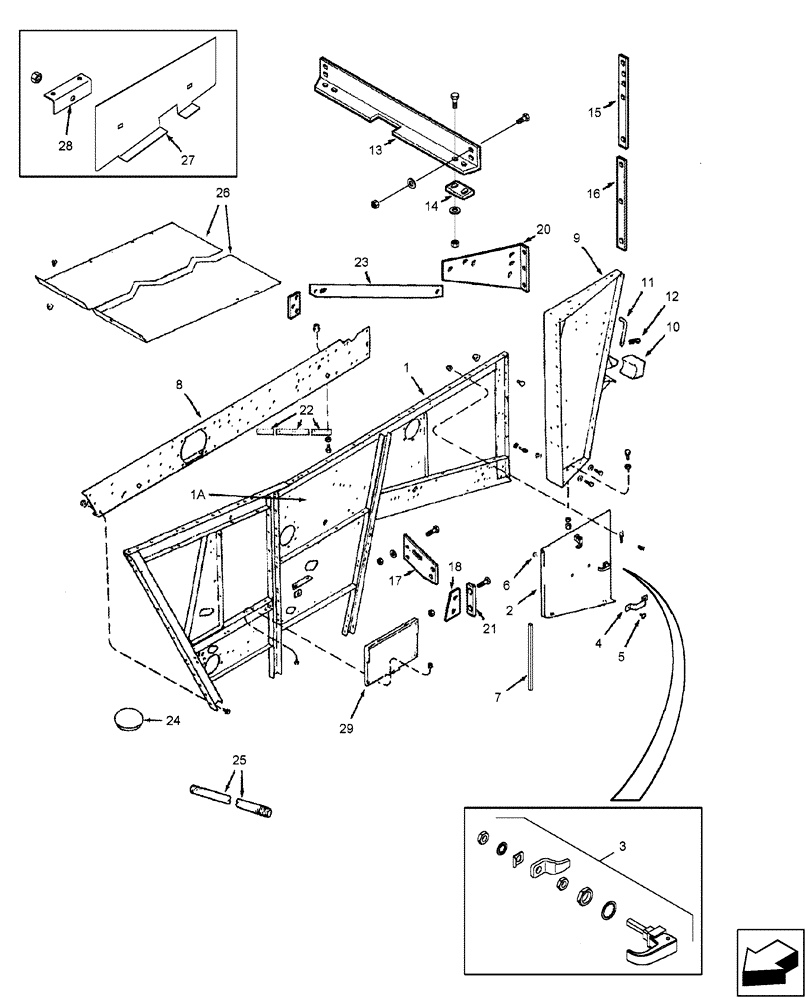

Запчасти Case IH 2577 (66.260.19) - SEPARATOR - DOORS - RIGHT HAND (66) - THRESHING

1

87357185

HYD TUBE,10.22 mm ID x 12.70 mm OD

RH, Incl 1A, 1B

1шт.

1a

192626C3

SHEET

RH, Upper Center

1шт.

1b

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

1шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

6шт.

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

11шт.

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

5шт.

495-21044

WASHER,3/8"

3шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

2

86991350

DOOR

RH, Front

1шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

3

86991204

LATCH

2шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

4

87686906

LATCH

1шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

86991662

DOOR SEAL

362 mm (14-1/4"), Cut from 1971350C1

1шт.

8

87335705

SILL

RH, Main

1шт.

9

87386289

POST

RH

1шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

13шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

13шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2", 8

6шт.

10

1989327C3

RETAINER

12 Row Ready

1шт.

11

418694A1

ROD,25.4mm OD

1шт.

12

1978738C1

HAIR PIN COTTER

3/16"

1шт.

13

237623A1

SUPPORT

Front

1шт.

14

236509A1

SPACER

1шт.

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

15

236934A1

PLATE

Upper RH

1шт.

16

236935A1

PLATE

Lower RH

1шт.

17

87527681

PLATE

LH, Front

1шт.

18

87527683

SPACER

LH

1шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

1шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2"; 8

2шт.

20

236317A1

SUPPORT

RH

1шт.

21

239001A1

PLATE

1шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

5шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

10шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

5шт.

22

186018C1

STRAP

1шт.

23

236727A1

PLATE

RH

1шт.

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

9шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

24

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

25

1319395C1

CONDUIT

12-1/8", Cut from 1262114C1

1шт.

26

87615042

SHEET

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

27

87422278

SHEET

Air Flow Restriction

1шт.

28

86985754

SUPPORT

2шт.

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

29

87301105

DOOR

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

50

236728A1

PLATE

1шт.
