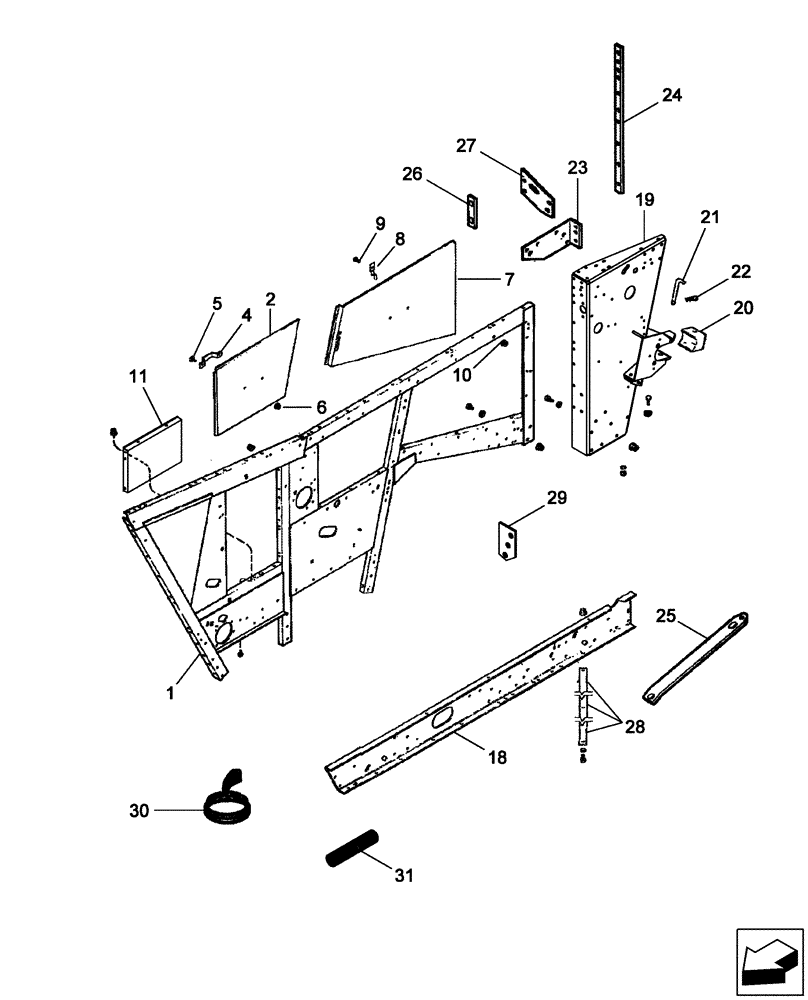

Запчасти Case IH 2577 (66.260.18) - SEPARATOR - DOORS - LEFT HAND (66) - THRESHING

1

87590295

SEPARATOR

LH

1шт.

2

87546151

DOOR

LH, Side

1шт.

4

87686906

LATCH

2шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

7

193223C2

DOOR

LH Front

1шт.

8

167800C1

CLIP

10шт.

9

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

10шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

11

87301105

DOOR

1шт.

18

359826A2

SILL

Main, LH

1шт.

19

87386290

POST

LH, Front

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

20шт.

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

11шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

2шт.

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

13шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

13шт.

20

1989327C3

RETAINER

12 Row Ready

1шт.

21

418694A1

ROD,25.4mm OD

1шт.

22

1978738C1

HAIR PIN COTTER

3/16"

1шт.

23

236370A2

PLATE

LH

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

131-946

FLANGE NUT,Flg, 1/2"-13, G8

6шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

24

236933A1

PLATE

1шт.

25

236726A1

PLATE

LH

1шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

2шт.

26

239001A1

PLATE

1шт.

27

87527681

PLATE

LH, Front

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

9шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

9шт.

28

186018C1

STRAP

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

3шт.

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

3шт.

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

29

87527680

PLATE

2шт.

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

3шт.

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

5шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

5шт.

30

188062C2

DOOR SEAL,12.7mm H x 25.4mm W x 140mm L

140 mm (5-1/2"), Cut from 1338148CX

4шт.

31

87582269

DUCT

11 x 1/2" I.D.

1шт.

32

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

(Not Shown)

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(Not Shown)

1шт.

34

495-11034

WASHER,5/16", SAE

(Not Shown)

3шт.

35

231-1445

NUT,5/16"-18, GB

(Not Shown)

1шт.
