Запчасти Case IH 2577 (66.260.03) - SEPARATOR - JACKSHAFT SUPPORT (66) - THRESHING

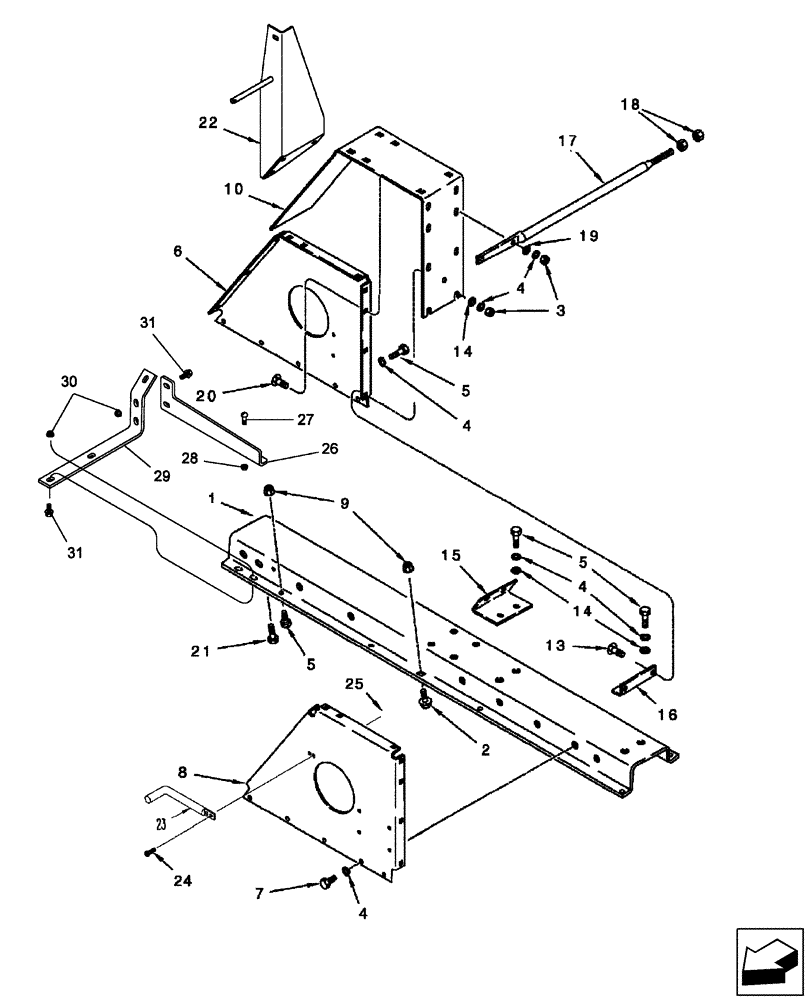

Схема запчастей Case IH 2577 - (66.260.03) - SEPARATOR - JACKSHAFT SUPPORT (66) - THRESHING
29
18
15
17
28
19
7
21
31
27
13
20
5
31
9
4
3
1
22
6
8
2
23
4
30
26
14
14
25
5
10
24
4
16
5
4

Артикул

Название

Примечание

Количество

1

112454A5

SUPPORT

Jackshaft and Auxiliary Pump, Serial Range: -HAJ301674

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

4шт.

1

87642895

SUPPORT ASSY.

Jackshaft and Auxiliary Pump, Start Serial: HAJ301674

1шт.

3

425-108

NUT,1/2" - 13, Gr 5

14шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

6

181175C2

SUPPORT

LH

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

8

181176C2

SUPPORT

RH

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

10

181177C2

SUPPORT

Upper

1шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

12шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

4шт.

15

181178C1

SUPPORT

1шт.

16

181172C1

SUPPORT

Rear

1шт.

17

443257A1

THREADED ROD

Jackshaft Support

1шт.

18

425-1110

NUT,5/8"-18, G5

2шт.

19

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

20

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

22

398584A1

SUPPORT

Separator Drive Clutched

1шт.

23

194901C1

ROD

Separator Guide

1шт.

24

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

87627887

BRACKET

Auxiliary Pump Front, Start Serial: HAJ301674

1шт.

27

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

, Start Serial: HAJ301674

2шт.

28

231-5146

FLANGE NUT,3/8"-16

, Start Serial: HAJ301674

2шт.

29

87627885

BRACKET

Auxiliary Pump, Start Serial: HAJ301674

1шт.

30

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

, Start Serial: HAJ301674

3шт.

31

87302717

FLANGE BOLT,Bolt Flange 1/2-13X1-1/4 GR8 ZND

, Start Serial: HAJ301674

3шт.

Выбрано товаров: 30
