Запчасти Case IH 2577 (60.120.09) - FEEDER - SHIELDS, JACKSHAFT DRIVE (60) - PRODUCT FEEDING

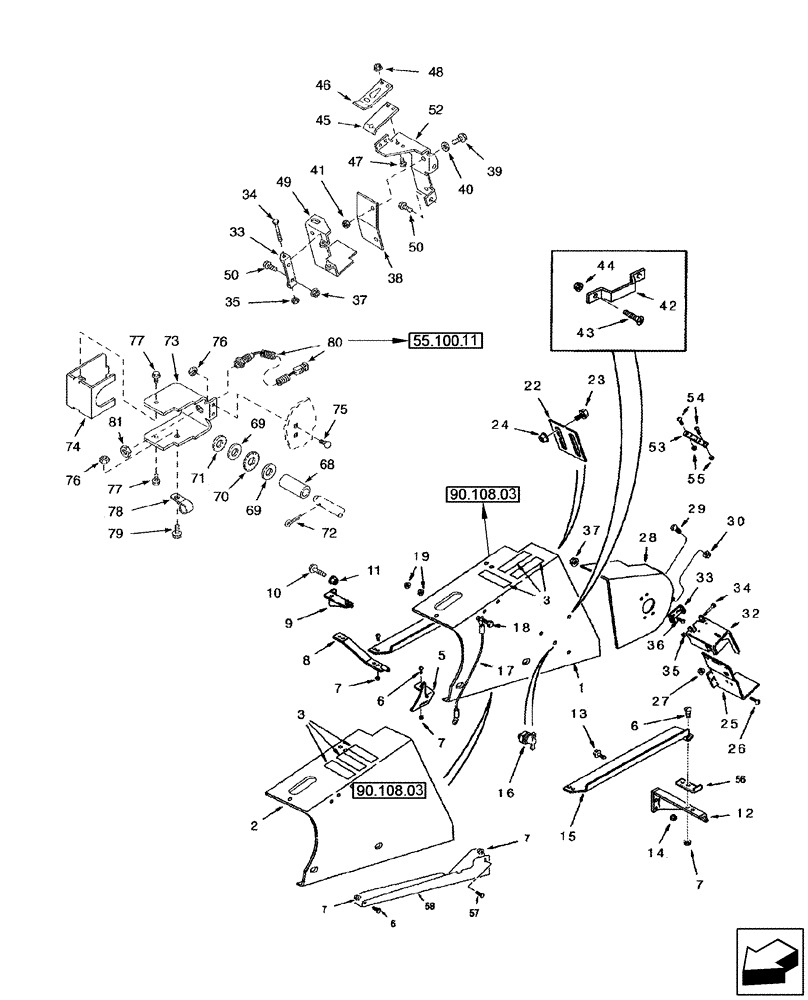

Схема запчастей Case IH 2577 - (60.120.09) - FEEDER - SHIELDS, JACKSHAFT DRIVE (60) - PRODUCT FEEDING
3
22
26
58
47
40
48
71
90.108.03
8
73
19
44
15
78
10
55
2
41
45
32
49
16
5
33
30
79
72
50
68
46
75
24
43
7
76
27
18
34
54
69
3
9
74
29
90.108.03
55.100.11
81
36
56
77
37
57
25
11
7
33
28
35
42
80
14
7
6
52
35
69
12
1
13
76
39
6
6
77
37
50
34
7
53
7
38
70
17
23

Артикул

Название

Примечание

Количество

1

390383A1

SHIELD

Rear, Incl 3

1шт.

With 60" Feeder

1шт.

2

390390A1

SHIELD

Rear, Incl 3

1шт.

With 54-1/2" Feeder

1шт.

3

D55216

PAD,2" x 9"

2" x 9"

3шт.

4

138627A1

COVER

Australia Only (Not Shown)

1шт.

5

186675A2

GUARD

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

231-5345

FLANGE NUT,Flg, 5/16"-18

3шт.

8

1321851C2

SUPPORT

Lower Rear

1шт.

9

1327779C1

SUPPORT

Upper Rear

1шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

1321878C2

SUPPORT

Lower Front

1шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

139079A2

SUPPORT

Rear

1шт.

16

138699A2

LOCK

1шт.

17

132657A2

CABLE

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

20

138629A1

COVER

LH, Australia Only (Not Shown)

1шт.

21

138179A3

LATCH

Australia Only (Not Shown)

2шт.

22

139108A1

PLATE

1шт.

23

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

25

129902A2

GUARD

RH Rear

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

129707A4

SHIELD

Front

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

32

129715A2

GUARD

RH Front

1шт.

33

1345199C2

SUPPORT

2шт.

34

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

2шт.

35

231-4144

NUT,1/4"-20, GB

2шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

406610A1

SHIELD

1шт.

39

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

40

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

41

231-4116

NUT,3/8"-16, GB

2шт.

42

87686906

LATCH

1шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

45

407153A1

GUIDE

1шт.

46

138179A3

LATCH

1шт.

47

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

49

406609A1

SHIELD

LH Rear

1шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

52

406608A1

SHIELD

LH Front

1шт.

53

1321880C1

SUPPORT

Front

1шт.

54

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

56

235885A1

SUPPORT

1шт.

57

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

58

235873A1

SHIELD

Lower

1шт.

With 54-1/2" Feeder

1шт.

58

235874A1

SHIELD

Lower

1шт.

With 60" Feeder

1шт.

59

240438A2

PLASTIC-RUBBER TUBE,60.3 mm OD

(Not Shown)

1шт.

63

495-21044

WASHER,3/8"

Australia Only (Not Shown)

2шт.

64

231-4116

NUT,3/8"-16, GB

Australia Only (Not Shown)

2шт.

65

138180A1

COVER

Australia Only (Not Shown)

1шт.

66

248406A1

GUARD

Rubber (Not Shown)

1шт.

66a

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Not Shown)

2шт.

67

252441A1

SEAL RETAINER

(Not Shown)

1шт.

68

584608R1

SPACER

86 mm (3-3/8")

1шт.

69

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

7шт.

70

390532A1

PLATE

Transducer, 20T

1шт.

Without Rock Trap

1шт.

71

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1шт.

72

432-2440

COTTER PIN,3/8" x 2 1/2"

1шт.

73

392857A2

BRACKET

1шт.

Without Rock Trap

1шт.

74

392858A2

SHIELD

1шт.

Without Rock Trap

1шт.

75

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

76

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

77

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

2шт.

78

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

79

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

80

245193C2

SENSOR

Feeder Speed

1шт.

81

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

Выбрано товаров: 87
