Запчасти Case IH 2577 (60.120.08) - FEEDER - SHIELDS, DRIVE (60) - PRODUCT FEEDING

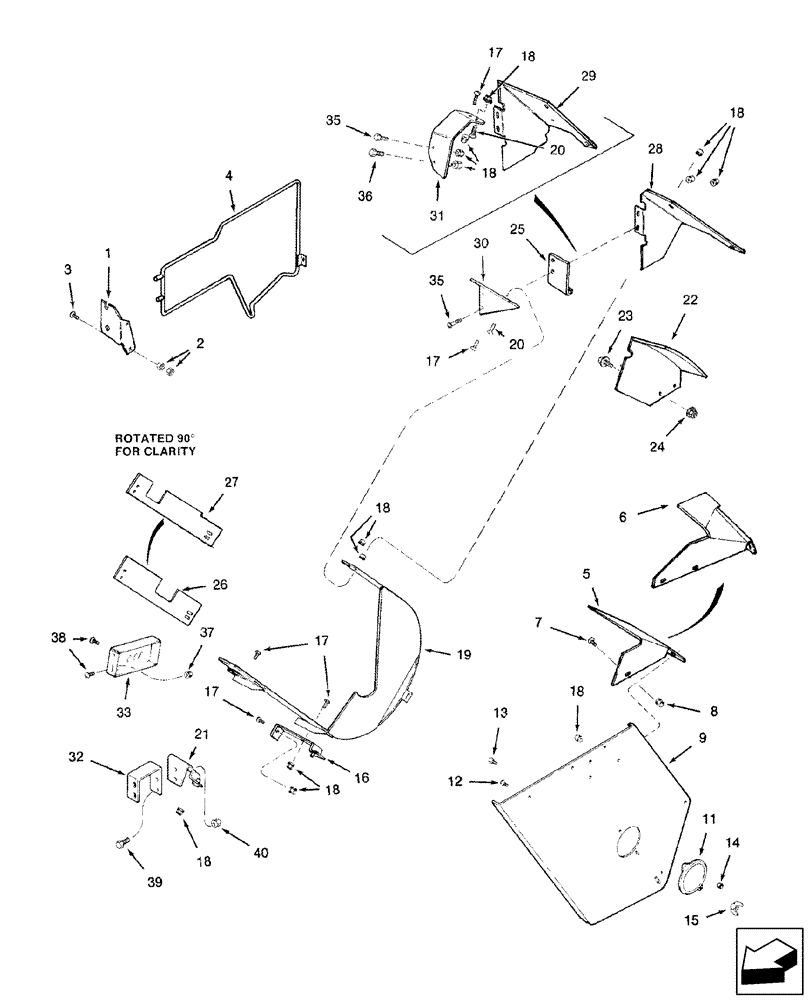

Схема запчастей Case IH 2577 - (60.120.08) - FEEDER - SHIELDS, DRIVE (60) - PRODUCT FEEDING
25
36
20
29
6
32
1
7
27
23
17
18
18
17
24
30
19
8
18
38
11
5
16
3
31
21
4
15
14
33
18
22
18
2
13
18
17
40
9
20
12
28
35
35
39
17
37
18
26

Артикул

Название

Примечание

Количество

1

183740A2

SUPPORT

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

4

144102A2

GUARD

1шт.

5

175072A2

SHIELD

1шт.

Without Power Guide Axle

1шт.

Without Rock Trap

1шт.

6

175073A3

SHIELD

1шт.

With Rock Trap

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

9

194501C6

COVER

1шт.

11

188315C1

DOOR

1шт.

12

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

14

231-1444

NUT,1/4"-20, GB

1шт.

15

129-409

WING NUT,1/4"-20

1шт.

16

135602A1

SUPPORT

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

17

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

6шт.

With Rock Trap

1шт.

17

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

19

194499C4

HOUSING

1шт.

Without Rock Trap

1шт.

19

1315088C4

HOUSING

1шт.

With Rock Trap

1шт.

20

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

1шт.

21

188288C1

SUPPORT

1шт.

22

175680A3

SHIELD

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

25

194364C2

HINGE

Bracket

1шт.

26

133952A2

SHIELD

1шт.

Without Rock Trap

1шт.

27

133950A1

SHIELD

1шт.

With Rock Trap

1шт.

28

131155A4

COVER

1шт.

Without Rock Trap

1шт.

29

131066A4

COVER

1шт.

With Rock Trap

1шт.

30

188323C3

SUPPORT

1шт.

Without Rock Trap

1шт.

31

1989333C3

SUPPORT

1шт.

With Rock Trap

1шт.

32

1315084C2

SUPPORT

1шт.

With Rock Trap

1шт.

33

1315083C1

SUPPORT

1шт.

With Rock Trap

1шт.

35

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

36

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

With Rock Trap

1шт.

39

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

39

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

With Rock Trap

1шт.

40

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

2шт.

With Rock Trap

1шт.

41

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

With Rock Trap

1шт.

Выбрано товаров: 62
