Запчасти Case IH 2577 (60.120.01) - FEEDER - MOUNTING, DRIVE AND FAN GEAR (60) - PRODUCT FEEDING

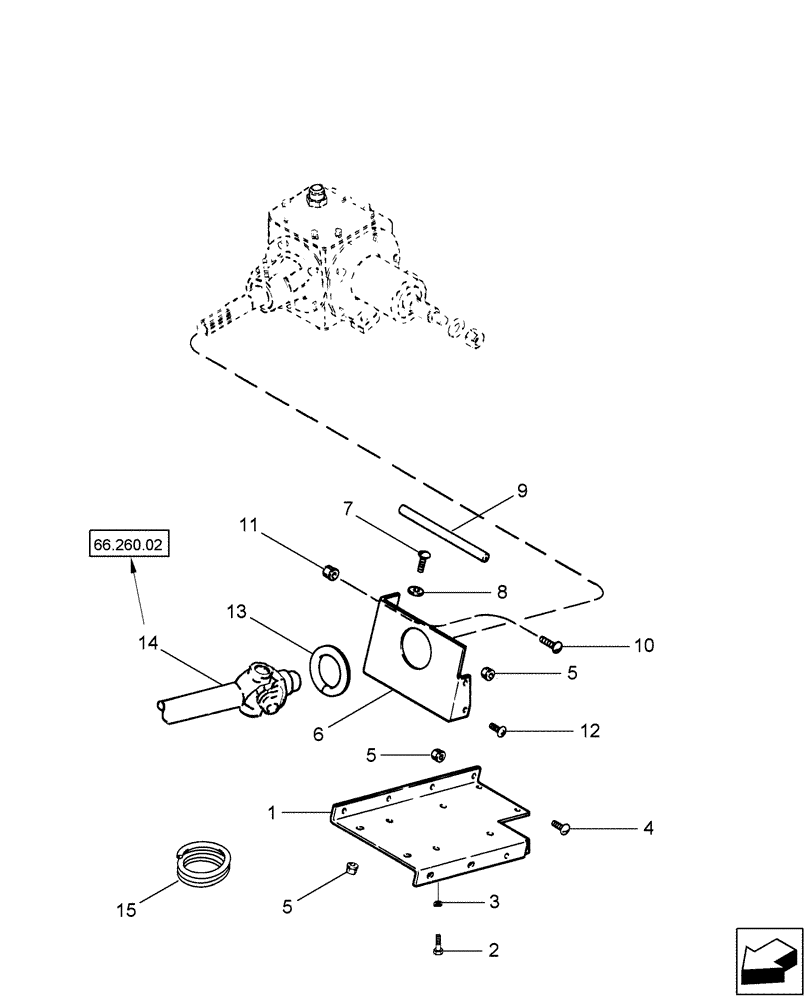

Схема запчастей Case IH 2577 - (60.120.01) - FEEDER - MOUNTING, DRIVE AND FAN GEAR (60) - PRODUCT FEEDING
15
5
7
5
13
8
9
4
12
11
10
1
66.260.02
2
5
14
6
3

Артикул

Название

Примечание

Количество

1

378152A1

SUPPORT

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

191399C2

SUPPORT

Rear

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

9

191497C1

SEALING STRIP

270 mm (10-5/8")

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

11

231-5146

FLANGE NUT,3/8"-16

7шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

13

191496C1

SEALING STRIP

300 mm (11-7/8")

1шт.

14

443298A1

DRIVE SHAFT

1шт.

15

191498C1

SEALING STRIP

528 mm (20-13/16")

1шт.

Выбрано товаров: 15
