Запчасти Case IH 2577 (60.110.19) - FIELD TRACKER® - SUPPORT, HEADER PIVOT (60) - PRODUCT FEEDING

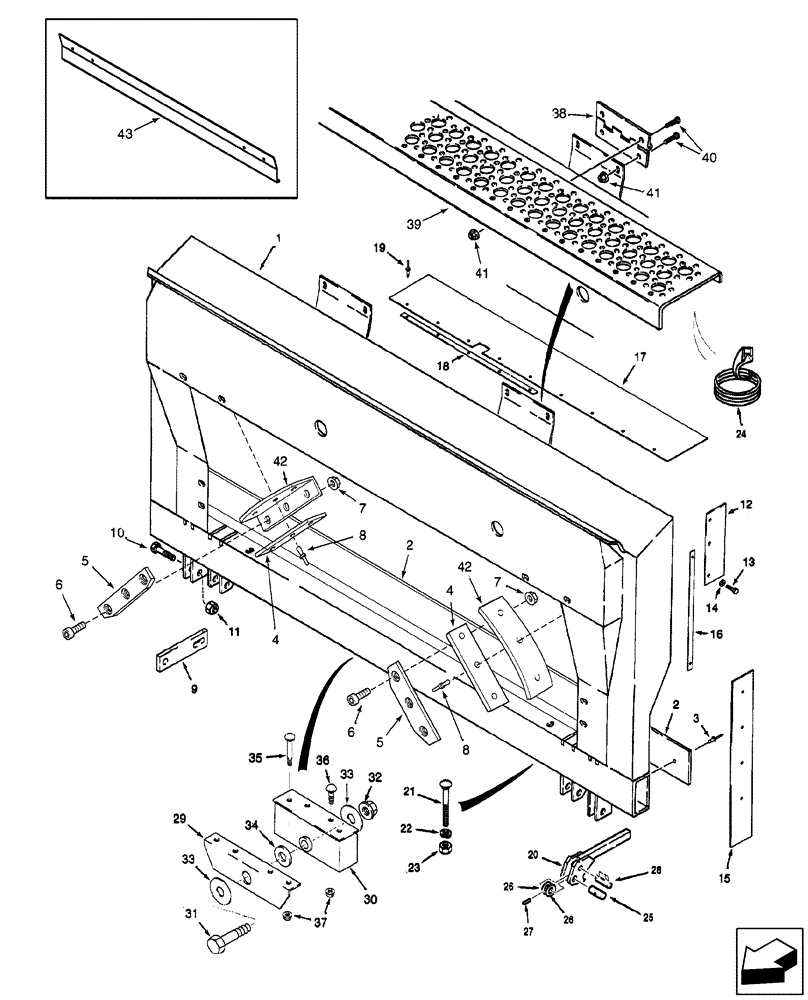

Схема запчастей Case IH 2577 - (60.110.19) - FIELD TRACKER® - SUPPORT, HEADER PIVOT (60) - PRODUCT FEEDING
3
42
28
21
5
2
8
4
43
11
41
4
5
24
25
15
34
16
26
6
18
10
41
33
31
39
37
30
20
40
8
32
12
22
33
36
1
6
19
2
7
23
13
14
7
29
35
38
9
42
26
17
27

Артикул

Название

Примечание

Количество

144255A3

SUPPORT

Incl 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

2

100274A1

WEAR PLATE

1шт.

3

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

7шт.

416757A1

KIT

Slide, Incl 4 - 8

1шт.

4

350017A1

SLIDE

Horizontal

2шт.

5

350018A1

SLIDE

Vertical

2шт.

6

461-7258

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1/2"

6шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

8

151-570

RIVET,Pop, 1/4" x 3/4"

6шт.

9

100287A1

STOP

2шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

11

231-4218

LOCK NUT,1/2"-13, GB

4шт.

12

108739A1

RUBBER SEAL,3.17mm Thk

2шт.

13

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

6шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

15

108740A1

RUBBER SEAL

2шт.

16

108645A2

STRIP

300 mm (11-13/16"

3шт.

16

226606A2

STRAP

210 mm (8-1/4")

1шт.

16a

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

(Not Shown)

1шт.

17

144934A1

GUARD

2шт.

18

144935A2

STRAP

370 mm (14-9/16")

2шт.

19

390747A1

RIVET

3/16" x 0.78"

26шт.

20

100295A1

HANDLE

2шт.

21

411-572

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 4 1/2", Gr 2

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

2шт.

24

126046A1

GASKET,287.02mm L

292 mm (11-1/2"), Cut from 1330108CX

2шт.

25

177141C1

PIN,15.88mm OD x 41mm L

2шт.

26

495-81175

WASHER,21/32" x 1" x .120"

4шт.

27

438-11616

LOCK PIN,1/4" x 1", Slotted

2шт.

28

1338021C1

PIN,7.94mm OD

2шт.

29

240586A2

SUPPORT

1шт.

30

240587A1

SUPPORT

1шт.

31

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

32

232-53116

FLANGE NUT,Flg, 1"-8

1шт.

33

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32" x 2-1/4" x 1/4"

2шт.

34

240613A2

SPACER

1шт.

35

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

36

433-872

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4 1/2", Gr 5

4шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

38

140767A2

HINGE

2шт.

39

140768A4

STEP

Incl 24

1шт.

40

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

40

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

41

231-5146

FLANGE NUT,3/8"-16

8шт.

42

416756A1

KIT

Slide Angle

1шт.

43

87409088

DEFLECTOR

Field Tracker

1шт.

Выбрано товаров: 49
