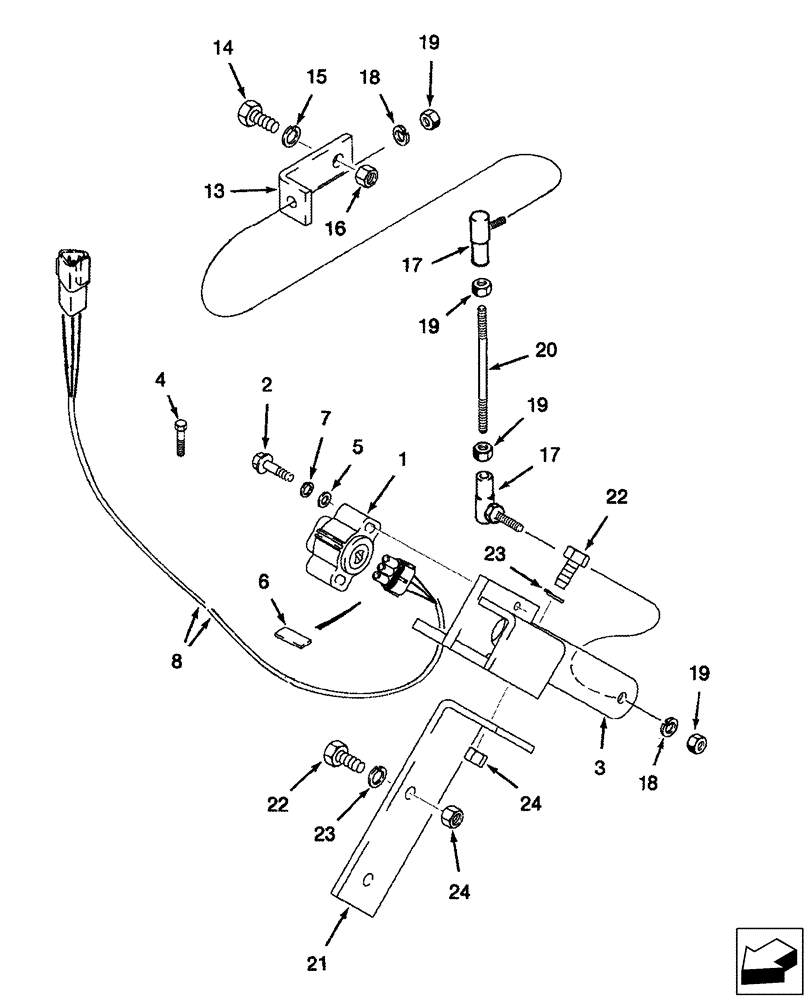

Запчасти Case IH 2577 (60.110.15) - FIELD TRACKER® - MOUNTING, POTENTIOMETER (60) - PRODUCT FEEDING

253107A1

SUPPORT

Field Tracker, Incl 1 - 7

2шт.

1

126771A1

POTENTIOMETER,4000 Ohm

Sensor, 4K

1шт.

2

463-31020

SCREW,Hex Wash Hd, #10-24 x 1 1/4"

2шт.

3

253108A1

BRACKET

1шт.

4

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

2шт.

5

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

2шт.

6

189728A1

LEVER

Activator

1шт.

7

492-11010

LOCK WASHER,#10

2шт.

8

253071A1

WIRE HARNESS

Sensor

1шт.

13

253109A1

SUPPORT

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

100282A1

BALL JOINT

1/4" NF

2шт.

18

492-11025

LOCK WASHER,1/4"

2шт.

19

425-114

NUT,1/4"-28, G5

4шт.

20

100281A1

STUD

1шт.

21

253076A1

SUPPORT

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

492-11031

LOCK WASHER,5/16"

4шт.

24

425-105

NUT,5/16"-18, G5

4шт.
