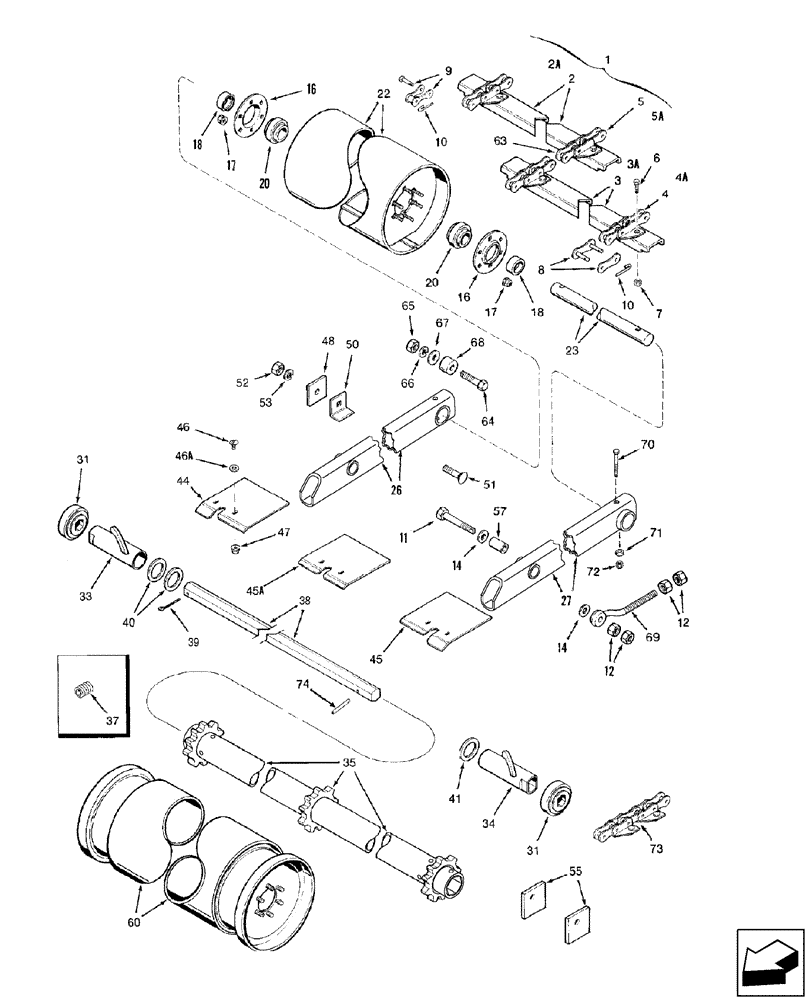

Запчасти Case IH 2577 (60.105.01) - FEEDER - CONVEYOR - 3 STRAND CONVEYOR CHAIN (60) - PRODUCT FEEDING

1

195666A2

CHAIN

Serrated Slats, Incl 2A, 3A (11 ea), 4 (2), 5, 8

1шт.

With 54-1/2" Feeder

1шт.

1

195670A2

KIT

Serrated Slats, Incl 2A, 3A (12 ea), 4A (2), 5A, 8

1шт.

With 60" Feeder

1шт.

2

196359A2

SLAT

Package, Serrated, RH, Incl (1) Slat & 6, 7 (4 ea)

1шт.

With 54-1/2" Feeder

1шт.

With 60" Feeder

1шт.

3

196360A3

SLAT

Package, Serrated, LH, Incl (1) Slat & 6, 7 (4 ea)

1шт.

With 54-1/2" Feeder

1шт.

With 60" Feeder

1шт.

4

1989520C1

CHAIN,A557, 69 Links x 41.4mm = 2856.6mm

End

2шт.

With 54-1/2" Feeder

1шт.

4a

118661A1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

A557, End

2шт.

With 60" Feeder

1шт.

5

1989519C1

CHAIN,A557, 69 Links x 41.4mm = 2856.6mm

Center

1шт.

With 54-1/2" Feeder

1шт.

5a

1989529C1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

Center

1шт.

With 60" Feeder

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

44-48шт.

7

1306680C1

FLANGE NUT

3/8"

44-48шт.

8

87283349

LINK,41.4mm Pitch

A557

3шт.

8a

87283351

LINK,Chain, 41.4mm Pitch

A557 Roller Link (Not Shown)

1шт.

9

87283350

LINK,41.4mm Pitch

A557

1шт.

10

1329837C2

PIN,2.63mm OD

2шт.

11

187218C2

BOLT

5/8" x 4-1/2"

2шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

14

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

6шт.

16

1330461C1

FLANGED BEARING

4шт.

17

1306680C1

FLANGE NUT

3/8"

12шт.

18

87431216

COLLAR,31.77mm ID x 44.45mm OD x 15.9mm W

2шт.

20

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

2шт.

22

1957438C1

DRUM

1шт.

23

187208C2

ROD

1шт.

26

1338287C3

ARM

Standard, LH

1шт.

27

1338288C3

ARM

Standard, RH

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

2шт.

33

87393048

SPACER

LH

1шт.

34

87393049

SPACER

RH

1шт.

35

87384169

SPROCKET ASSY.

, Serial Range: -HAJ301760

1шт.

35

87642397

SPROCKET ASSY.

, Start Serial: HAJ301760

1шт.

37

197643C1

SET SCREW

4шт.

38

389071A1

SHAFT

1756 mm (69-1/8")

1шт.

39

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

Used with 389071A1

1-2шт.

39

402485A1

PIN,9.53mm OD x 61mm L

1шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

, Serial Range: -HAJ301760

1шт.

40

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

1 for each end of Feeder Sprocket, Start Serial: HAJ301760

2шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

, Serial Range: -HAJ301760

1шт.

41

87665648

THRUST WASHER,44.45mm ID x 63.5mm OD x 1.56mm Thk

1 for each end of Feeder Sprocket, Start Serial: HAJ301760

2шт.

197161A2

PACKAGE

Incl 44 - 46, 47

1шт.

44

87523833

SUPPORT

LH

1шт.

45

87523842

SUPPORT

RH

1шт.

45a

87530580

STRIPPER

Center

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

46a

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

6шт.

47

231-5146

FLANGE NUT,3/8"-16

6шт.

48

187347C1

PLATE

2шт.

Without Stone Retarder

1шт.

50

1345418C2

BRACKET

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

2шт.

52

425-1010

NUT,5/8"-11, G5

6шт.

53

492-11062

BEARING WASHER,5/8"

2шт.

55

187225C1

BAR

2шт.

With Stone Retarder

1шт.

57

87036417

SPACER,16.69mm ID x 22.23mm OD x 46.02mm L

2шт.

60

196409A2

DRUM,273.1mm OD x 1057mm L

1шт.

With Stone Retarder

1шт.

63

1989692C1

LINK,A557, 3 Links

Attaching

1шт.

64

189709C1

BOLT,Hex, 1/2" - 13 x 3"

2шт.

65

425-108

NUT,1/2" - 13, Gr 5

2шт.

66

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

67

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

68

197211C1

SPACER

2шт.

69

176508C1

BOLT,5/8" - 11 x 228.60mm

2шт.

70

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

2шт.

71

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

2шт.

72

231-1446

NUT,3/8" - 16, Gr 5

2шт.

73

305191A1

CHAIN,A557, 5 Links x mm = mm

Three Strand Feeder Chain, Service Repair Only

1шт.

74

402485A1

PIN,9.53mm OD x 61mm L

1шт.
