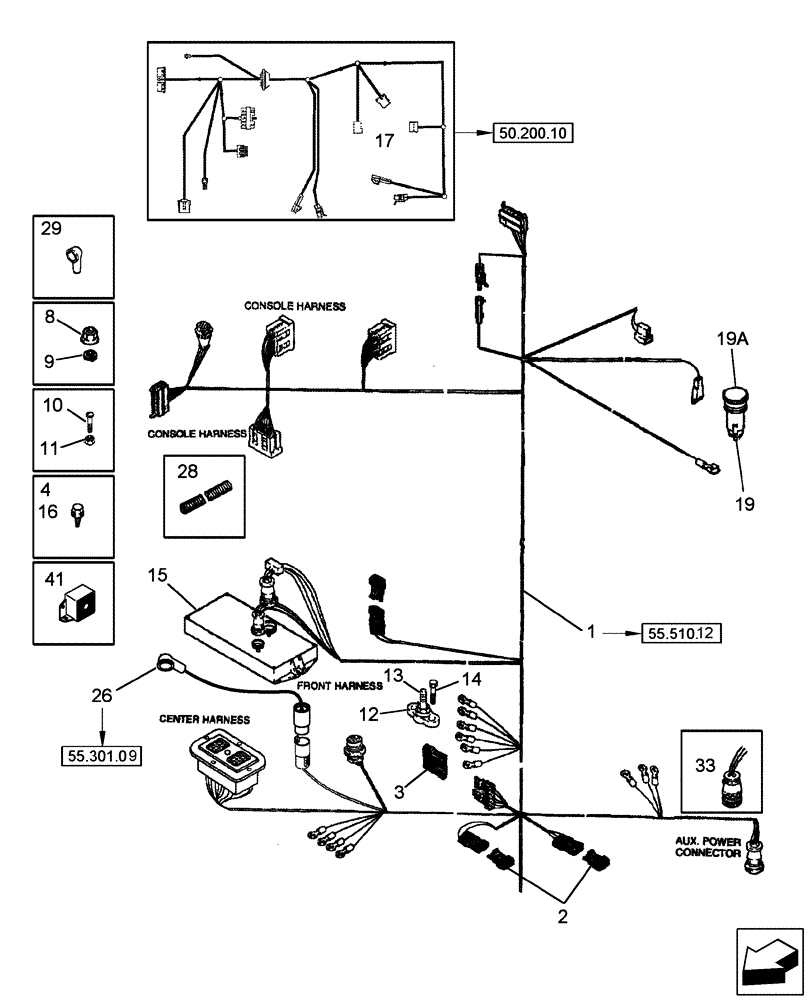

Запчасти Case IH 2577 (55.510.11) - HARNESS - CAB, LOWER REAR (55) - ELECTRICAL SYSTEMS

1

87379845

HARNESS

Cab

1шт.

2

A187874

MODULE

Unloader Auger, Concave Clearance Request

2шт.

3

127290A1

DIODE

Rotor/Fan Speed Request

1шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Bulkhead Connector

4шт.

8

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

3шт.

10

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

4шт.

11

231-14106

NUT,#6-32, GB

4шт.

12

303717A1

JUNCTION BLOCK

Switched, B+, Incl 13, (1) 113-235

2шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

15

239938A8

CONTROL

Header

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 239938A8

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

17

431091A1

WIRE HARNESS

Heating and Air Conditioning, Component of 431088A2

1шт.

19

432212A1

CIGAR LIGHTER

Socket Assy

1шт.

19a

190812A1

COVER

Cigar Lighter

1шт.

26

87306774

WIRE HARNESS

Cab Power

1шт.

28

236586A1

CONDUIT

990 mm (39")

1шт.

29

399470R1

BOOT

1шт.

33

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

Note: Order to use with add-on radios, phones, and other accessories

1шт.

35

83822C1

TAPE

610 mm (24"), Cut from 1954475C1 (Not Shown)

2шт.

311906A1

KIT

Cab Power, Incl 37 - 39, (Not Shown)

1шт.

Note: If broken or loose cab power may be lost and emergency parking brake will engage. Purchase 311906A1 kit to repair

1шт.

37

277424A1

CONNECTOR, ELEC

CONNECTOR (Not Shown)

1шт.

38

277431A1

CONNECTOR, ELEC

CONNECTOR (Not Shown)

1шт.

39

311905A1

TOOL

(Not Shown)

1шт.

40

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (Not Shown)

3шт.

41

L112318

ALARM

Back Up

1шт.
