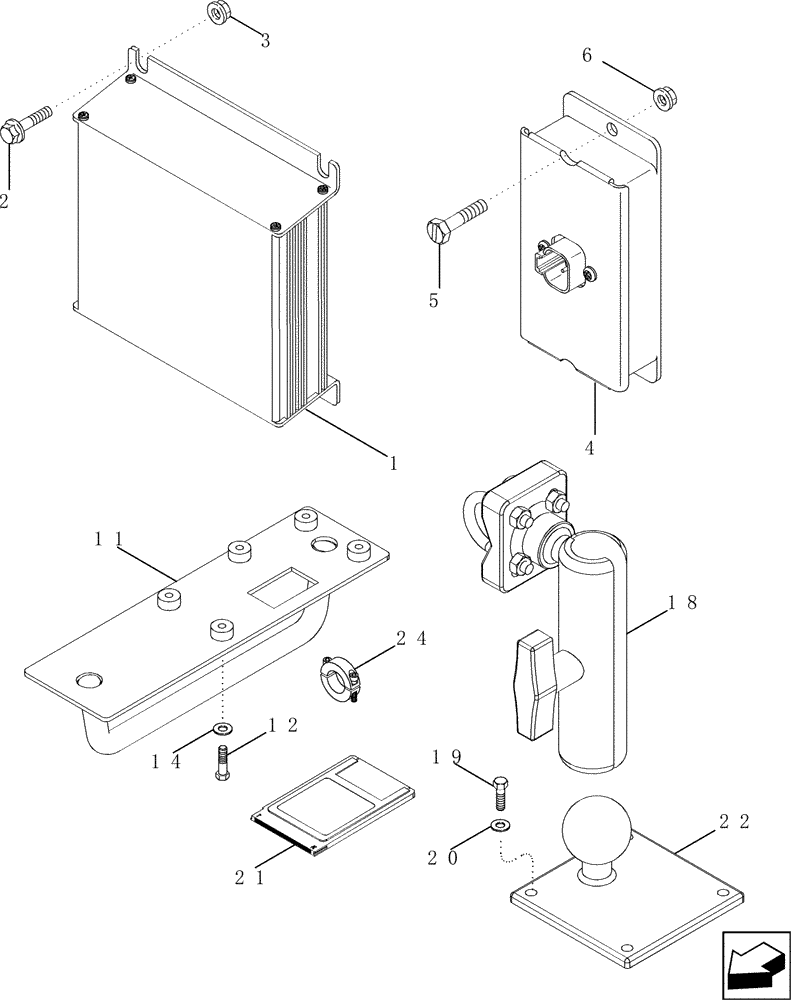

Запчасти Case IH 2577 (55.440.15) - AFS YIELD MONITOR INTERFACE UNIT PACKAGE (55) - ELECTRICAL SYSTEMS

87538449

PACKAGE,SERVICE

Yield Monitor Interface Unit

1шт.

1

86976394

ECU

MONITOR - Yield Monitor Interface Unit without Software

1шт.

1

86976394R

REMAN ELECT CONTROL

2577 AXIAL-FLOW COMBINE (NA) ASN HAJ0300001, MONITOR - Yield Monitor Interface Unit without Software (10/06-)

1шт.

1

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

4

284638A2

ELEC CONNECTOR,4 Pin

Terminator

2шт.

5

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

2шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

5шт.

7

87383497

WIRE HARNESS

Main Yield Monitor Interface Unit Exterior

1шт.

8

87384930

WIRE HARNESS

Yield Monitor Cab Display (Not Shown)

1шт.

9

105849A1

RELAY

20 amp, Continuous Duty (Not Shown)

1шт.

10

121412A1

FUSE,10A, Mini, Red

(Not Shown)

2шт.

10

121410A1

FUSE,5A, Mini, Tan

(Not Shown)

1шт.

11

87387000

BRACKET

1шт.

12

276-14520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

5шт.

13

131-893

CLIP,#10 - 24

(Not Shown)

2шт.

14

495-31022

WASHER,#10

5шт.

15

318575A1

WIRE HARNESS

Yield Sensor (Not Shown)

1шт.

16

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP (Not Shown)

12шт.

17

232801A1

DOOR SEAL

1016 mm (40") long (Not Shown)

1шт.

18

87386396

MOUNT

Mount Color Display

1шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

87341265

SOFTWARE

128 MB Compact Flash with Adapter

1шт.

22

87386398

SUPPORTING ARM

Ram Square Mount

1шт.

23

435831A1

FASTENER

Velcro (Not Shown)

1шт.

24

87602486

COLLAR

, Start Serial: HAJ300532

1шт.
