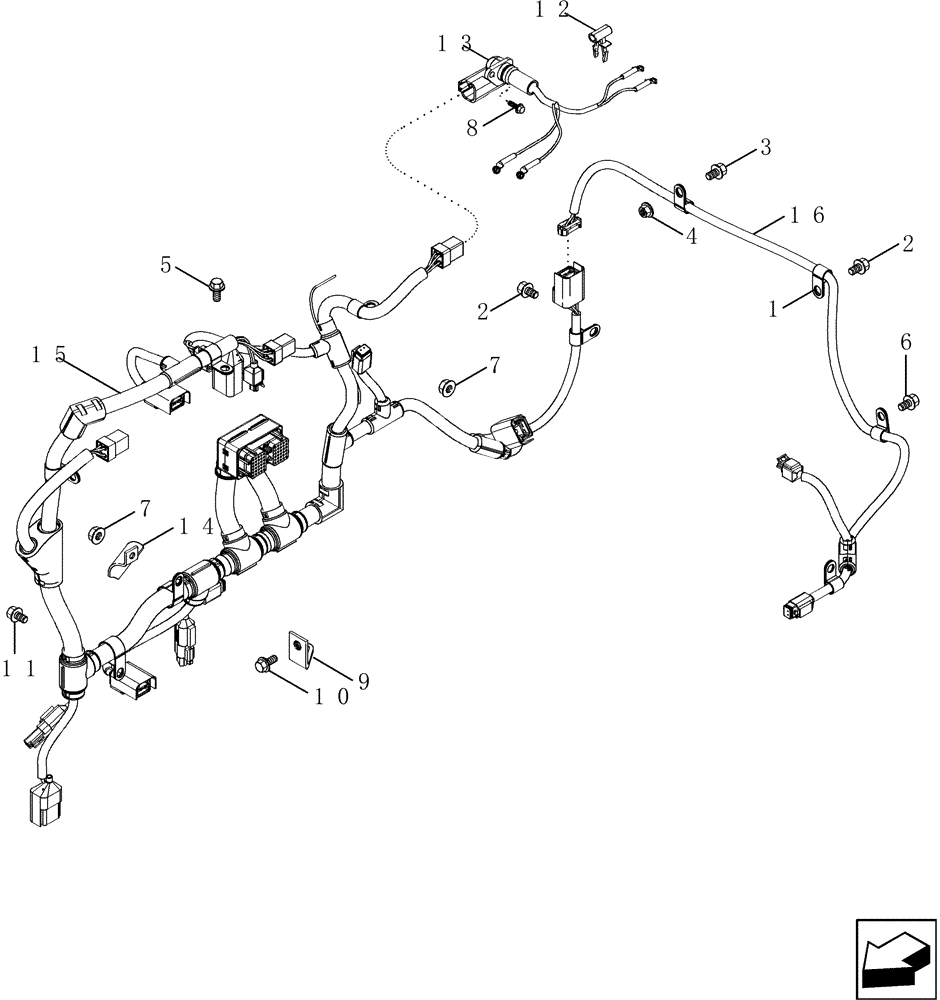

Запчасти Case IH 2577 (55.440.04) - HARNESS - ENGINE CONTROL MODULE (55) - ELECTRICAL SYSTEMS

1

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

2

313490A1

BOLT

M10 x 14

2шт.

3

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

5

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

6

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12

1шт.

7

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

3шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

3шт.

9

J919294

SUPPORT

Tube Fuel Supply

1шт.

10

87346341

BOLT,Hex Flng, M5 x 0.8 x 12mm, Cl 10.9

1шт.

11

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16: 10.9

1шт.

12

87346212

CLIP, WIRE

8шт.

13

87346235

WIRE HARNESS

Injector

3шт.

14

87346319

BRACE

1шт.

15

87481082

WIRE HARNESS

Temp Sensor

1шт.

16

87750207

HARNESS

Engine ECM

1шт.
