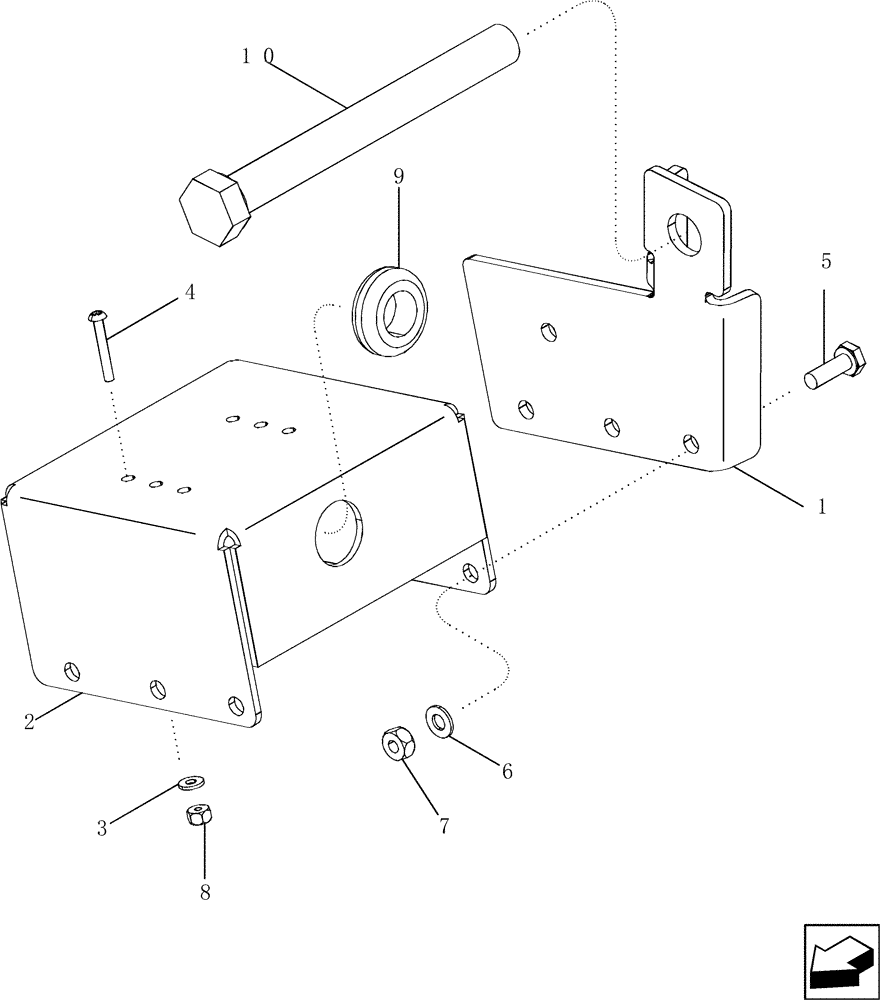

Запчасти Case IH 2577 (55.418.07[02]) - STEERING SENSOR BRACKET, AUTO GUIDANCE, NON-POWER GUIDE AXLE - ASN HAJ303001 (55) - ELECTRICAL SYSTEMS

1

87567148

SUPPORT

1шт.

2

87552616

BRACKET

1шт.

3

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

6шт.

4

281045

SCREW,Cross Pan Hd, #6 - 32 x 1"

6шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

4шт.

6

495-81102

WASHER,.266" x 1/2" x .060"

4шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

231-14106

NUT,#6-32, GB

6шт.

9

87307909

GROMMET

1шт.

10

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

1шт.
