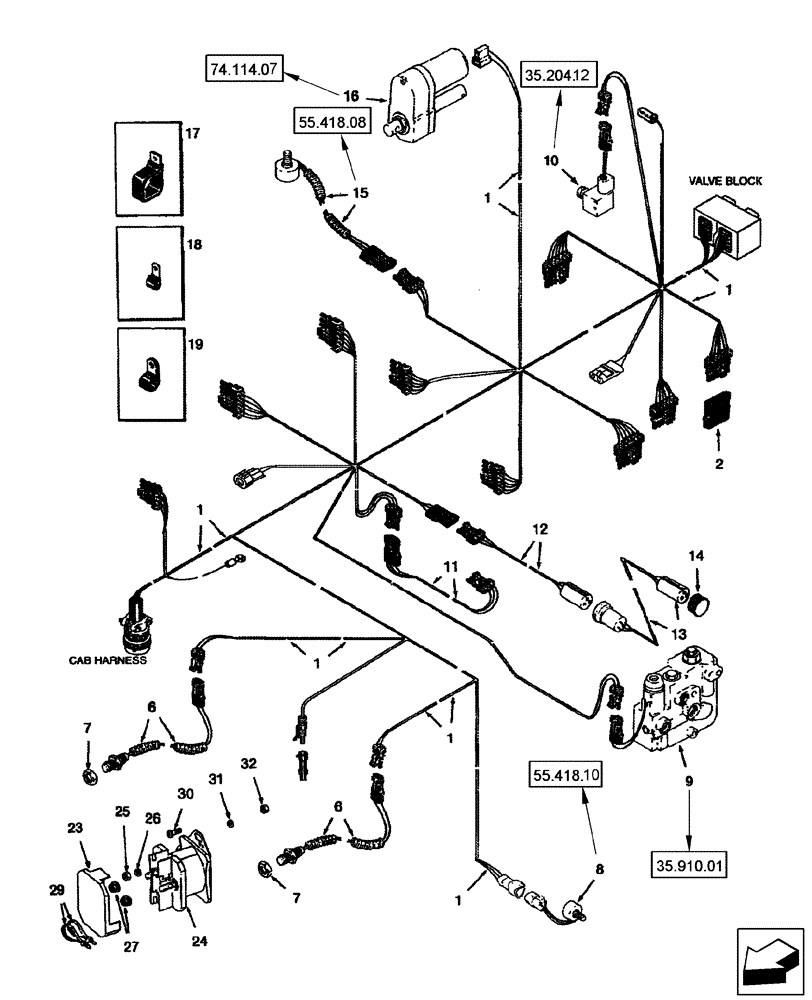

Запчасти Case IH 2577 (55.100.11) - HARNESS - FRONT (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87309736
WIRE HARNESS
Front, Incl 2 - 4
1шт.
2
127290A1
DIODE
1шт.
3
187308A1
CAP
(Not Shown)
6шт.
4
187309A1
BAR
Splice, (Not Shown)
6шт.
6
245193C2
SENSOR
Rotor Speed, Feeder Speed
2шт.
7
425-1512
JAM NUT,Jam, 3/4"-10, G5
2шт.
8
122756A3
POTENTIOMETER,1000 Ohm, 8V
1K, Feeder Position, For Mounting
1шт.
9
87374793
VALVE
Reel Drive
1шт.
10
368154A1
CONTROL VALVE
Accumulator
1шт.
11
142570A1
WIRE HARNESS
Header Lighting
1шт.
12
142553A1
WIRE HARNESS
Automatic Header Height Control
1шт.
13
1331312C1
WIRE HARNESS
Extension, Header Height Control, If Used
1шт.
14
225290C1
DUST CAP
Header Height Control Harness
1шт.
15
122756A3
POTENTIOMETER,1000 Ohm, 8V
1K, Concave Position, For Mounting
1шт.
16
143239A2
MOTOR, ELECTRIC
Concave Control, For Mounting
1шт.
16
143239A2R
REMAN-ELECTRIC MOTOR
2577, ASN HAJ0300001
1шт.
16
143239A2C
CORE-ELECTRIC MOTOR
Return Number
1шт.
17
1301387C2
CLIP
2" ID
1шт.
18
516-23127
CLAMP,9/16", Insul, 3/8" Bolt
6шт.
18
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
1шт.
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
1шт.
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
19
515-23254
CLAMP,1", Insul, 3/8" Bolt
1шт.
20
844-8025
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
(Not Shown)
1шт.
21
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
(Not Shown)
1шт.
22
142533A1
SUPPORT
(Not Shown)
1шт.
With Field Tracker
1шт.
With Accumulator
1шт.
178149A1
SOLENOID SWITCH
Incl 23 - 29
1шт.
23
178148A1
COVER
1шт.
24
183038A1
SOLENOID
1шт.
26
492-11010
LOCK WASHER,#10
1шт.
27
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
27
825-2405
FLANGE NUT,M5 x .8, Flg, Cl 8
Harness to Solenoid Terminal 50
1шт.
28
892-11005
LOCK WASHER,M5
(Not Shown)
1шт.
29
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP 15"
2шт.
29
435437A1
CABLE TIE,3/16" x 7 1/4"
CABLE STRAP
5шт.
30
281-1458
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
2шт.
32
425-105
NUT,5/16"-18, G5
2шт.
33
492-11010
LOCK WASHER,#10
1шт.
Выбрано товаров: 43
