(50.200.04) - HEATING SYSTEM - CAB/CHASSIS CONNECTIONS TO ENGINE

Запчасти Case IH 2577 (50.200.04) - HEATING SYSTEM - CAB/CHASSIS CONNECTIONS TO ENGINE (50) - CAB CLIMATE CONTROL

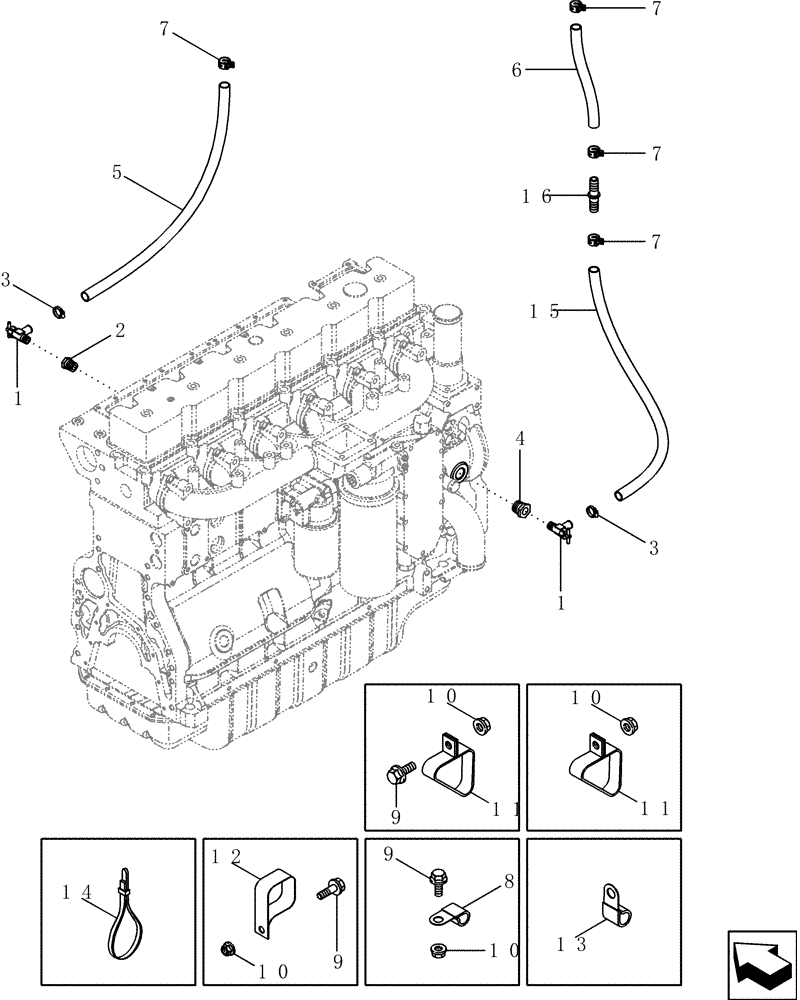

Схема запчастей Case IH 2577 - (50.200.04) - HEATING SYSTEM - CAB/CHASSIS CONNECTIONS TO ENGINE (50) - CAB CLIMATE CONTROL
9
7
10
15
14
10
11
5
10
4
2
7
1
9
1
11
13
16
7
8
10
12
9
6
7
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

301803R1

SHUT-OFF VALVE

2шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

5

87106559

HOSE, BULK,15.50 mm ID x 4450.00 mm

HOSE, METERS 4470 mm (176"), Cut from 97252CX

1шт.

6

1324999C2

HOSE,15.50 mm ID x 6731.00 mm

Cut from 97252CX

1шт.

7

1954736C1

HOSE CLAMP,#24

4шт.

8

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

11

1994983C2

CLAMP

3шт.

12

1301387C2

CLIP

2" ID

5шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

14

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

15

1975734C1

HEATER HOSE,15.50 mm ID x 250.00 mm

Cut from 97252CX

1шт.

16

1301342C1

FITTING

Connector

1шт.
