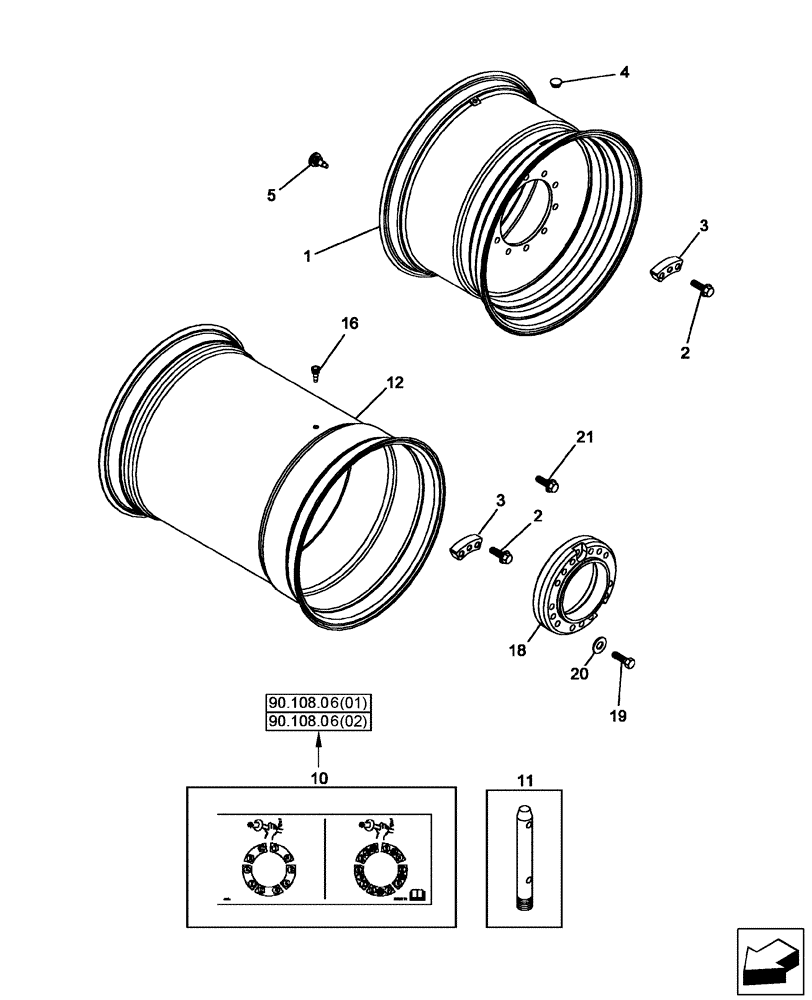

Запчасти Case IH 2577 (44.511.01) - WHEELS - DRIVE - SINGLE (44) - WHEELS

1

87393349

WHEEL ASSY

24.5 x 32" Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

87393052

WHEEL ASSY

Used with Bias 30.5L x 32" Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

87393054

WHEEL ASSY

30.5 L R32 Tire, 800/65 - R32 Tire

2шт.

With 10 Bolt Mounting

1шт.

2

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

Flange, M22 x 75, 12.9, Qty 20 with Bias Tires

30шт.

3

87598803

PLATE

Wheel Mounting Spacer

10шт.

4

87106340

PLUG

Used with Tubeless Tires, If Used

2шт.

5

87106339

VALVE STEM

Used with Tubeless Type Tires

2шт.

10

87570139

DECAL

Bolt Torque, Single Drive Wheel

2шт.

11

87283521

STUD,M22 x 180

Drive Wheel Starter

2шт.

12

86996678

WHEEL ASSY

76 x 50", 16 pr hf 3 Hi-Flotation Tire

2шт.

16

86997685

TIRE TUBE

Used with Tube Type Tires

2шт.

18

87398579

SPACER

76 mm

2шт.

19

87515082

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

M22 x 130, 10.9

30шт.

20

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

23 x 37 x 5 mm

30шт.

21

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

4шт.
