Запчасти Case IH 2577 (44.151.10) - AXLE, ADJUSTABLE - STEERING KNUCKLE, HUB AND WHEELS (44) - WHEELS

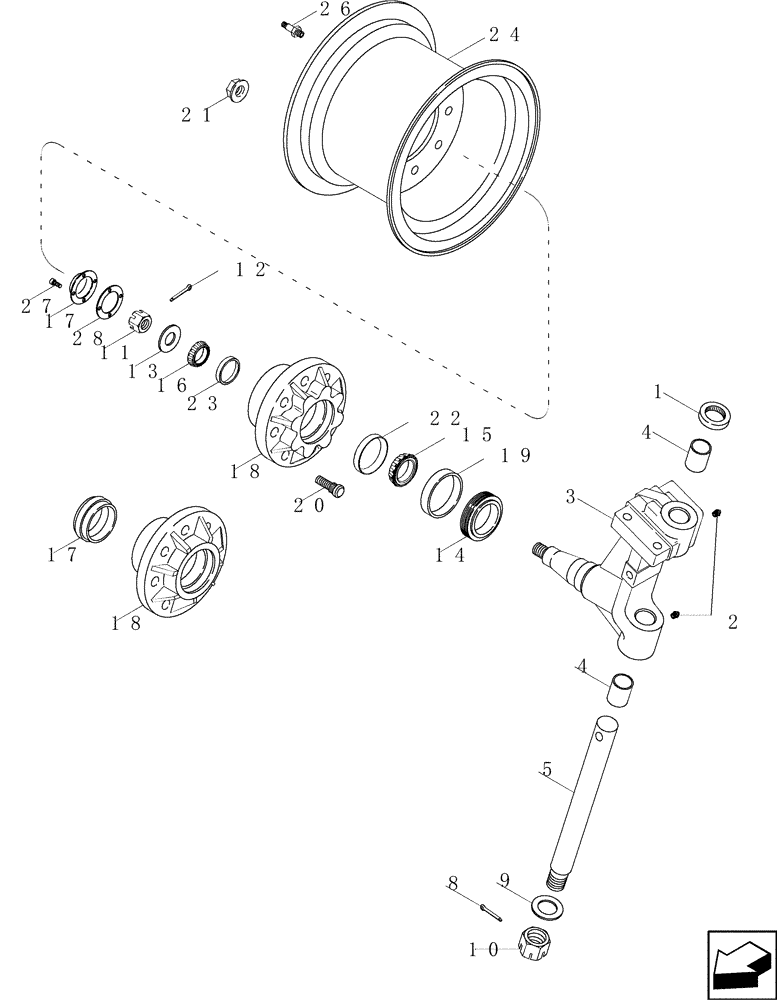

Схема запчастей Case IH 2577 - (44.151.10) - AXLE, ADJUSTABLE - STEERING KNUCKLE, HUB AND WHEELS (44) - WHEELS
21
15
8
12
4
2
11
3
9
10
23
22
4
18
16
28
27
5
24
17
19
20
26
13
1
17
18
14

Артикул

Название

Примечание

Количество

1

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

87531015

KNUCKLE

ASSY. LH, Incl 4

1шт.

With 92 - 120" Adjustable Axle

1шт.

3

87531020

KNUCKLE

ASSY. LH, HD, Incl 4

1шт.

With 120 - 144" Adjustable Axle

1шт.

3

87531017

KNUCKLE,RH

ASSY. RH, Incl 4

1шт.

With 92 - 120" Adjustable Axle

1шт.

3

87531030

KNUCKLE

ASSY. RH, HD, Incl 4

1шт.

With 120 - 144" Adjustable Axle

1шт.

4

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

2шт.

5

186052C1

PIN,50.8mm OD x 508mm L

2шт.

8

425-1224

SLOTTED NUT,1 1/2"-6, G5

2шт.

9

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

2шт.

11

425-1316

NUT,1"-14, G5

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

13

435688A1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32" x 2-1/4" x 1/4"

2шт.

14

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

2шт.

With 92 - 120" Adjustable Axle

1шт.

14

430139A1

SEAL,72.87mm ID x 97.43mm OD x 7.24mm Thk

2шт.

With 120 - 144" Adjustable Axle

1шт.

15

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16" ID

2шт.

With 92 - 120" Adjustable Axle

1шт.

15

384546A1

ROLLER BEARING,55mm ID x 29mm W

2-5/32" ID

2шт.

With 120 - 144" Adjustable Axle

1шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8" ID

2шт.

17

84097561

HUB CAP

2шт.

18

87307671

HUB

Assy, Incl 19 - 23

2шт.

With 92 - 120" Adjustable Axle

1шт.

18

87307670

HUB

Assy, Heavy Duty, Incl 19 - 23

1шт.

With 120 - 144" Adjustable Axle

1шт.

19

169328C1

SLEEVE

1шт.

With 92 - 120" Adjustable Axle

1шт.

19

430141A2

SLEEVE

Heavy Duty

1шт.

With 120 - 144" Adjustable Axle

1шт.

20

431727A2

BOLT

5/8" x 2-9/16"

8шт.

21

401846A1

FLANGE NUT

5/8" NF; 8

8шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

1шт.

With 92 - 120" Adjustable Axle

1шт.

22

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

Heavy Duty

1шт.

With 120 - 144" Adjustable Axle

1шт.

23

663558R1

BEARING CUP

2-57/64" OD

1шт.

24

192201A2

WHEEL

12 x 24, Heavy Duty, For 14.9 x 24" Tire

2шт.

24

417734A1

WHEEL

15 x 24, For 480/70 R24 Tire

2шт.

26

179482C1

VALVE STEM

7/16" dia

2шт.

26

407184R1

VALVE

Core

2шт.

27

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

8шт.

28

743583

GASKET,0.8mm Thk

2шт.

Выбрано товаров: 49
