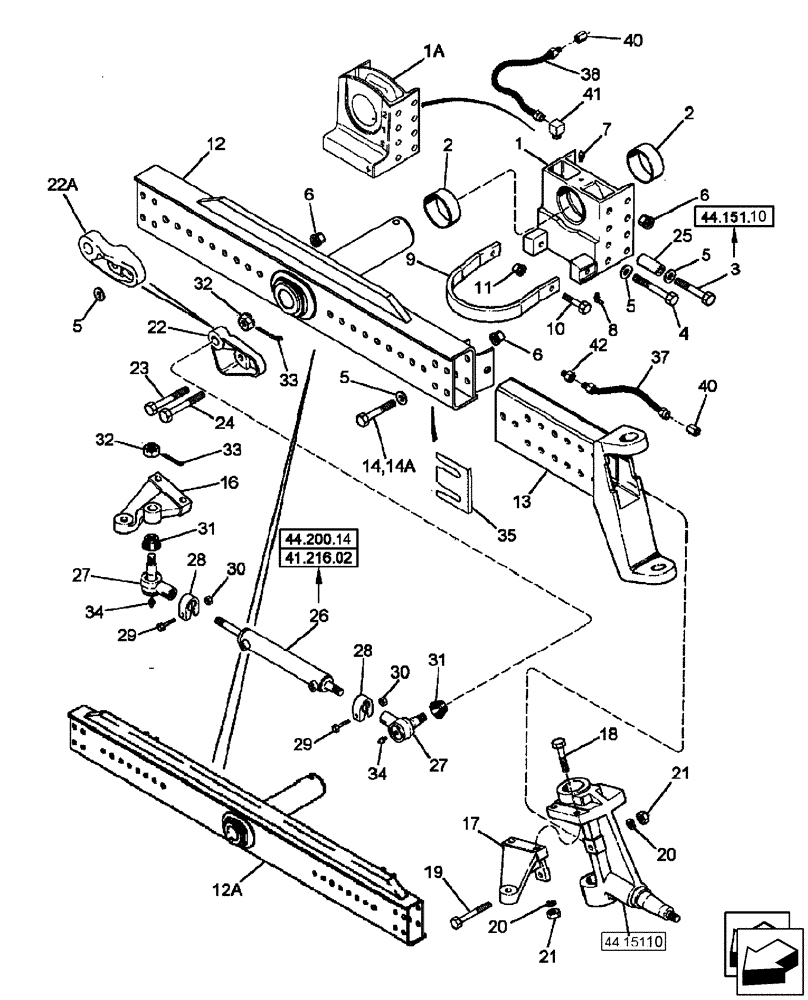

Запчасти Case IH 2577 (44.151.04) - AXLE, ADJUSTABLE STEERING, SINGLE CYLINDER (44) - WHEELS

1

186599C94

SUPPORT

Axle Pivot, Incl 2

1шт.

With Hillside Option

1шт.

1a

386235A2

SUPPORT

Incl 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

3

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

3

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

6шт.

4

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

6

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

1шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

1302625C1

CHANNEL

Tow 249 mm wide, 13 mm Drop

1шт.

Use with 186599C94

1шт.

10

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

Use with 186599C94

1шт.

11

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

2шт.

Use with 186599C94

1шт.

12

243747A2

AXLE

Adjustable, 92 - 120"

1шт.

12a

321534A2

AXLE

Adjustable, Serial Range: 120-144"

1шт.

13

186045C4

AXLE

2шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

14

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

Australia Only

2шт.

14a

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

16

87545464

SUPPORTING ARM

LH, For Single And Dual Cylinder Axles 90-120 adj and 120-144

1шт.

17

87545463

ARM

RH,For Single And Dual Cylinder Axles 90-120 adj and 120-144

1шт.

18

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

19

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

20

492-11062

BEARING WASHER,5/8"

6шт.

21

429-1010

NUT,5/8"-11, G8

6шт.

22

133319A1

SUPPORT

Steering Cylinder, RH

1шт.

With 92 - 120" Adjustable Axle

1шт.

22a

87530632

SUPPORT

Steering Cylinder, LH, Serial Range: -HAJ301663

1шт.

With 120 - 144" Adjustable Axle

1шт.

22a

87629009

BRACKET

Steering Cylinder, LH, Start Serial: HAJ301663

1шт.

With 120 - 144" Adjustable Axle

1шт.

23

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

1шт.

24

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

1шт.

25

177748C1

SPACER

13/16" x 1-1/4" x 2-13/16"

8шт.

26

87337226

CYLINDER,Double Acting, 25.4mm Rod, 228.6mm Stroke

Steering

1шт.

87337226R

REMAN-HYD CYLINDER

2577 AXIAL-FLOW COMBINE (NA) ASN HAJ0300001 ( 10/06 - )

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

26

87337229

CYLINDER

Steering

1шт.

27

437222A1

BALL JOINT

Incl 28 - 34

2шт.

28

446308C91

CLAMP

Incl 29, 30

1шт.

29

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

1шт.

30

231-4117

LOCK NUT,7/16"-14, GB

1шт.

31

87301009

BOOT

End

1шт.

32

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

33

432-816

COTTER PIN,1/8" x 1"

1шт.

34

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

35

236028A2

SHIM,127mm OD x 0.9mm Thk

1шт.

37

428853A1

FLEXIBLE HOSE

1282 mm (50")

1шт.

38

428285A1

FLEXIBLE HOSE

1129 mm (44")

1шт.

40

F53473

LOCK NUT,1/8-27 NPSM

1/8"

2шт.

41

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

42

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

86987811

SERVICE KIT

7/8" Stud Treads Conversion, Incl 16, 17, 18, 19, 21, 86984114

1шт.
