Запчасти Case IH 2577 (44.151.02) - AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - SINGLE STEERING CYLINDER (44) - WHEELS

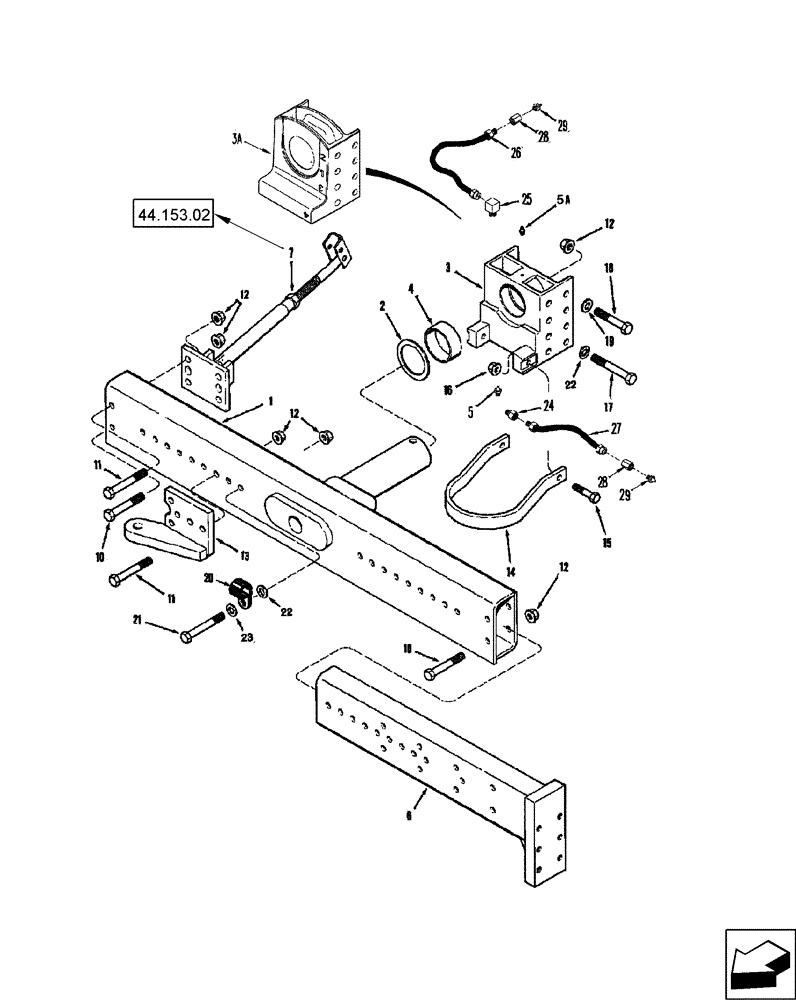

Схема запчастей Case IH 2577 - (44.151.02) - AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - SINGLE STEERING CYLINDER (44) - WHEELS
21
25
22
16
1
13
23
14
17
12
11
15
5a
22
12
11
3a
24
28
12
29
10
3
7
18
2
19
6
28
26
5
44.153.02
12
10
20
29
27
4

Артикул

Название

Примечание

Количество

1

413204A1

AXLE

Adjustable, Serial Range: 108-144"

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

4шт.

3

186599C94

SUPPORT

Axle Pivot, Incl 4

1шт.

With Hillside Option

1шт.

3a

386235A2

SUPPORT

Axle Pivot, Incl 4

1шт.

Without Hillside Option

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

6

1968992C1

AXLE

, Serial Range: 108-144"

2шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT ASSY

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

11шт.

11

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

1шт.

13

1968993C1

SUPPORT

1шт.

14

1979114C1

STRAP

Tow, 51 mm Drop

1шт.

Use with 186599C94

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

Use with 186599C94

1шт.

16

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

Use with 186599C94

1шт.

17

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

3шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

5шт.

20

195618A1

CLAMP

1-7/8" ID

1шт.

21

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

22

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

3шт.

23

495-11081

WASHER,3/4", SAE

1шт.

24

219-418

ADAPTER,1/4"-1/8 NPTF

Hose

1шт.

25

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

26

428285A1

FLEXIBLE HOSE

Grease, 1186 mm (46-3/4")

1шт.

27

428853A1

FLEXIBLE HOSE

Grease, 1282 mm (50")

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8"

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

Выбрано товаров: 33
