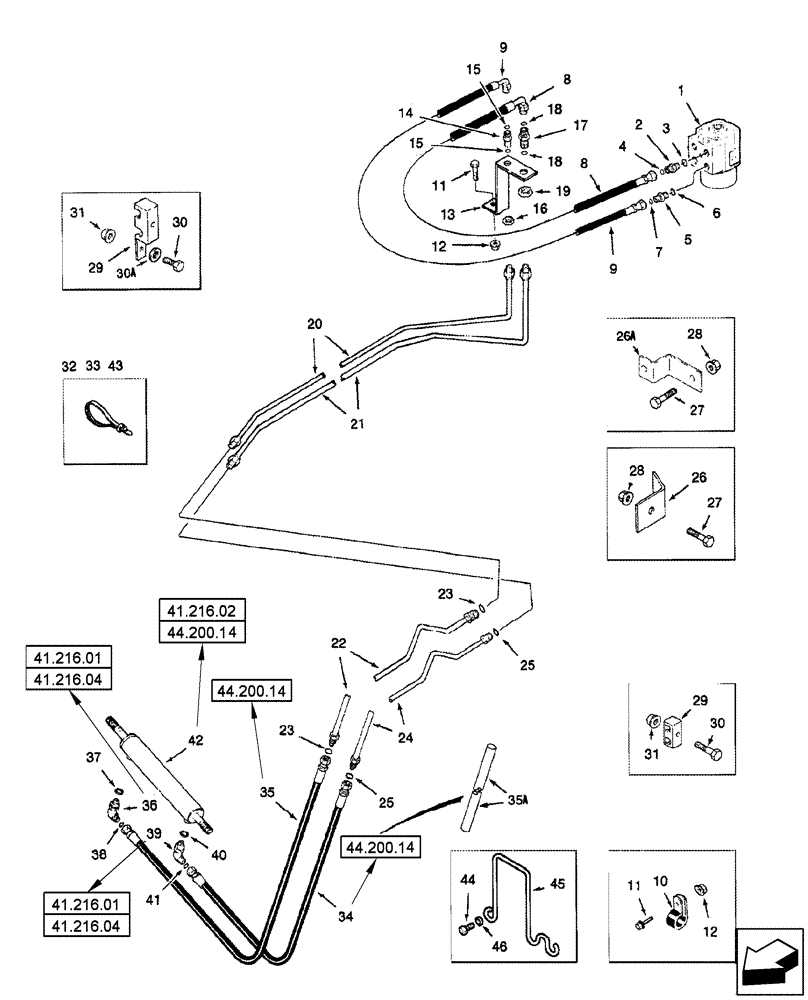

Запчасти Case IH 2577 (41.204.02) - HYDRAULICS - STEERING PUMP TO CYLINDER (41) - STEERING

1

387542A1

HYDRAULIC VALVE

Steering, With Single Steering Cylinder, Component Parts Not Serviced Separately

1шт.

1

433742A1

HYDRAULIC VALVE

Steering, With Dual Steering Cylinders, Component Parts Not Serviced Separately

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

Incl 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

128017A2

FLEXIBLE HOSE

2670 mm (105"), LH Turn

1шт.

9

128019A2

FLEXIBLE HOSE

2670 mm (105"), RH Turn

1шт.

10

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

128539A1

SUPPORT

1шт.

14

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Incl 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

17

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Incl 18

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

20

128571A1

TUBE,0.375" OD, 1911,264 mm Length

9.52 mm dia, Upper Front

1шт.

21

128572A1

TUBE,0.5" OD, 1696,984 mm Length

12.70 mm dia, Lower Front

1шт.

22

364369A1

TUBE

Upper Rear

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

364370A1

TUBE

Lower Rear

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

178960C1

BRACKET

1шт.

26a

196517C1

SUPPORT TUBE

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

29

1316613C1

CLAMP

5шт.

30

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

5шт.

30a

495-81121

WASHER,.344" x 1 1/2" x .060"

6шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

32

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

33

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

34

128083A2

FLEXIBLE HOSE

1727 mm (68"), To Cylinder Closed End

1шт.

With 92 - 120" Adjustable Axle

1шт.

34

128084A2

FLEXIBLE HOSE

1960 mm (77-1/8"), To Cylinder Closed End

1шт.

With Power Guide Axle

1шт.

With 120 - 144" Adjustable Axle

1шт.

35

128088A2

FLEXIBLE HOSE

1956 mm (77"), To Cylinder Rod End

1шт.

With 92 - 120" Adjustable Axle

1шт.

35

87564463

HOSE ASSY.

2160 mm (85"), To Cylinder Rod End

1шт.

With Power Guide Axle

1шт.

With 120 - 144" Adjustable Axle

1шт.

35a

229298A1

BOOT

1шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 37, 38, Single Steering Cylinder

1шт.

36

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Dual Steering Cylinder

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 40, 41, Single Steering Cylinder

1шт.

39

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Dual Steering Cylinder

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

87337226

CYLINDER,Double Acting, 25.4mm Rod, 228.6mm Stroke

64 ID x 229 mm strk, Single Steering

1шт.

87337226R

REMAN-HYD CYLINDER

2577 AXIAL-FLOW COMBINE (NA) ASN HAJ0300001 ( 10/06 - )

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

42

87337229

CYLINDER

57 ID x 229 mm strk, Dual Steering

2шт.

43

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP (711 mm)

1шт.

43

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

45

232707A1

GUIDE

1шт.

46

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

47

231-5146

FLANGE NUT,3/8"-16

(Not Shown)

2шт.

44

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
