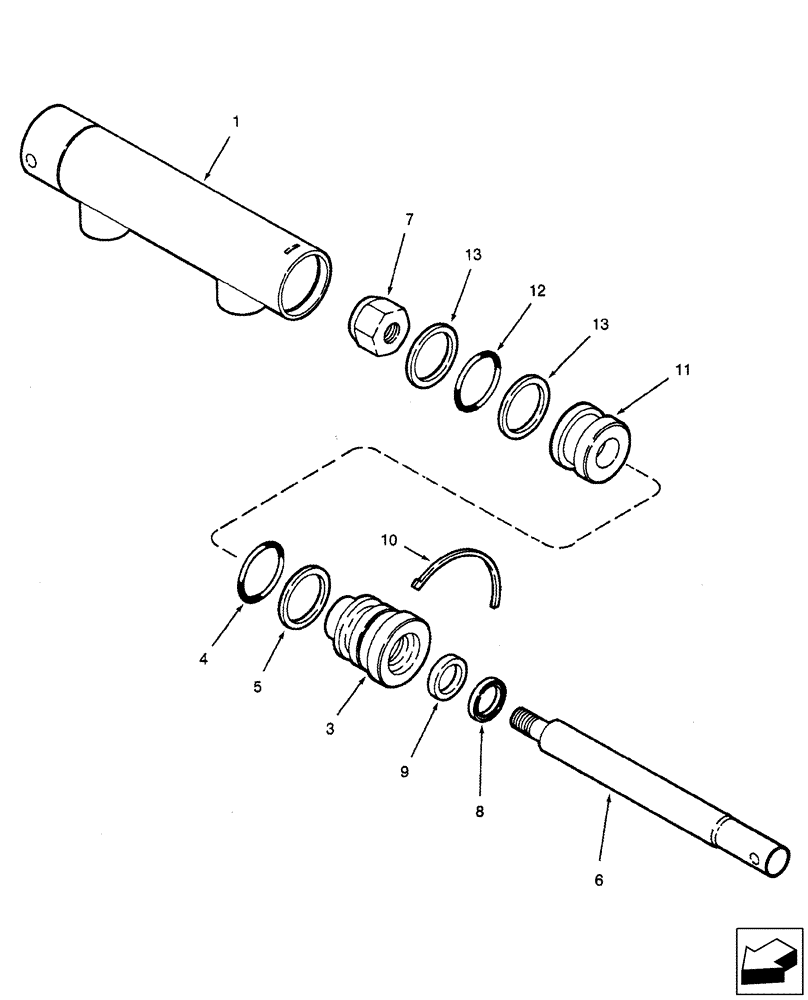

Запчасти Case IH 2577 (35.780.10) - CYLINDER ASSY - FEEDER CLUTCH (35) - HYDRAULIC SYSTEMS

133405C92

CYLINDER

51 ID x 63 mm strk, Feeder Clutch, Incl 1 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

2577 AXIAL-FLOW COMBINE (NA) ASN HAJ0300001, 51 ID x 63 mm strk, Feeder Clutch (10/06-), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order 133405C92

1шт.

3

108641C1

GLAND

1шт.

4

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

5

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

1шт.

6

108639C1

PISTON ROD

1шт.

7

231-41310

LOCK NUT,5/8"-11, GB

1шт.

8

532773R1

WIPER SEAL

1шт.

9

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1шт.

10

140600C1

RETAINING WIRE

1шт.

11

108640C2

PISTON

1шт.

12

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

13

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

2шт.

63884C92

SEAL KIT

Incl 4, 5, 8-10, 12, 13

1шт.
