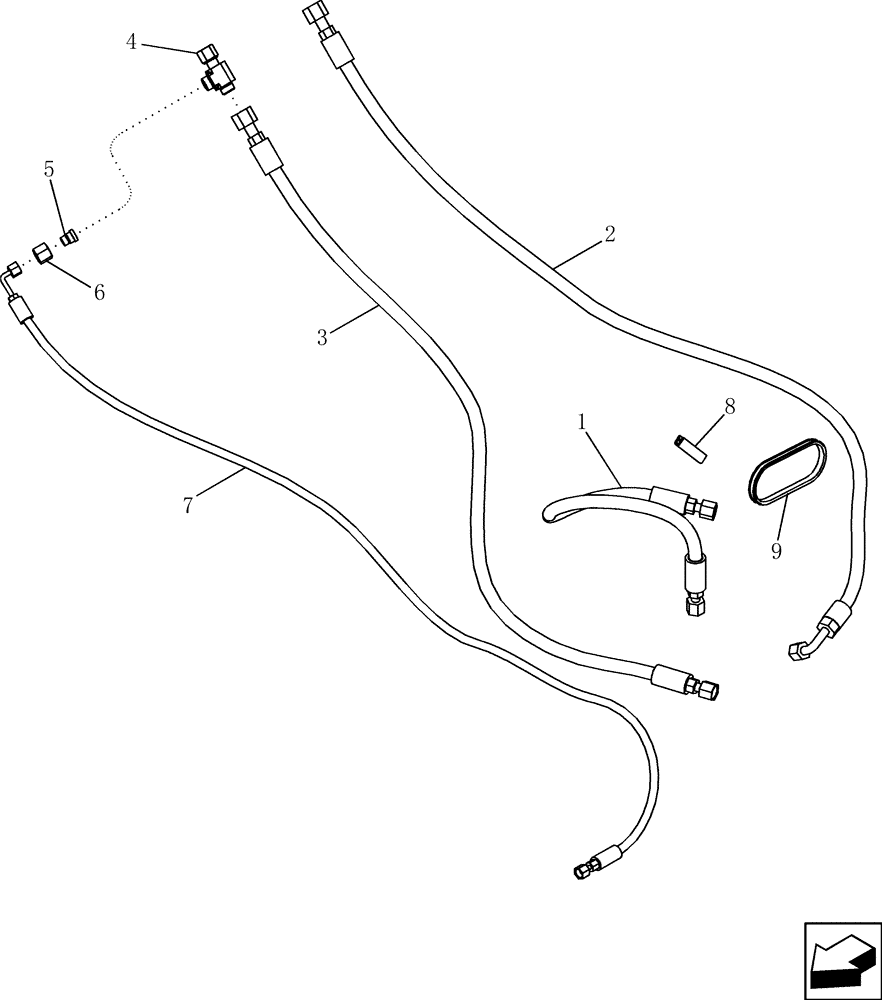

Запчасти Case IH 2577 (35.752.06) - HYDRAULICS - ROTARY AIR SCREEN VACUUM (35) - HYDRAULIC SYSTEMS

1

87358031

HOSE ASSY.

Supply

1шт.

2

87358033

HOSE ASSY.

Return

1шт.

3

87358032

HOSE ASSY.

Drain

1шт.

4

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

1шт.

5

201-110

REDUCER,9/16" - 18 Male ORFS x 13/16" - 16 Female ORFS

1шт.

6

203-902

TUBE NUT,13/16"-16 ORFS

1шт.

7

391541A1

FLEXIBLE HOSE

Rotary Screen, Serial Range: Tube-Valve

1шт.

8

122150A1

PROTECTION STRIP

1шт.

9

87582269

DUCT

Edge Guard

1шт.
