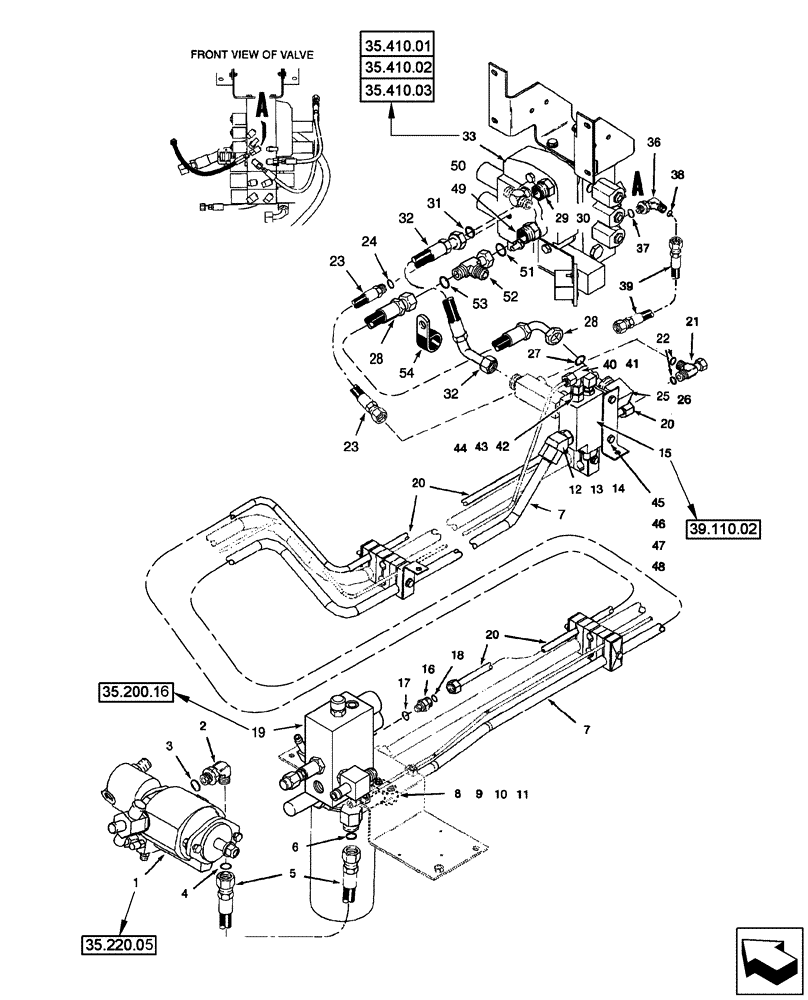

Запчасти Case IH 2577 (35.602.01) - HYDRAULICS - HEADER LIFT VALVE SUPPLY (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
PUMP, HYDRAULIC, Auxiliary
1шт.
Order Component Parts
1шт.
2
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Incl 3, 4
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
5
87338783
FLEXIBLE HOSE,16mm ID x 840mm L
840 mm (33-1/8"), Header Lift Supply
1шт.
6
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
7
124375A2
TUBE
Header Lift Supply
1шт.
8
1541538C1
CLAMP
Two Piece, 3/4" OD Tube
1шт.
9
1541537C1
PLATE
1шт.
10
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
11
231-5344
FLANGE NUT,Flg, 1/4"-20
2шт.
12
201-352
ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB
Incl 13, 14
1шт.
13
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
14
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
15
114851A2
VALVE
Steering
1шт.
16
201-126
HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB
Incl 17, 18
1шт.
17
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
384307A1
SOLENOID VALVE
Pressure Regulator
1шт.
20
126870A1
TUBE
Supply, From Pressure Regulator
1шт.
21
201-416
TEE,13/16"-16 ORFS x 13/16"-16 Sw Run
Incl 22
1шт.
23
128101A1
FLEXIBLE HOSE
690 mm (27-1/4"), Incl 24, Header Lift Valve Regulator Supply
1шт.
24
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
25
201-306
90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB
Incl 26, 27
1шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
27
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
28
400633A1
FLEXIBLE HOSE,16mm ID x 735mm L
735 mm (28-15/16"), Header Lift Valve Supply
1шт.
29
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Incl 30, 31
1-2шт.
30
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
31
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
32
128097A1
HOSE,19.05mm ID x 710mm L
710 mm (28"), Header Lift Valve Return
1шт.
33
124565A3
VALVE, CONTROL
Header Lift
1шт.
33
124566A3
VALVE, CONTROL
Header Lift with Reel Fore and Aft
1шт.
33
124567A3
VALVE, CONTROL
Header Lift with Reel Fore and Aft and Field Tracker
1шт.
33
124567A3R
REMAN-HYD VALVE
Header Lift with Reel Fore and Aft and Field Tracker
1шт.
33
124567A3C
CORE-VALVE HYD
Core Return Number
1шт.
36
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
Incl 37, 38
1шт.
37
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
38
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
39
127997A1
FLEXIBLE HOSE
640 mm (25-1/4"), Pump Signal to Header Lift Valve
1шт.
40
201-434
TEE,11/16"-18 ORFS x 11/16"-18 Sw Br
Incl 41
1шт.
41
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
42
128328A1
FITTING
With Orifice Check Valve, Incl 43, 44
1шт.
43
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
44
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
45
124576A1
SUPPORT
1шт.
46
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
2шт.
47
495-11034
WASHER,5/16", SAE
1шт.
48
231-5315
FLANGE NUT,Flg, 5/16"-18
2шт.
49
201-131
HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB
Incl 50, 51
1шт.
50
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
51
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
52
201-433
TEE,1"-14 ORFS x 1"-14 Sw Run
1шт.
53
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
54
515-23254
CLAMP,1", Insul, 3/8" Bolt
Used with Ref 32
1шт.
55
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
1шт.
56
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
Выбрано товаров: 59
