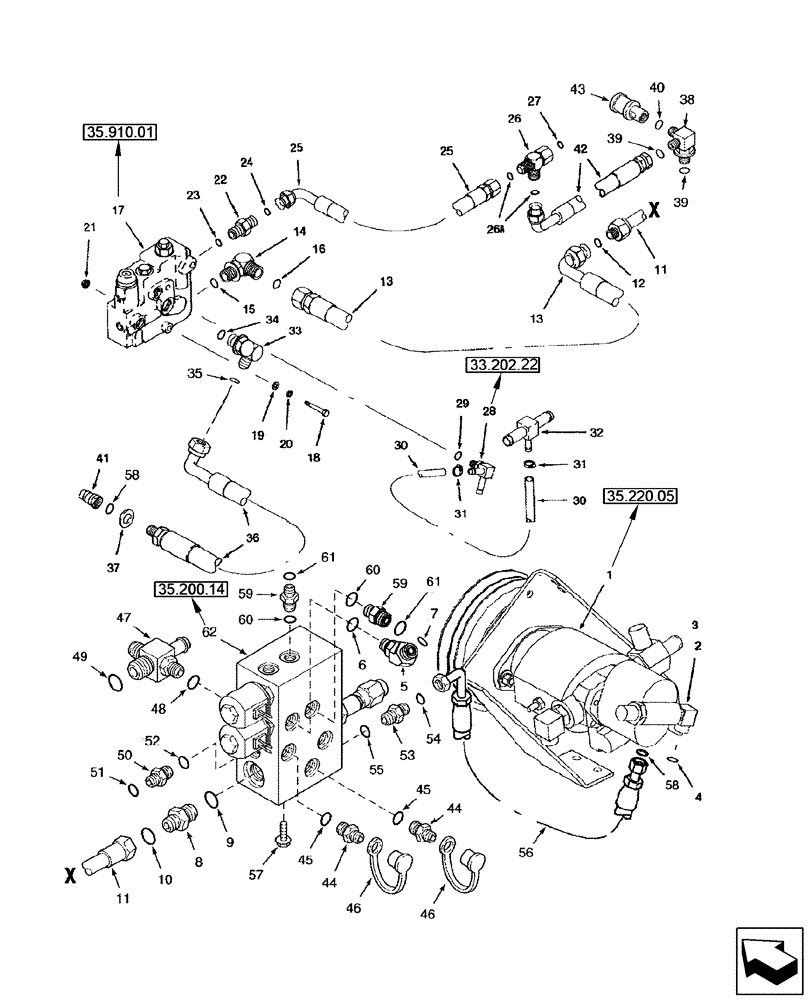

Запчасти Case IH 2577 (35.460.01) - HYDRAULICS - REEL DRIVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
PUMP, HYDRAULIC, Auxiliary
1шт.
Order Component Parts
1шт.
2
201-306
90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB
Incl 3, 4
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
4
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
5
201-315
ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 6, 7
1шт.
7
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
6
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
8
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Incl 9, 10
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
11
124376A1
TUBE
Reel Drive Supply
1шт.
12
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
13
135827A2
FLEXIBLE HOSE
680 mm (26-7/8"), Reel Drive Valve Supply
1шт.
14
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Incl 15, 16
1шт.
15
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
16
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
17
87374793
VALVE
Reel Drive, Control
1шт.
18
413-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
2шт.
19
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
2шт.
20
492-11038
LOCK WASHER,3/8"
2шт.
21
425-106
NUT,3/8"-16, Cl 5
2шт.
22
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Incl 23, 24
1шт.
23
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
24
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
25
128036A1
FLEXIBLE HOSE,19.05mm ID x 640mm L
640 mm (25-1/4"), Reel Drive Valve Return
1шт.
26
201-433
TEE,1"-14 ORFS x 1"-14 Sw Run
Incl 26A
1шт.
26a
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
27
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
28
113896A1
TEE
Incl 29
1шт.
30
128037A2
HYDRAULIC HOSE,9.52 mm ID x 405.00 mm
Reel Drive Valve Case Drain, Cut from S118400X
1шт.
31
214-1706
HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm
2шт.
29
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
32
177975A1
TEE
5/8" x 3/8" x 5/8"
1шт.
33
201-306
90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB
Incl 34, 35
1шт.
34
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
35
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
36
430390A1
FLEXIBLE HOSE
Reel Supply, 3320 mm (130-3/4")
1шт.
37
1345266C1
WASHER
White
1шт.
38
395408A1
TEE
Incl 39, 40
1шт.
39
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
40
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
42
430391A1
FLEXIBLE HOSE
Reel Drive Return, 2455 mm (96-21/32")
1шт.
43
1282338C91
COUPLING, QUICK, FEM
7/8" NF, Self-Sealing
1шт.
44
1541849C1
COUPLING
Diagnostic, Incl 45, 46
2шт.
46
H434163
DUST CAP
1шт.
47
141657A1
TEE
Incl 48, 49
1шт.
45
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
48
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
49
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
50
201-126
HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB
Incl 51, 52
1шт.
53
201-131
HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB
Incl 54, 55
1шт.
54
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
55
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
51
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
56
231735A1
FLEXIBLE HOSE,15.88mm ID x 830mm L
830 mm (32-3/4")
1шт.
57
409-7612
BOLT,3/8"-16 x 1.09" OAL
2шт.
58
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
59
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 60, 61
2шт.
61
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
60
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
62
384307A1
SOLENOID VALVE
1шт.
Выбрано товаров: 64
