Запчасти Case IH 2577 (35.420.01) - HYDRAULICS - REEL LIFT AND FORE/AFT (35) - HYDRAULIC SYSTEMS

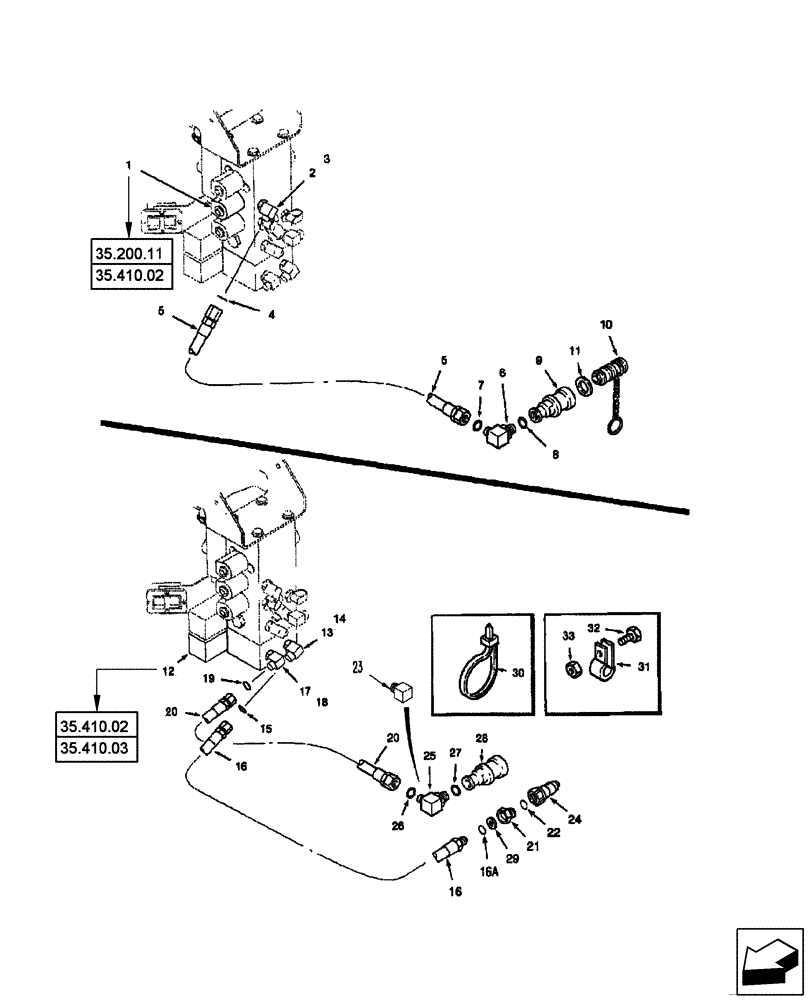

Схема запчастей Case IH 2577 - (35.420.01) - HYDRAULICS - REEL LIFT AND FORE/AFT (35) - HYDRAULIC SYSTEMS
13
11
32
31
2
9
15
7
27
29
19
18
5
16
4
23
20
3
20
10
6
26
35.200.11
35.410.02
25
35.410.03
35.410.02
8
22
16a
24
17
16
33
5
28
1
12
21
14
30

Артикул

Название

Примечание

Количество

1

124566A3

VALVE, CONTROL

Header Lift with Reel Fore and Aft

1шт.

2

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 3, 4

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

430392A1

FLEXIBLE HOSE

2700 mm (106-5/16"), Reel Lift, Incl 7A

1шт.

6

430494A1

ELBOW

90 deg, Incl 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

1282338C91

COUPLING, QUICK, FEM

7/8" NF, Self-Sealing

1шт.

10

1954133C1

PLUG

Incl 11, Coupling

1шт.

11

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

134112A2

VALVE

Field Kit, Reel Fore and Aft, Incl 12 - 33

1шт.

12

131153A2

CONTROL VALVE

Reel Fore and Aft

1шт.

13

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 14, 15

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

430393A1

FLEXIBLE HOSE

3675 mm (144-11/16"), Incl 16A, Reel Aft

1шт.

16a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 18, 19

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

430488A1

FLEXIBLE HOSE

2650 mm (104-11/32"), Incl 20A, Reel Fore

1шт.

20a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

196443A1

REDUCER

7/16" fem x 7/8" Or, Incl 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

1272399C2

QUICK MALE COUPLING

7/8" NF, Self-Sealing

1шт.

25

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 26, 27

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

1282338C91

COUPLING, QUICK, FEM

7/8" NF, Self-Sealing

1шт.

29

1541792C1

WASHER

Red, Special

1шт.

30

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

32

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

Выбрано товаров: 36
