Запчасти Case IH 2577 (35.410.06) - COMBINE HEADER ADAPTER, HOSES AND COUPLINGS (35) - HYDRAULIC SYSTEMS

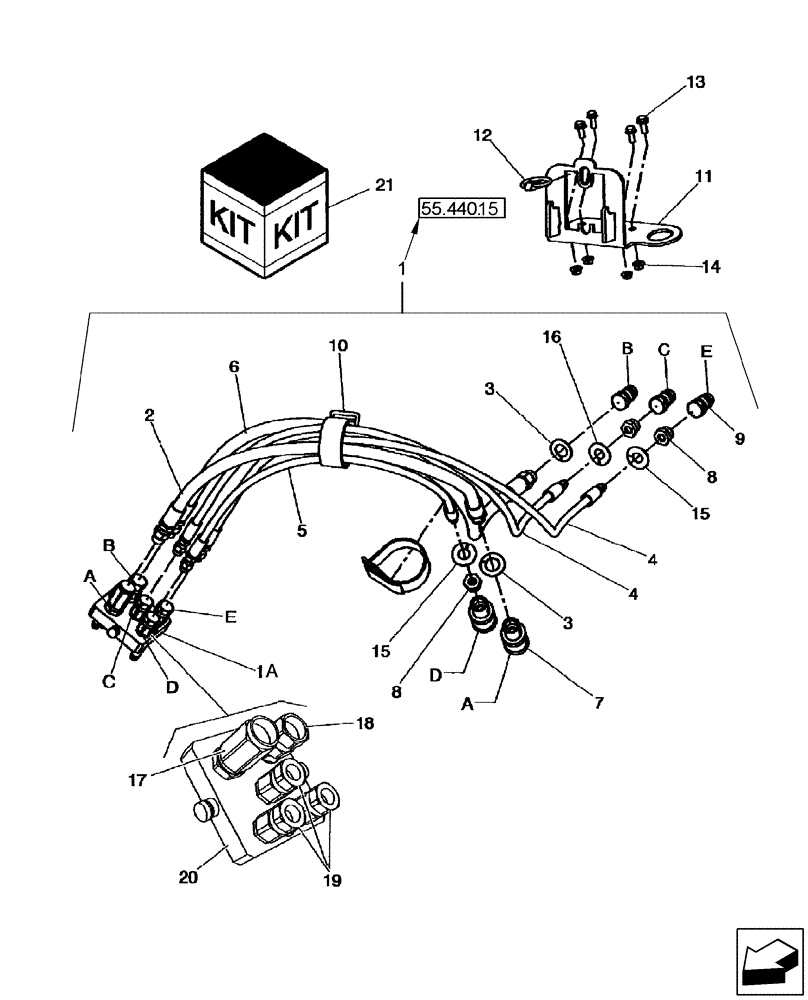

Схема запчастей Case IH 2577 - (35.410.06) - COMBINE HEADER ADAPTER, HOSES AND COUPLINGS (35) - HYDRAULIC SYSTEMS
17
19
1
7
11
14
3
10
8
4
15
21
12
55.440.15
15
3
8
4
1a
16
9
5
2
13
18
20
6

Артикул

Название

Примечание

Количество

1

87340862

DIA KIT, HARVESTER

Hydraulic and Electrical Interface, Incl 1 - 16

1шт.

1a

84435010

QUICK MALE COUPLING

Incl 17 - 21, Serial Range: -HAJ203390

1шт.

1a

87721868

QUICK MALE COUPLING

Incl 17 - 21, Start Serial: HAJ203390

1шт.

2

87301376

FLEXIBLE HOSE

Reel Drive Supply, A Connection

1шт.

3

1345266C1

WASHER

Plastic, White

2шт.

4

87301378

FLEXIBLE HOSE

Reel Lift [C] and Aft [E]

2шт.

5

87301380

FLEXIBLE HOSE

Reel Fore, D Connection

1шт.

6

87301377

FLEXIBLE HOSE

Reel Drive Return, B Connection

1шт.

7

1282338C91

COUPLING, QUICK, FEM

2шт.

8

196443A1

REDUCER

-10 ORB x -4 ORB

3шт.

9

1272399C2

QUICK MALE COUPLING

3шт.

10

87108048

SECURING STRAP

Cinching

2шт.

11

87301385

BRACKET

Header Coupling

1шт.

12

378704A1

LOCK PIN

Klik

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

1541792C1

WASHER

Plastic, Red

2шт.

16

1541804C1

WASHER

Plastic, Black

1шт.

17

84435502

HYD CONNECTOR

1шт.

18

84435503

HYD CONNECTOR

1шт.

19

84435504

HYD CONNECTOR

, Serial Range: -HAJ203390

3шт.

19

87691267

COUPLING

, Start Serial: HAJ203390

3шт.

20

NSS

NOT SOLD SEPARAT

BODY, Quick Coupler

1шт.

21

86623900

REPAIR KIT

Aligning Pins and Bolts, For Ref 1

1шт.

21

86623898

SEAL,1mm OD x 3.2mm Thk

For 17, 18

1шт.

21

86623899

SEAL KIT,13mm OD x 2.5mm Thk

For 19

1шт.

Выбрано товаров: 26
