Запчасти Case IH 2577 (35.410.03) - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER (35) - HYDRAULIC SYSTEMS

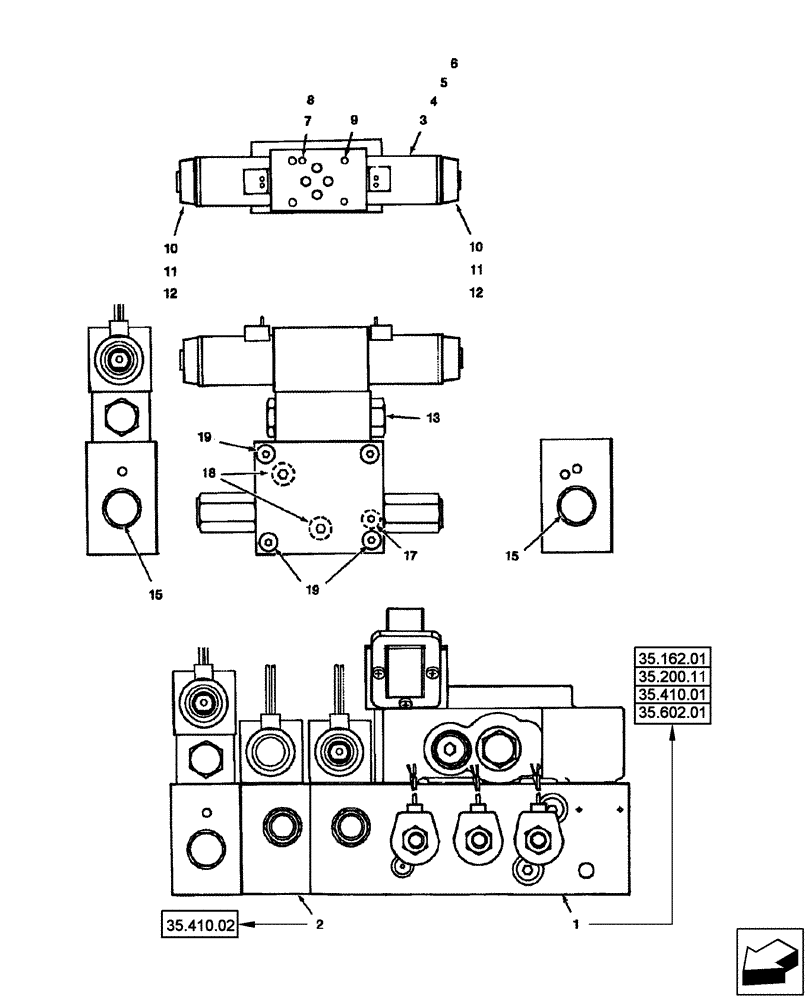

Схема запчастей Case IH 2577 - (35.410.03) - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER (35) - HYDRAULIC SYSTEMS
2
10
5
18
11
19
10
13
12
15
6
15
12
8
4
7
9
1
17
11
3
35.410.02
35.602.01
35.410.01
35.200.11
35.162.01
19

Артикул

Название

Примечание

Количество

124567A3

VALVE, CONTROL

Multi Section, Incl 1 - 20, Header Lift with Reel Fore and Aft and Field Tracker

1шт.

NSS

NOT SOLD SEPARAT

BODY, One Piece Valve, Production Only, Service Body with Complete Valve Assy 124567A3 above, Incl 3 - 20

1шт.

124567A3R

REMAN-HYD VALVE

Reman Multi Section, Incl 1 - 20, Header Lift with Reel Fore and Aft and Field Tracker

1шт.

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

1

124565A3

VALVE, CONTROL

Header Lift

1шт.

2

131153A2

CONTROL VALVE

Reel Fore and Aft

1шт.

114854A1

CONTROL VALVE

Incl 190984A1, Ref 3 - 20, Field Tracker

1шт.

190984A1

VALVE

Incl 3 - 12, 4-Way, 3 Position, Stack

1шт.

3

196736A1

BODY

Solenoid

2шт.

4

196737A1

SPLIT PIN/SAFETY PIN

2шт.

5

196738A1

SPRING

2шт.

6

196739A1

WASHER

2шт.

7

196712A1

PLUG

Orifice 0.035"

1шт.

8

196713A1

PLUG

Orifice 0.043"

1шт.

191120A1

SEAL KIT

Repair, 4-Way, 3 Position Valve (Not Shown)

1шт.

9

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

9

61-31044

HEX SOC SCREW,#10 - 24 x 2 3/4"

4шт.

10

191119A1

SOLENOID

Coil, With Diode, 12 Volt, DC

2шт.

11

188106A1

NUT

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

13

190985A1

VALVE

Incl 14, Double Pilot Operated

1шт.

14

191120A1

SEAL KIT

Repair, Check Valve (Not Shown)

1шт.

15

190986A1

VALVE PRESSURE RELIE,7/8" - 14

Incl 16

2шт.

16

149942C1

SEAL KIT

Relief Valve (Not Shown)

1шт.

17

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

18

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

19

861-10130

HEX SOC SCREW,M10 x 130mm, Cl 12.9

4шт.

20

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

Not Used in this Application (Not Shown)

4шт.

Выбрано товаров: 28
