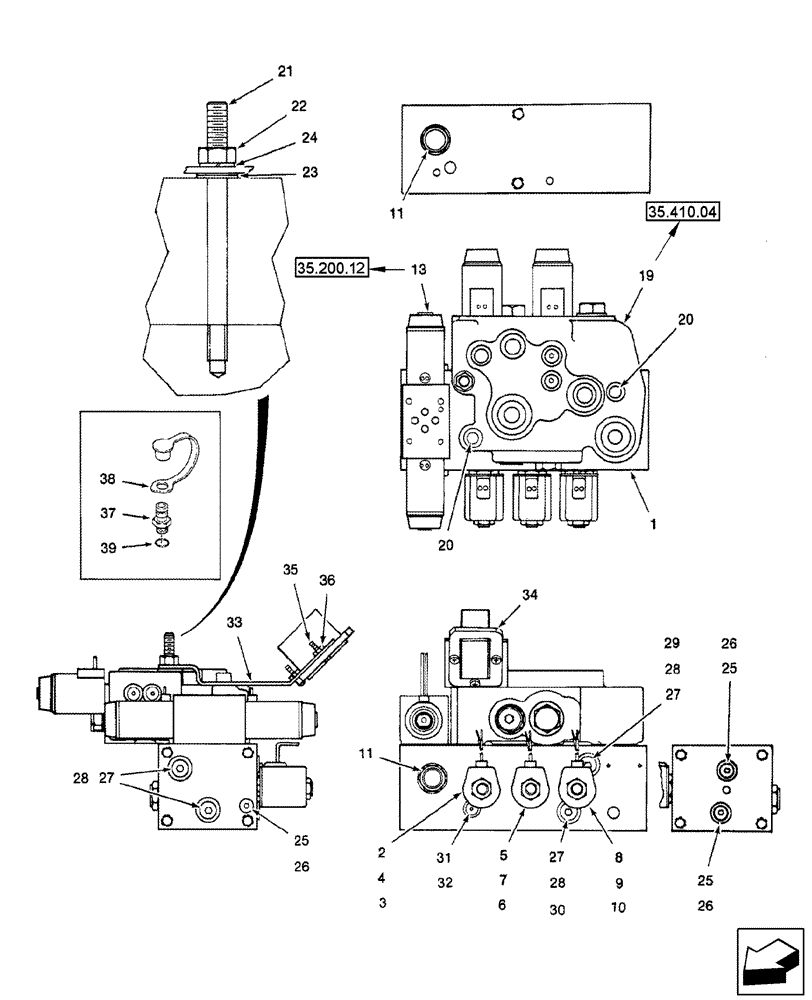

Запчасти Case IH 2577 (35.410.01) - VALVE ASSY - CONTROL - HEADER LIFT VALVE ASSY (35) - HYDRAULIC SYSTEMS

124565A3

VALVE, CONTROL

Header Lift, Incl 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order 124565A3

1шт.

NSS

NOT SOLD SEPARAT

VALVE, SOLENOID, Incl 2 - 4, 2-Way, Sense Line, Order Components

1шт.

2

191121A1

VALVE

2-Way, Cartridge Only, Sense Line

1шт.

3

149942C1

SEAL KIT

1шт.

4

190715A1

SOLENOID

Coil, With Diode and Connector, 12 Volt, DC

1шт.

NSS

NOT SOLD SEPARAT

VALVE, SOLENOID, Incl 5 - 7, 2-Way, Reel Lift, Order Components

1шт.

5

87436627

VALVE

2-Way, Cartridge Only, Reel Lift, Incl 6

1шт.

6

86508168

SEAL KIT

1шт.

7

190715A1

SOLENOID

Coil, With Diode and Connector, 12 Volt, DC

3шт.

NSS

NOT SOLD SEPARAT

VALVE, SOLENOID, Incl 8-10, 3-Way, Reel Lift, Order Components

1шт.

8

190711A1

VALVE

3-Way, Cartridge Only, Reel Lift, Incl 9, 10

1шт.

9

1260872C91

SEAL KIT

1шт.

10

190715A1

SOLENOID

Coil, With Diode and Connector, 12 Volt, DC

1шт.

11

190712A1

VALVE

Incl 12, Single Pilot Operated

2шт.

12

1260872C91

SEAL KIT

Check Valve (Not Shown)

1шт.

13

190717A1

VALVE

4-Way, 3 Position, Stack, Complete

1шт.

14

195683A1

JAM NUT,1/2"-20

Solenoid Coil (Not Shown)

3шт.

19

186572A1

CONTROL VALVE

Header Height, Serial Range: -HAJ301381

1шт.

19

186572A2

CONTROL VALVE

Header Height, Start Serial: HAJ301381

1шт.

20

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.

21

190716A1

STUD

10 x 130 mm

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2-4шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

278548

PLUG,Hex, 7/16"-20 ORB

Incl 26

3шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

27

9625178

PLUG,9/16" - 18 ORB

Incl 28

4шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

190713A1

PLUG

0.914 mm (0.036") dia

1шт.

30

190714A1

PLUG

1.40 mm (0.055") dia

1шт.

31

86632547

PLUG,Hex, 5/16"-24 ORB

Incl 32

1-4шт.

32

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

33

141440A1

SUPPORT

Electrical Connector

1шт.

34

225417C1

ELEC CONNECTOR,Male, 24 Pin, 16 - 18

24 Pin

1шт.

35

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

3шт.

36

832-10404

NUT,M4 x 0.7, Cl 8.8

3шт.

37

1541849C1

COUPLING

Diagnostic, Incl 38, 39, Not Included with Header Lift Valve Assy

2шт.

38

H434163

DUST CAP

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
