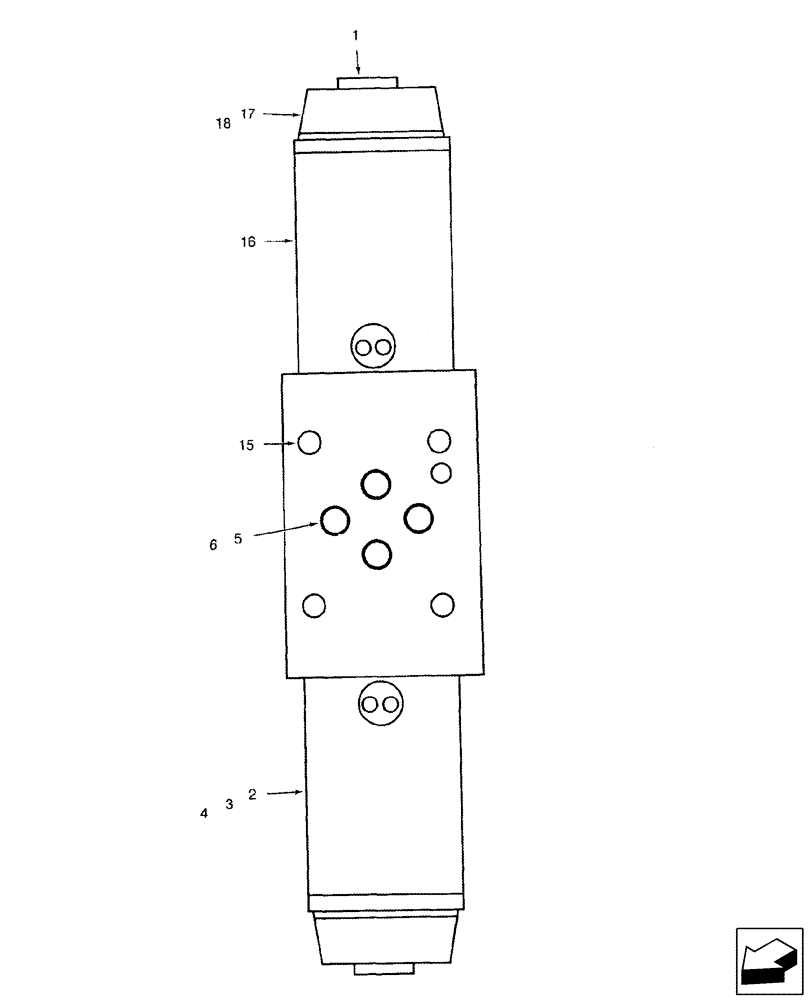

Запчасти Case IH 2577 (35.200.12) - VALVE ASSY - CONTROL - 4-WAY, 3 POSITION (35) - HYDRAULIC SYSTEMS

190717A1

VALVE

4-Way, 3 Position, Stack, Complete, Incl 1 - 18

1шт.

1

196736A1

BODY

Solenoid

2шт.

2

196737A1

SPLIT PIN/SAFETY PIN

2шт.

3

196738A1

SPRING

2шт.

4

196739A1

WASHER

2шт.

5

196710A1

PLUG

Orifice 0.030"

1шт.

6

196711A1

PLUG

Orifice 0.040"

1шт.

191120A1

SEAL KIT

Incl 7 - 12, Order Components (Not Shown)

1шт.

7

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

8шт.

8

514098

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

2шт.

9

272018

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

2шт.

10

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

11

511029

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

12

87716168

SEAL

2шт.

15

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

16

191119A1

SOLENOID

Coil, With Diode, 12 Volt, DC

2шт.

17

188106A1

NUT

2шт.

18

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.
