Запчасти Case IH 2577 (29.218.01) - HYDROSTATIC PUMP ASSY (29) - HYDROSTATIC DRIVE

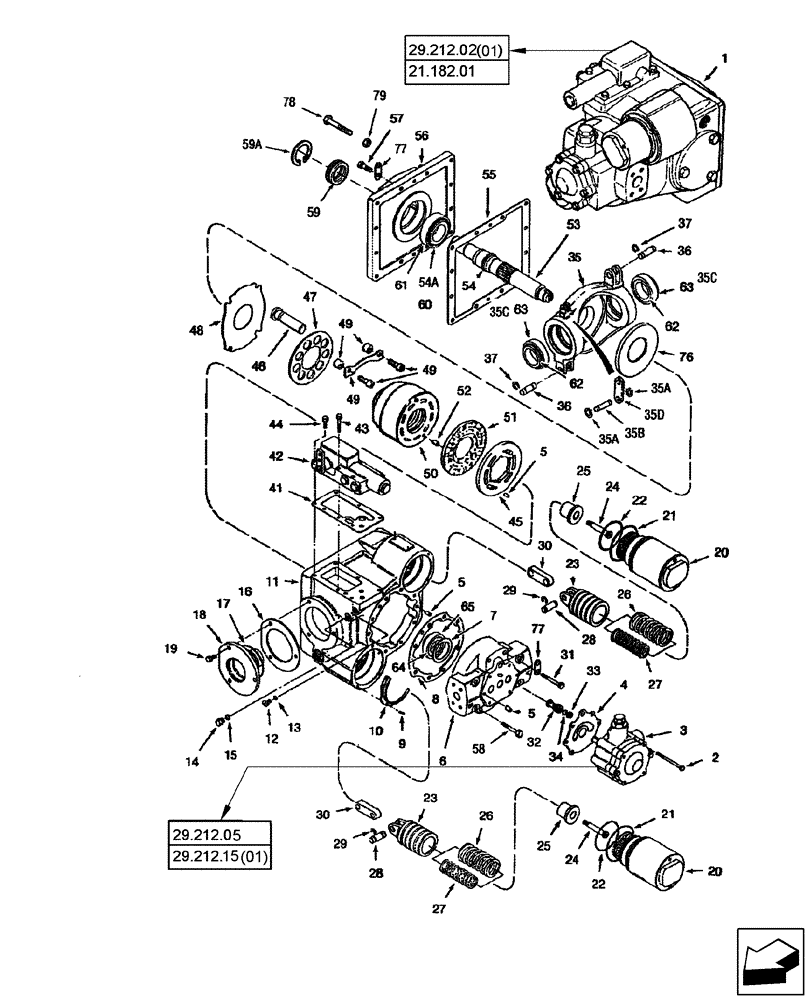

Схема запчастей Case IH 2577 - (29.218.01) - HYDROSTATIC PUMP ASSY (29) - HYDROSTATIC DRIVE
18
76
20
63
8
5
24
20
24
5
49
59a
45
28
79
60
23
2
59
58
12
7
6
16
49
56
65
35b
29.212.15(01)
29.212.02(01)
29.212.05
23
21.182.01
77
17
50
30
29
57
46
35a
43
77
62
54
52
5
34
48
51
15
22
28
22
37
64
41
21
47
62
35d
25
35c
13
37
31
35
14
35c
9
30
29
26
63
11
54a
25
1
55
49
36
61
19
36
21
27
4
53
33
27
32
26
3
10
42
44
78
35a

Артикул

Название

Примечание

Количество

1

400478A1

HYDROSTATIC PUMP

105.4 cc, Incl 2 - 79, Serial Range: -HAJ303001

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2577, ASN HAJ0300001 (10/06-), Serial Range: -HAJ303001. Reman for New P/N 400478A1

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

1

87637528

HYDROSTATIC PUMP,105.4 CC

Incl 2 - 79, Start Serial: HAJ303001

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2577, ASN HAJ0300001 (10/06-), Start Serial: HAJ303001, Start Serial: HAJ303001

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Part Number, Start Serial: HAJ303001

1шт.

2

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

4шт.

3

92740C2

PUMP

Charge

1шт.

4

133760C2

GASKET

1шт.

5

37-1510

DOWEL,5/16" x 5/8"

5шт.

6

NSS

NOT SOLD SEPARAT

COVER, End Cover

1шт.

142398C91

SHIM KIT

End Cover, Incl 7

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.003"

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.005"

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.010"

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.015"

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.020"

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.030"

1шт.

8

92741C2

GASKET,0.38mm Thk

1шт.

9

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

10

142408C1

RETAINER

Servo Piston

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING, Pump

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

142386C91

SHIM KIT

Trunnion Bearing, Incl 16

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.002"

6шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.005"

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.010"

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.015"

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.025"

4шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

TRUNNION, Pump

2шт.

19

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

6шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE Assy, Servo

2шт.

21

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

22

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON Assy, Servo

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW

1шт.

25

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING

1шт.

28

NSS

NOT SOLD SEPARAT

PIN

1шт.

29

100-1375

SNAP RING,#75, Ext

2шт.

30

NSS

NOT SOLD SEPARAT

LINK

1шт.

31

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

32

140769C1

CHECK VALVE

Incl 33, 34

2шт.

33

140770C1

RING

1шт.

34

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE, Swash

1шт.

35a

100-1125

SNAP RING,#25, Ext

2шт.

35b

140765C1

PIN

1шт.

35c

NSS

NOT SOLD SEPARAT

BEARING, CUP

2шт.

35d

NSS

NOT SOLD SEPARAT

LINK

1шт.

36

140766C1

PIN,14.22mm OD x 39.12mm L

2шт.

37

100-1356

SNAP RING,#56, Ext

4шт.

41

133756C1

GASKET

1шт.

42

191065A1

CONTROL VALVE

1шт.

43

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

45

NSS

NOT SOLD SEPARAT

PLATE, Valve

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON

9шт.

47

NSS

NOT SOLD SEPARAT

PLATE

1шт.

48

NSS

NOT SOLD SEPARAT

PLATE

1шт.

49

NSS

NOT SOLD SEPARAT

KIT

1шт.

50

NSS

NOT SOLD SEPARAT

BARREL

1шт.

51

NSS

NOT SOLD SEPARAT

PLATE

1шт.

52

37-1510

DOWEL,5/16" x 5/8"

7шт.

53

403149A1

SHAFT

Incl 54, 54A

1шт.

54

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

54a

NSS

NOT SOLD SEPARAT

BEARING, CONE

1шт.

55

142399C1

GASKET

1шт.

56

NSS

NOT SOLD SEPARAT

FLANGE, Mounting

1шт.

57

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

58

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

59

403145A1

SEAL

Shaft

1шт.

59a

100-21250

SNAP RING,2.50", Int, #250

1шт.

60

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

61

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

62

NSS

NOT SOLD SEPARAT

BEARING, CONE

2шт.

63

NSS

NOT SOLD SEPARAT

BEARING, CUP

2шт.

64

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID

1шт.

65

530741R1

BEARING CUP

2-17/32" OD

1шт.

76

NSS

NOT SOLD SEPARAT

PLATE, Thrust

1шт.

77

NSS

NOT SOLD SEPARAT

STRAP, Shipping, Shown for Reference Only

2шт.

78

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

79

86544265

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

80

87678486

SEAL KIT

Kit (Not Shown), Start Serial: HAJ303001

1шт.

Выбрано товаров: 89
