Запчасти Case IH 2577 (29.212.16[02]) - CONTROL VALVE - MOTOR ASSY - HYDROSTATIC - TWO SPEED (29) - HYDROSTATIC DRIVE

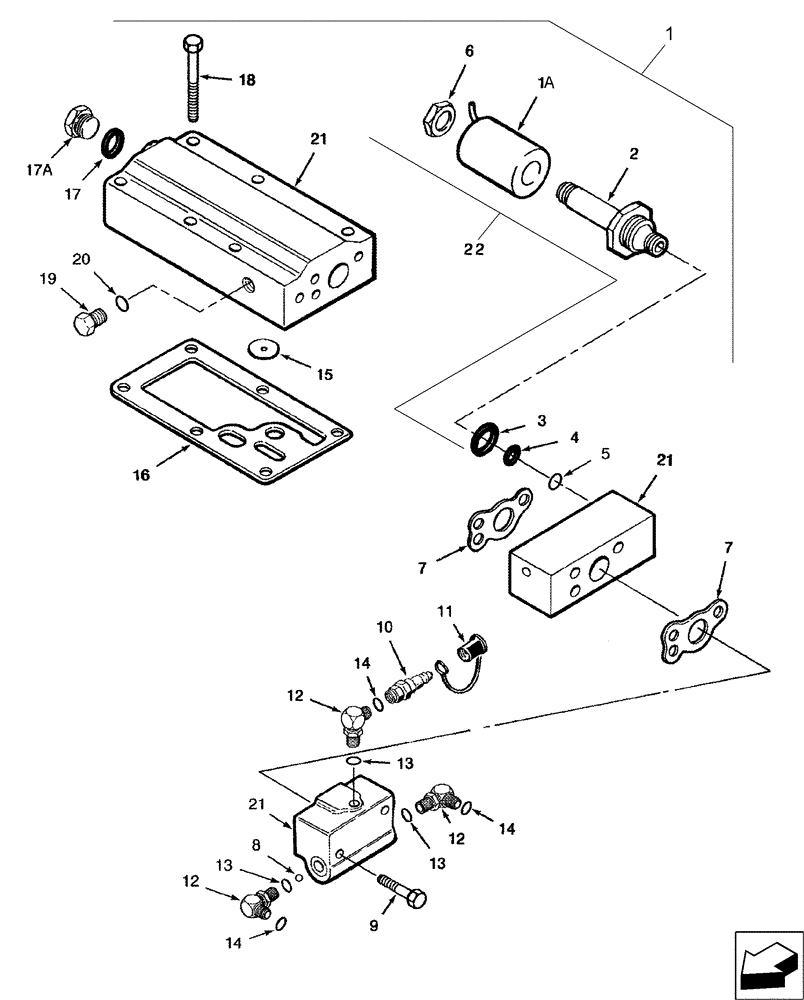

Схема запчастей Case IH 2577 - (29.212.16[02]) - CONTROL VALVE - MOTOR ASSY - HYDROSTATIC - TWO SPEED (29) - HYDROSTATIC DRIVE
14
12
2
7
17
7
4
14
22
17a
12
14
1a
6
18
13
21
10
11
15
16
21
13
8
21
20
13
12
5
3
19
1
9

Артикул

Название

Примечание

Количество

1

255825A1

REPAIR KIT

Valve, Control, Incl 1 - 21

1шт.

1a

230594A1

SOLENOID

1шт.

2

255834A1

CARTRIDGE

1шт.

1542831C1

SEAL KIT

Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING, BACKUP

1шт.

6

298986A1

NUT

1/2 NF

1шт.

92649C1

KIT

Incl 7 - 9

1шт.

7

1272954C1

GASKET,0.43mm Thk

2шт.

8

211-1012

BALL,3/8" Dia

1шт.

9

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

2шт.

10

190117A1

COUPLING

Diagnostic, Incl 11

1шт.

11

H434163

DUST CAP

1шт.

12

413432A1

ELBOW

9/16" FC x 7/16" Or, Incl 13, 14

3шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

255843A1

PORT

1шт.

16

145337C1

GASKET

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17a

NSS

NOT SOLD SEPARAT

CAP

1шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

19

9672438

PLUG,7/16" - 20 ORB

Incl 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

BODY

1шт.

22

244387A1

VALVE

Incl 1 - 6

1шт.

Выбрано товаров: 26
