Запчасти Case IH 2577 (29.212.02[01]) - HYDROSTATICS - PUMP AND MOTOR - TWO SPEED MOTOR (29) - HYDROSTATIC DRIVE

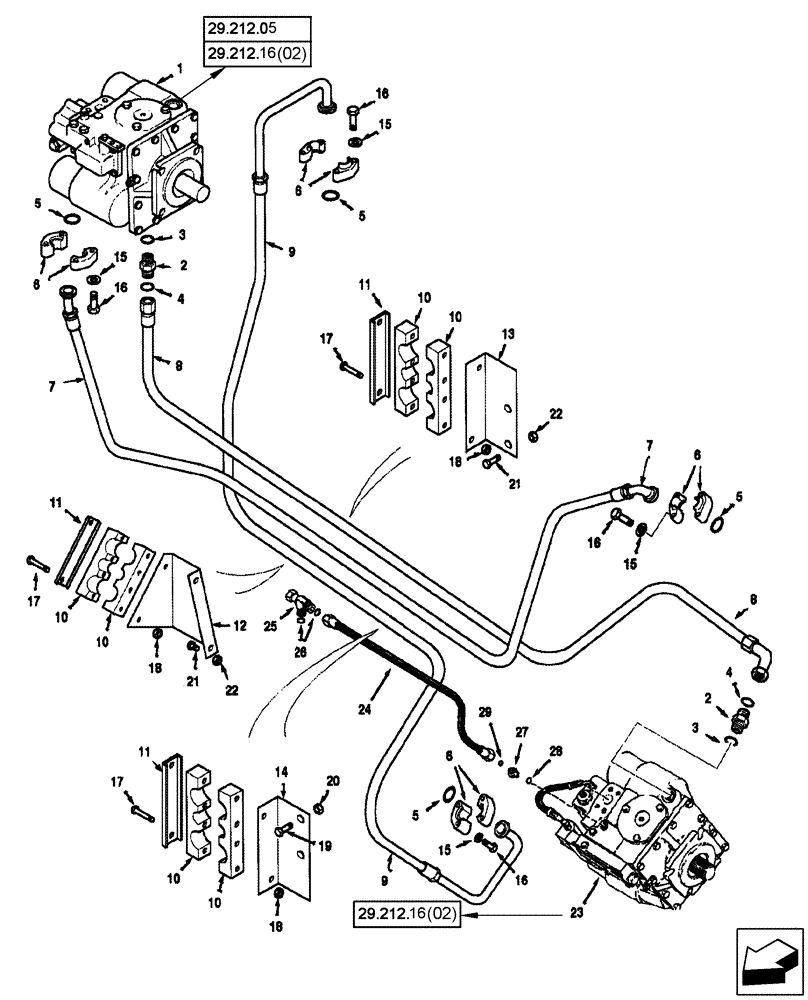

Схема запчастей Case IH 2577 - (29.212.02[01]) - HYDROSTATICS - PUMP AND MOTOR - TWO SPEED MOTOR (29) - HYDROSTATIC DRIVE
27
17
11
21
28
23
6
29
6
15
15
14
29.212.05
29.212.16(02)
29.212.16(02)
20
6
17
7
5
1
18
22
24
3
4
10
11
11
12
4
15
18
26
10
10
3
9
8
15
5
22
6
5
9
25
18
13
8
7
10
16
21
10
2
16
16
2
16
17
5
10
19

Артикул

Название

Примечание

Количество

1

400478A1

HYDROSTATIC PUMP

, Serial Range: -HAJ303001

1шт.

87637528R

REMAN-HYDROSTAT PUMP

2577, ASN HAJ0300001 (10/06-), Serial Range: -HAJ303001. Reman for New P/N 400478A1

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

87637528

HYDROSTATIC PUMP,105.4 CC

, Start Serial: HAJ303001

1шт.

87637528R

REMAN-HYDROSTAT PUMP

2577, ASN HAJ0300001 (10/06-), Start Serial: HAJ303001

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

1", Split Flange

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

3455 mm (136"), Forward, Serial Range: Pump-Motor

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

3705 mm (145-7/8"), Drain, Serial Range: Pump-Motor

1шт.

9

227641A2

HOSE

4055 mm (159-5/8"), Reverse, Serial Range: Pump-Motor

1шт.

10

221145A1

CLAMP

Two Piece

3шт.

11

224303A1

GUIDE

1-5/16" ID x 1/8" wide, Clamp Backup

3шт.

12

1979941C1

SUPPORT

Hydrostatic Tube, Rear

1шт.

13

224302A2

SUPPORT

Hose Clamp, Middle

1шт.

14

224301A2

SUPPORT

Hose Clamp, Front

1шт.

15

492-11044

LOCK WASHER,7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.

23

400476A2

HYDROSTATIC MOTOR

1шт.

400476A2R

REMAN-HYD MOTOR,89.13 CC

2577 ASN HAJ0300001 (10/06-)

1шт.

400476A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

24

129188A1

HOSE,6.35mm ID x 1050mm L

1170 mm (46-1/8")

1шт.

25

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl 28, 29

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (Not Shown)

6шт.

Выбрано товаров: 37
