Запчасти Case IH 2577 (29.204.04) - HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING (29) - HYDROSTATIC DRIVE

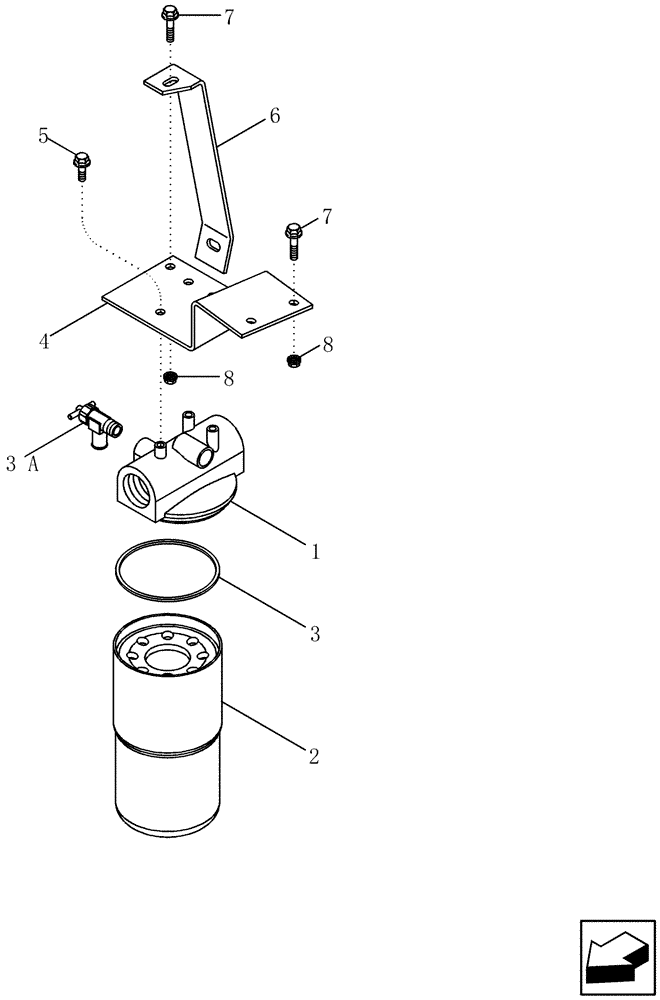

Схема запчастей Case IH 2577 - (29.204.04) - HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING (29) - HYDROSTATIC DRIVE
5
6
4
8
2
1
7
7
3a
8
3

Артикул

Название

Примечание

Количество

87784C92

HYDRAULIC OIL FILTER

Incl 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD, Order 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

Order Kit 1329214C1

1шт.

Note: Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

Order Kit 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

1шт.

4

444454A1

BRACKET

1шт.

5

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

4шт.

6

444455A1

STRAP

1шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

1329214C1

HYDRAULIC OIL FILTER

Incl Two Elements and Four Seals

1шт.

Note: Both elements must be changed at the same time.

1шт.

Выбрано товаров: 13
